COE Press Equipment New ServoMaster Touch™ Controls

Easy-to-use touchscreen interface with enhanced capability

Production Resources principal for heavy duty coil handling and feeding equipment, Coe Press Equipment, has introduced a new touch screen user interface for their servo feeds. This new interface is available on new feeds and as a retrofit. It is easier to use and provides increased functionality. Operators can quickly and easily set feed length, feed speed, and feed angle. Further it’s compatible with our Wintriss Controls SFI products to allow users a single point of entry for most press setups.


COE Press Equipment New ServoMaster Touch™ Controls

COE Press Equipment New ServoMaster Touch™ Controls

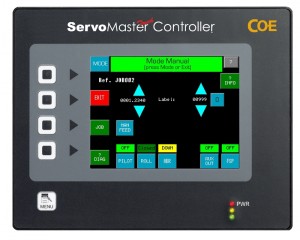

Sterling Heights, Mich., Aug. XX, 2011 – COE Press Equipment has announced its ServoMaster Touch™, its next generation controller featuring a user-friendly 5.7” VGA color touchscreen interface with customizable operator screens. New features of this controller include streamlined entry of machine set-up information and enhancements to the operator prompts, machine diagnostics, and serial communications to the press controls – all which contribute to easier use and faster setup.

Additional capabilities include production data reporting of feed cycles and material usage, and downloading of set-up data or job number selection. Its multi-axis capabilities include push-pull, zig-zag and tailout configurations. Auxiliary functions achievable through its Servo Feed Automation feature include motorized and encoded passline height control, tailout feed position, table position extension and edge guides, as well as feed roll pressure control.

Other features of the new ServoMaster Touch controller include:

  • Batch counter to 999,999 cycles with output
  • Remote job with hand-held pendant for threading
  • Continuous jog or jog-to position for threading
  • Downloading of set-up data or job number selection
  • "Feed Advisor" feature to optimize feed parameters
  • "On the Fly" feed length micro adjustment
  • 500-job memory storage
  • Inch or metric programming
  • Serial communications capability
  • Password protected job editing and parameters
  • English or Spanish language

The new ServoMaster Touch will be the standard on COE servo feed equipment and is also available for existing equipment upgrade and retrofit. COE Press Equipment designs and manufactures a complete line of premiere coil handling and servo roll feed equipment from stand-alone roll feeds, straighteners, reels, cradles and air feeds to complete integrated feed line systems including the heaviest and widest coil feeding systems available for the metal stamping industry today. The company supplies and services a wide variety of global markets and industries including automotive, appliance, lighting, metal processing, housewares, lawn and garden, contract stampers, tool and die builders, and many others.
