Dorner Introduces New 3200 Series iDrive Belted Conveyor

Production Resources Team
February 28, 2011

Our principal supplier of low profile conveyors has introduced a new model of their integrated drive conveyor with widths from 6” – 24” and lengths from 3’ – 12’

3200 Series iDrive Belted Conveyor

This space saving conveyor features an integral motor and drive and comes ready to run out of the box. It’s an addition of the space saving integrated drive technology started with their 2200 lighter capacity iDrive conveyor.

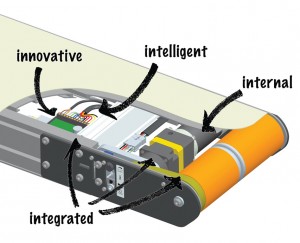

3200 series idrive belted conveyor

3200 Series iDrive Belted Conveyor

iDrive Belt Conveyor Features & Benefits

  • Internally mounted gear motor and control for space savings and tight work spaces
  • Reduced integration time required to mount and wire the total conveyor package
  • Ideal combination of conveyor and gear motor sizing for small parts handling
  • Indexing, variable speed and reversible for maximum application flexibility
  • Control switches conveniently located inside conveyor frame
  • V-guided belts for maintenance-free belt tracking
  • Maintenance-free brushless DC motor
  • Incorporates popular features of 3200 Series
    – Rack and pinion belt tensioning for fast and accurate adjustments
    – Built-in belt tension indicators for preventative maintenance
    – T-Slots for fast and simple mounting of automation components
  • Duty cycle: continuous rated

The iDrive technology represents the latest in conveyor innovation: integrating the motor, gearbox and motor controller all within the frame of the conveyor.

The 3200 Series iDrive conveyor is designed for heavier-duty industrial and automation applications. Its features a robust anodized aluminum frame with integral motor to carry larger loads, at faster speeds and is available in a variety of sizes. The conveyor also comes with indexing capabilities to handle more sophisticated conveying applications.

The 3200 Series iDrive comes with three control options, and is ready to use for quick integration into existing packaging, automation, and processing lines. Side controls allow operators to adjust speed and direction with ease, and an internal brushless DC motor is maintenance free.



Performance specifications of both the 2200 Series iDrive and 3200 Series iDrive conveyors:

2200 iDrive 3200 iDrive
Speed Max. Weight Speed Max. Weight
50 FPM 25 pounds 80 FPM 120 pounds
70 FMP 12 pounds 133 FPM 69 pounds
171 FPM 52 pounds
2200 iDrive 3200 iDrive
Width Length Width Length
3″ – 18″ 18″ – 8′ 6″ – 24″ 3′ – 12′



Both the 2200 and 3200 iDrive are available for fast 5 business day delivery.
Call Production Resources at 800-863-3164 for more information.
