Overview
Southworth DL Series Heavy-Duty Hydraulic Lift Tables lift loads up to 25,000 lb, with raised heights up to 100". Heavy-plate platforms with structural reinforcement minimize deflection, a wide base adds rigidity, and built-in hydraulic overload relief helps protect personnel and structures. For high capacity in less height, Southworth's L Series CAM Lift Tables handle 8,000 to 30,000 lb.
Key Features
- Capacities up to 25,000 lb

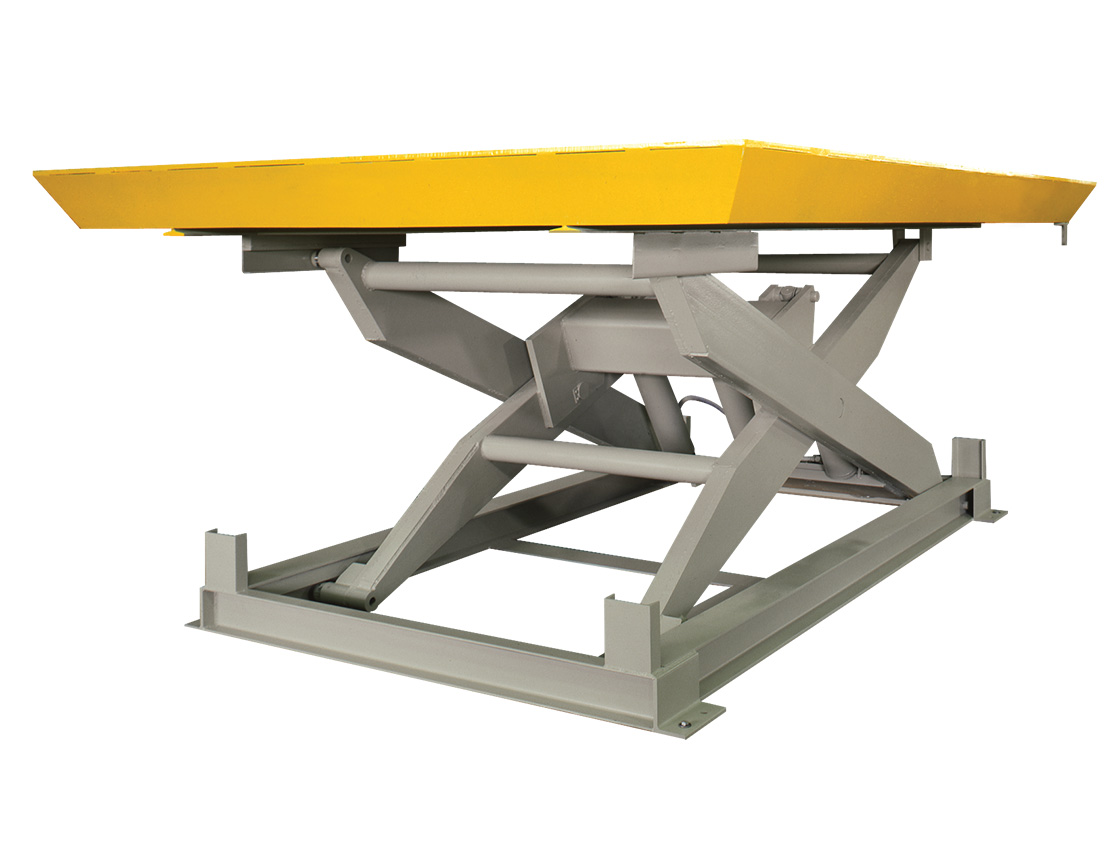

- DL Series models are rated from 4,000 to 25,000 lb, with 36" to 84" of vertical travel and raised heights up to 100".
- Heavy-plate platforms
- 3/8" or 1/2" top plates with structural reinforcement minimize deflection. Standard platforms run from 47" x 76" to 72" x 144".
- Hydraulic overload relief
- Built-in overload relief helps protect personnel and structures, and the wide base adds rigidity and stability.

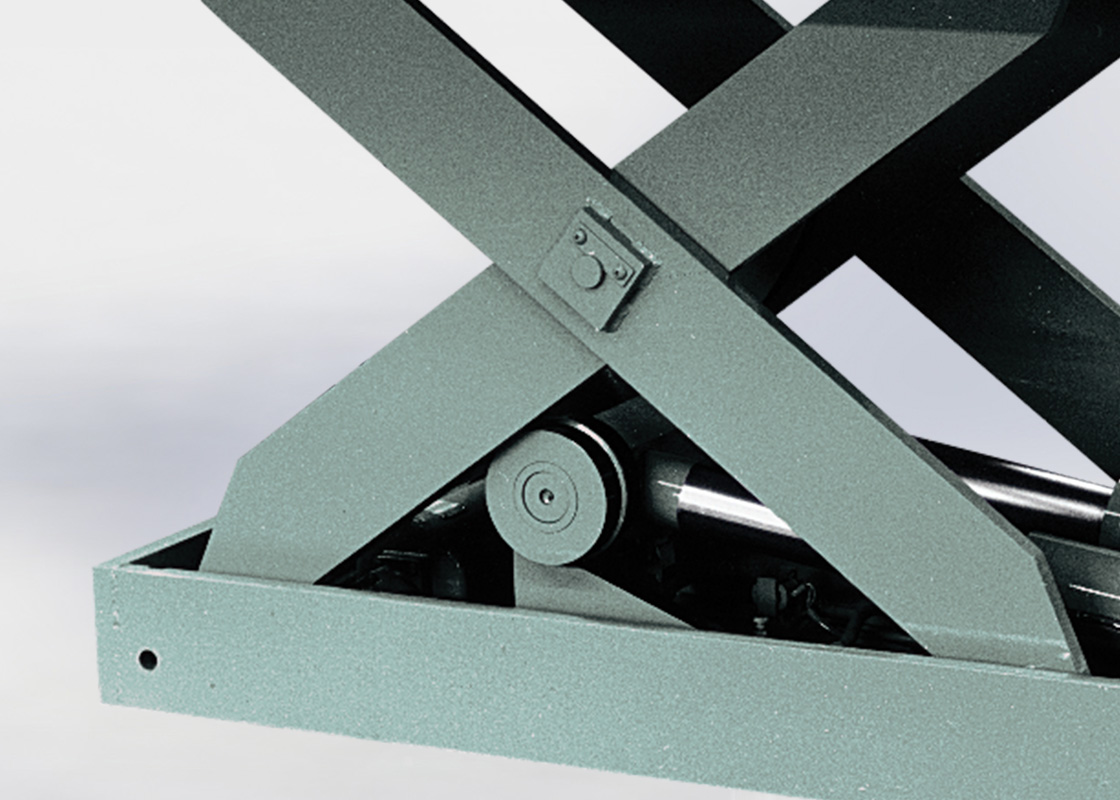

- Low-pressure hydraulics
- Oversize, low-pressure cylinders with chrome-plated rods, and hoses with burst strength 600% greater than operating pressure. A safety chock prevents accidental lowering during maintenance.
- L Series CAM lifts for low clearance

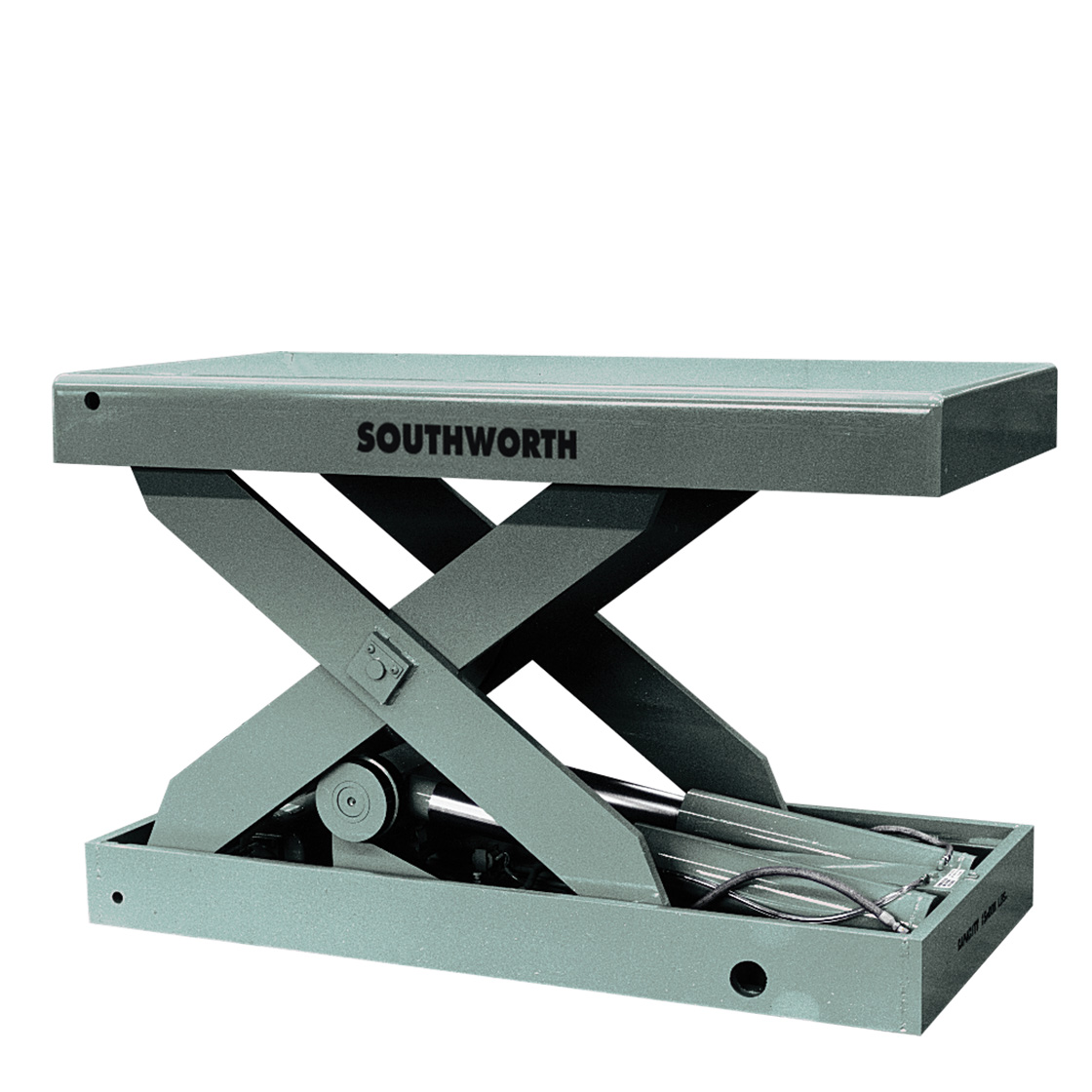

- The CAM design reaches 8,000 to 30,000 lb with lowered heights of 7-5/8" to 11-1/4" and platforms up to 72" x 96".
- 460V three-phase standard
- 3.2 HP power units at 460/3/60 are standard. 1 HP single-phase units are available, with rise time increased by a factor of 3.3.
Product Line / Models
Southworth heavy-duty and CAM lift table models:
- DL20-36 – 20,000 lb, 36" travel, 16" lowered to 52" raised, 60" x 76" standard platform.
- DL10-48, DL15-48, DL25-48 – 10,000 to 25,000 lb, 48" travel, raised heights of 61-1/4" to 64".
- DL10-60, DL12-60, DL16-60, DL20-60, DL25-60 – 10,000 to 25,000 lb, 60" travel, raised heights of 76" to 86".
- DL20-72 – 20,000 lb, 72" travel, 22" lowered to 94" raised, 72" x 144" standard platform, up to 108" x 180".
- DL4-84, DL6-84, DL10-84 – 4,000 to 10,000 lb, 84" travel, raised heights of 96" to 100", platforms up to 96" x 156".
- L Series CAM (L8-36 to L30-36) – 8,000 to 30,000 lb, 36" travel, lowered heights of 7-5/8" to 11-1/4", platforms up to 72" x 96".
Applications & Benefits
- Heavy industrial loads: DL Series lifts raise heavy loads to a safe, workable height.
- Cargo handling: Southworth lists cargo handling as a primary use for its DL Series heavy-duty lifts.
- Pit-mounted installations: DL Series lifts can be pit mounted. An increased roll-over capacity option strengthens the table where trucks or transporters cross the lowered platform.
- Low-clearance, high-capacity lifting: L Series CAM lifts carry up to 30,000 lb from a lowered height as low as 7-5/8".
How to Choose the Right Heavy-Duty Lift Table
- Start with the load weight and the platform size you need.
- Set the lowered and raised heights. If lowered height is tight, look at the L Series CAM lifts.
- Pick the vertical travel: 36", 48", 60", 72" or 84" on DL Series models.
- Decide on floor or pit mounting, and whether vehicles will cross the lowered platform.
- Confirm available power. 460/3/60 is standard; single-phase units raise more slowly.
- Note the duty cycle. Southworth offers high-duty-cycle bearing packages and regreasable pivot points.
Why Southworth Heavy-Duty Lift Tables Are Trusted
- Built to ANSI MH29.1: Southworth scissor lifts are designed and manufactured to meet or exceed ANSI MH29.1 Safety Requirements for Industrial Scissors Lifts.
- Rigid under heavy loads: Heavy-plate platforms, structural reinforcement and a wide base keep deflection low.
- Documented service: Southworth publishes service manuals for its lift tables, from preventative maintenance to leg rollers, pumps, down valves and relief settings.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Load weight and footprint
- Lowered and raised heights needed
- Platform size
- Floor or pit mounting, and any vehicle traffic over the platform
- Available power (voltage and phase)
- Cycles per shift
- Contact PRI to discuss specs, lead times, and installation support.
