Belted Magnetic Conveyors

Magnetic Belt Conveyors, produced by MPI, provide effective control of ferrous objects on high-speed horizontal and inclined to vertical conveyor belts. A wide range of styles are available for a variety of belting designs including fabric, tabletop and stainless steel mesh.

Magnetic Belted Conveyors have many design options and can also be supplied with other ancillary components such as feeders, hoppers, etc. to provide a complete material handling system. Magnetic belt conveyor systems will increase your production and profitability.

image of MPI's Magnetic Belted Conveyor configured as a vertical can handling transfer
Magnetic Belted Conveyor configured as a vertical can handling transfer

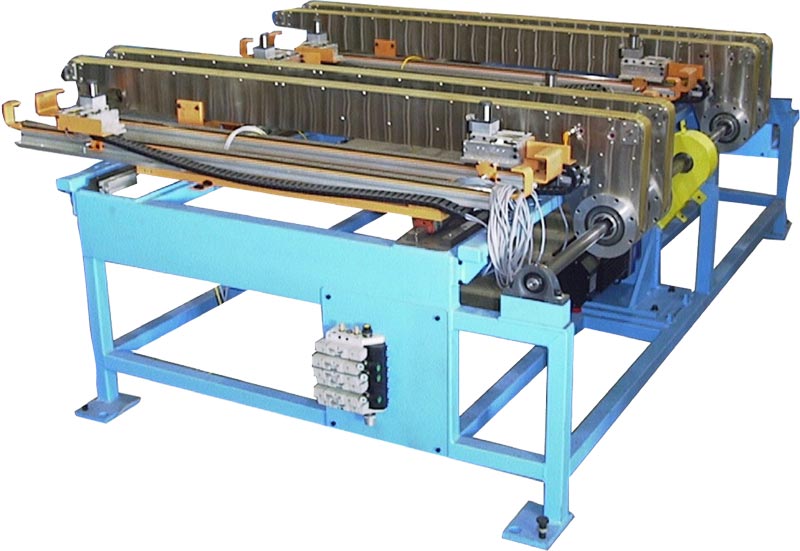

image of MPI's Magnetic Belted Conveyor configured as a Stamped Parts Holding conveyor
Magnetic Belted Conveyor configured as a Stamped Parts Holding conveyor

How Magnetic Belted Conveyors work

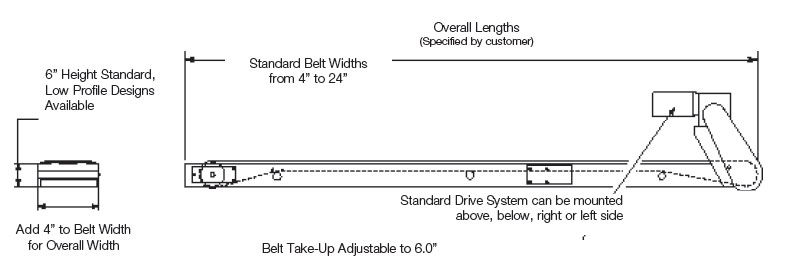

MBC schematic

A permanent or electromagnetic rail located beneath the conveying belt surface attracts the ferrous objects to the belt. This magnetic attraction acts as a clamping force against the belt causing the ferrous objects to move with the belt and able to overcome any angle of incline or decline.

Product Options

  • Low profile designs
  • Ancillary components such as feeders, hoppers etc.
  • Drive motor: fixed speed, variable speed, motorized pulley, direct drive, chain drive
  • Drive motor mounting: top mount, bottom mount, side mount
  • Support legs: none, fixed, adjustable, with or without casters
  • Magnet material: ceramic, rare earth

Specifications

  • Standard belt widths form 4” to 24”
  • 6” Height is considered standard
