Coil Cradles and Coil Cradle/Straightener Combinations

Coil Cradles and Coil Cradle/Straightener Combinations

These machines are ideal for controlling heavy gauge and high tensile coils.  The machines feature heavy duty steel construction, self-centering crank adjustable center plates,  hardened cradle rolls with heavy-duty bearings, and a variety of loop controls.  Many safety and efficiency options are also available.

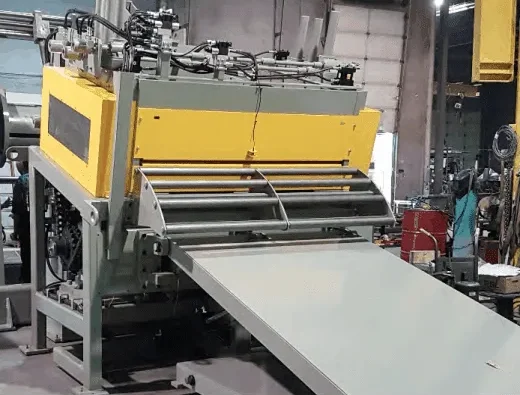

Colt Automation EXTRA HEAVY-DUTY POWERED STRAIGHTENERS for AHSS materials

Model No.

Min Width

Max Width

Counter Balance Entry & Exit Pinch Rolls

Pinch Roll Diam.

Straightener Roll Diam.

Roll Material

RC

Available Configuration

Min Material Thickness

CPSEHIJ3

6″/150mm

84’/2135mm

2

6″/150mm

5’/125mm

52100

60/64

7,9,11

0.020’/.508m

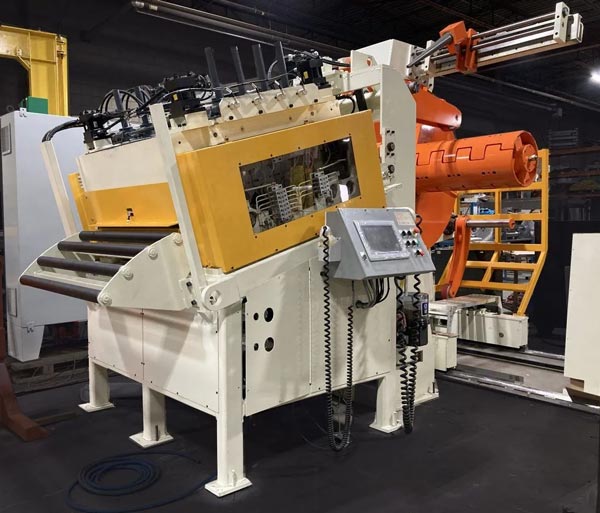

Primo Coil Cradle/Straightener

Colt Automation Coil Cradle/Straighteners are built to give long life at low cost.

Colt Automation Coil Cradle/Straightners are built to give long life at low cost



These Combination Cradle/Straightener units are designed for seamless coil loading. With the optional coil storage rack installed, there is practically no downtime waiting for Coil changeover, maintaining high productivity. Standard features include self-centering, adjustable side plates. Cradle rolls and Straightener rolls are synchronized. Colt’s Cradle Feed Lines are best suited for heavier gauge material and used to handle stock thicker than 0.070″.

Min WidthMax WidthMin WeightMax Weight
12″60″6,000 lbs50.000 lbs

Stand alone cradles and straighteners are also available.



PRE Heavy-Duty Coil Cradle Straightener combinations handle coil widths to 60” and material thickness to .300”. Standard coil weight capacities are 6,000, 10,000, and 20,000 lb.

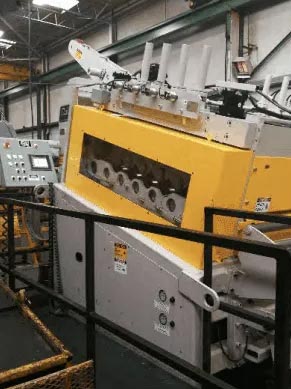

PRE Heavy-Duty Coil Cradle Straightener combination

Heavy-Duty Coil Cradle Straightener combinations handle coil widths to 60” and material thickness to .300”. Standard coil weight capacities are 6,000, 10,000, and 20,000 lb.
