Press Room Equipment Company (PRE) is a Missouri-based manufacturer specializing in press feeding and coil handling equipment. Part of The Bradbury Group, PRE has been delivering industry-leading metal processing equipment for over 40 years. The company utilizes CAD technology for machine design and manufactures all components in-house to ensure quality control.
PRE also owns Norwalk Innovation, known for its pallet decoilers, and Waddington Electronics, which produces roll feeds and stock straighteners with custom controls. The company prides itself on offering innovative solutions and problem-solving expertise in metal processing and automation.
Press Feed Systems

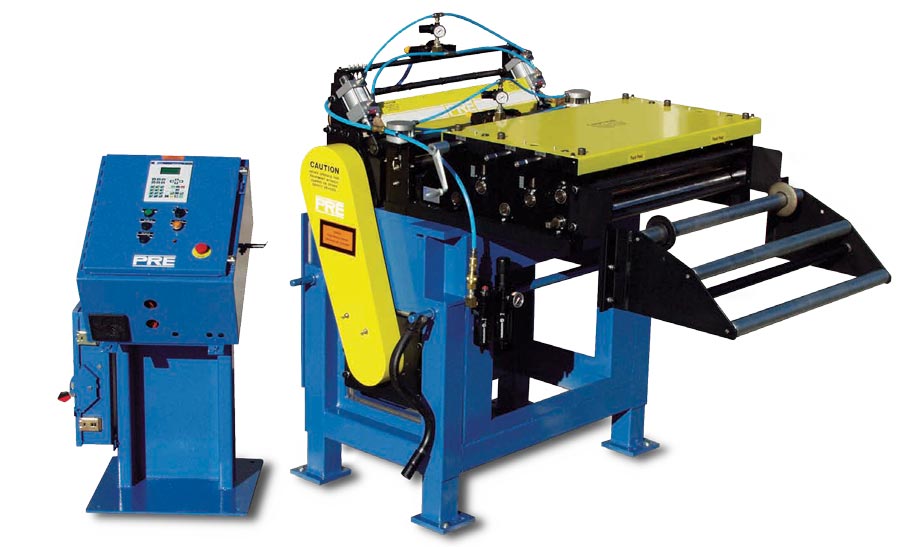

PRE Servo Feeds
Standard Features
25 Standard Models to choose from.
Stock Thickness Capacity to .375 in.
Stock Widths up to 72 in.
Heavy Duty Dowel Pinned and Bolted Construction
Helical Gear Driven Rolls
Non-Stretch Kevlar Belt.
Available in 3.25”, 4.50”, or 5.50” roll diameters.
Pull-Thru Straighteners available.
High Quality Servo Drive Systems.
PRE Servo Feeds
P20 Series Servo Roll Feeds
Standard Features
Industrial sized “small” roll feed.
12 Standard Models to choose from.
Stock Thickness Capacity to .200 in.
Stock Widths up to 36 in.
Heavy Duty Dowel Pinned and Bolted Construction
Helical Gear Driven Rolls
Non-Stretch Kevlar Belt.
Pull-Thru Straighteners available.
High Quality Servo Drive Systems.
Custom Rolls for Feeding Shapes and Extrusions.

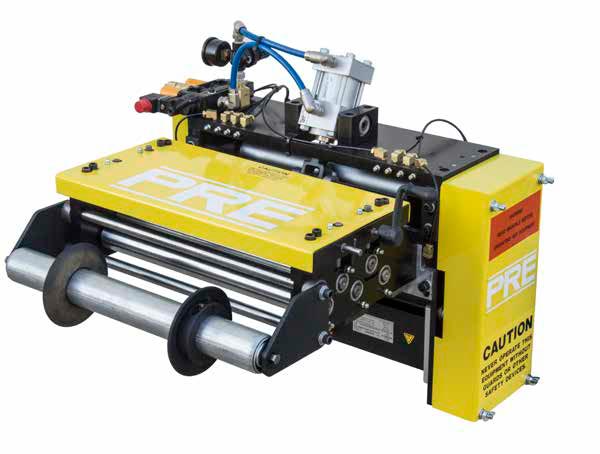

P20 Series Servo Feed
Air Feed Systems
Press Room Equipment makes single gripper, double gripper and bridge gripper style air feeds.
PRE single gripper air feed
Our PRE single gripper air feeds are the most accurate, easy to adjust and fastest performing air feed systems available anywhere.
Standard Features
Over 240 standard sizes to choose from
Handles materials up to 3/8” thick
Crank operated stroke adjustment with digital readout, no-tools required
Standard stoke lengths up to 48”
Press control feed switch
Pilot release circuit
120 volt ceramic operating valves
Longer strokes, special grippers, straighteners and other options are available upon request.

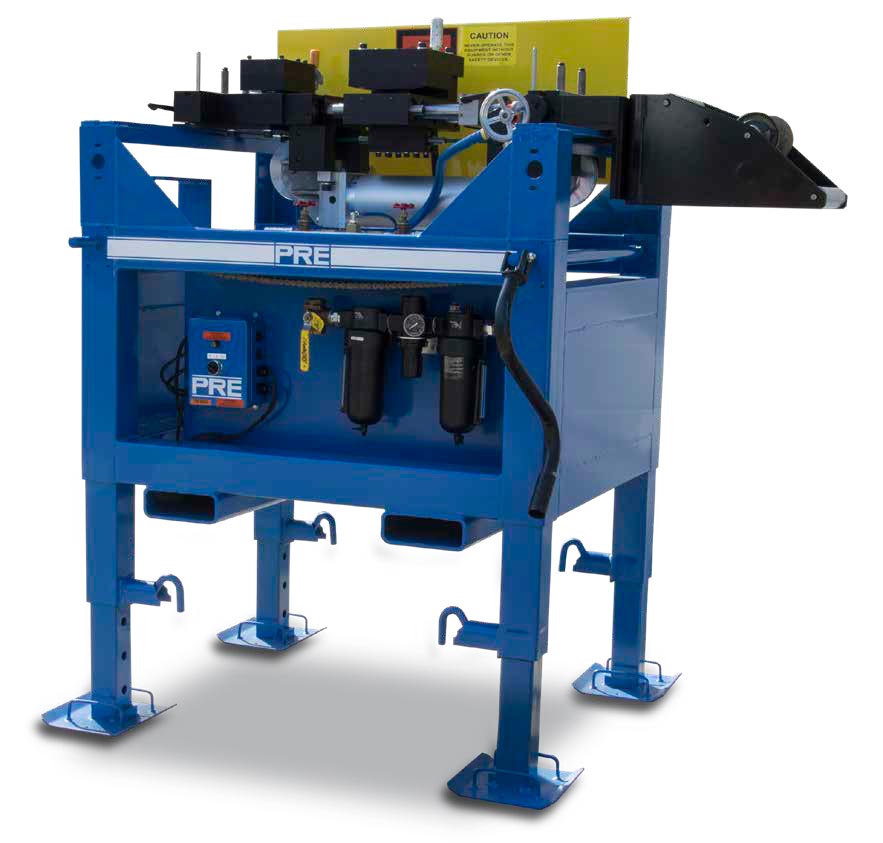

S50-6”x12” with optional adjustable cabinet
Double Gripper Air Feeds
PRE Double Gripper Air Feeds are designed with the material grippers on a common carriage for accurate controlled material feeding. They are especially effective with thin and/or flexible materials that require gripping on both sides for fast smooth and accurate feeding. Crank operated stroke adjustment is a standard feature.

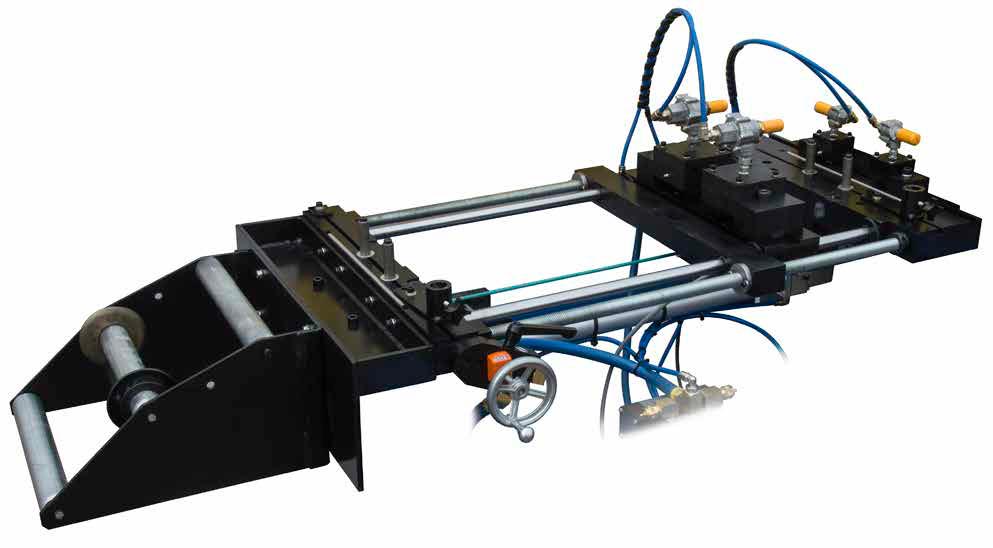

D20-12”x24” Double Gripper Air Feed
Standard Features
Over 100 standard models available
Fastest, most precise, most compact, and easiest to adjust air feed
Standard feed widths 24 to 48 in.
Standard feed lengths 6 to 48 in.
Pull-Thru Straighteners available
Crank operated stroke length adjustment with digital read-out
Pilot release circuit
Dual Hydraulic shock cushion for accuracy and long life
Both grippers on common feed block for precise control and easy width adjustment
Bridge Gripper Feeds
PRE Bridge Gripper Feeds are built with a “bridge” bar or grippers that contact material across its entire width except where the grippers are relieved for upper and lower entrapment (anti-buckling) rails. They are an excellent solution to problems associated with feeding thin, flexible or delicate materials. The large contact area on the material and the even feed force provided by the center line mounted cylinder insures fast and accurate trouble free operation. Crank operated stroke adjustment is a standard feature.
Standard Features
Fast, accurate, and low maintenance
Standard widths are 12 to 24 in.
Standard single stroke feed lengths start at 6”
Pull-Thru Straighteners available
Hydraulic shock cushion for accuracy and long life

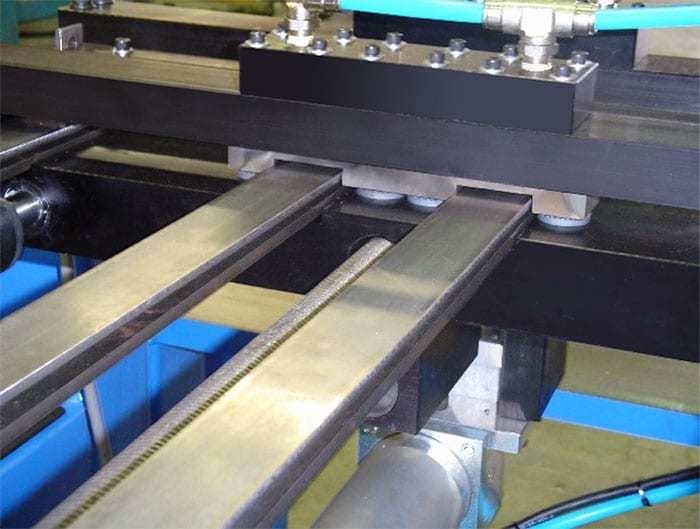

High Speed Air Feed with PRE "Bridge" Bar
B-11 High Speed Air Feed
Our B-11 Series of “Hitch Feeds” answer your needs for a compact air feed that is easy to install, runs faster than all other feeds of this type and does not have over 30 o-rings and other high maintenance components. All B-11 feeds include a 120 volt solenoid operated valve that is externally mounted, instead of complex internal valving. The very effective hydraulic shock absorber decelerates the feed block at each end of the stroke for accuracy to +- .001.
Standard Features
Fast, accurate, low maintenance
Standard width is 4 in.
Standard single stroke feed lengths 2”, Thru Straightener (clam shell style) available
Hydraulic shock cushion for accuracy and long life
External valving with only 3 “O” rings.

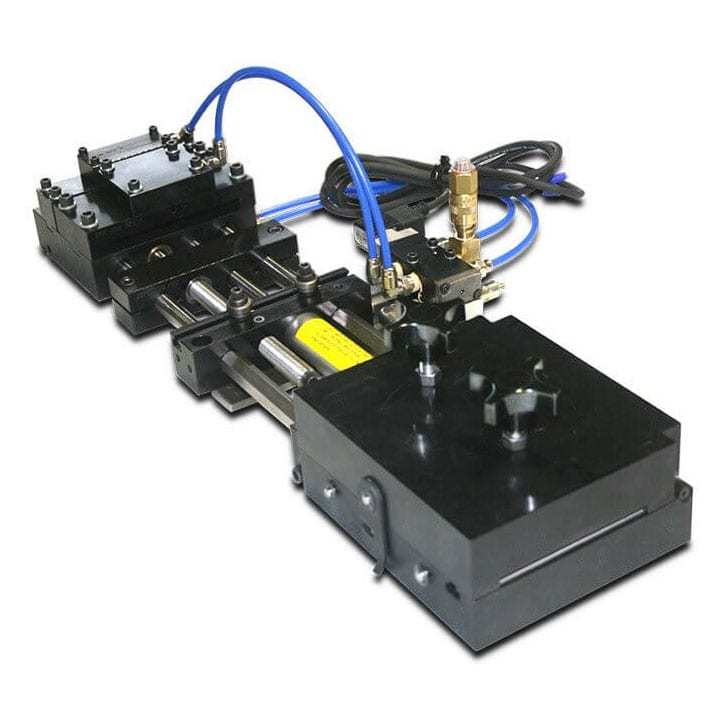

PRE HIgh Speed Air Feed: B-11 Series “Hitch Feeds”
Powered & Pull-Thru Straighteners
Metal straightening is a crucial step in coil processing, ensuring smooth and efficient feeding into production machinery. As metal is manufactured, transported, and rewound, various imperfections such as camber, center buckle, coil set, crossbow, and edge wave can develop, affecting performance and part quality.
Press Room Equipment specializes in powered and pull-through straighteners, offering solutions tailored to different production needs:
Pull-Through Straighteners (Unpowered): These models rely on a feeder to pull the metal through rollers, making them cost-effective and space-saving. However, they may be less effective in maintaining precision.
Powered Straighteners: Equipped with driven rollers that actively move the material, powered models provide greater accuracy and consistency, reducing defects and ensuring smoother processing.
PRE straighteners are designed to remove coil set and other common imperfections, ensuring high-quality metal feed into presses and production lines. While PRE does not manufacture corrective levelers, its straighteners deliver reliable performance for various metal processing applications.

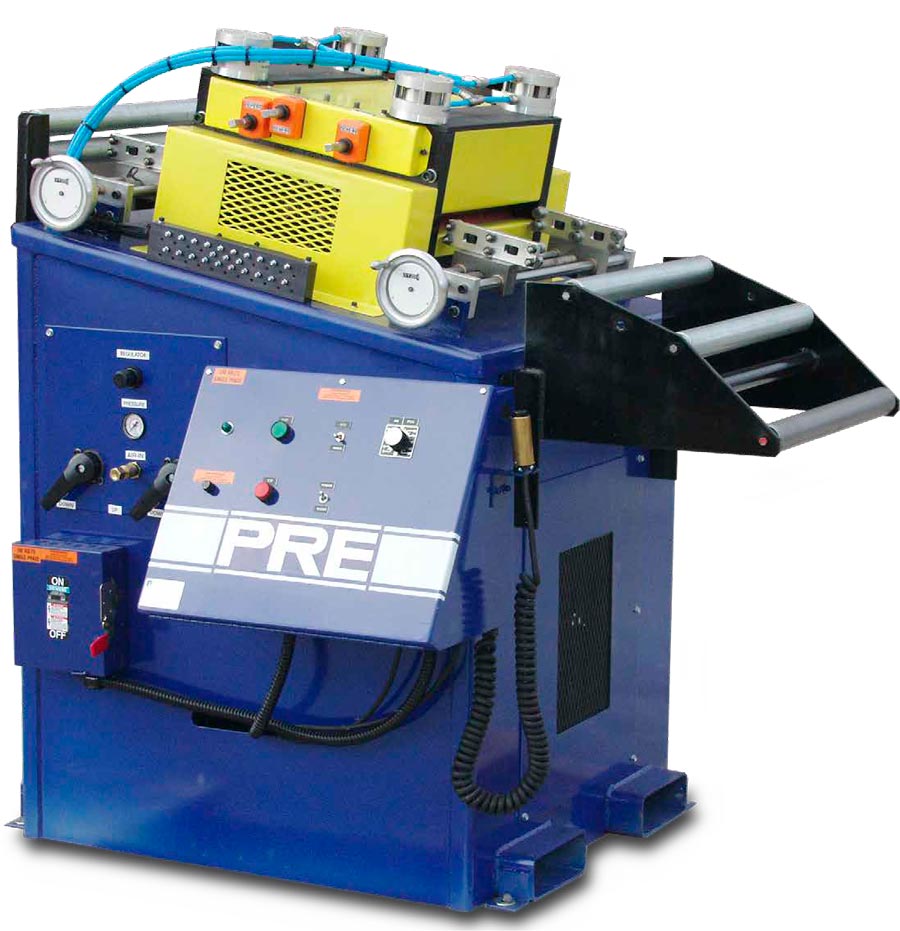

PMS Powered Straighteners
A full range of motorized, variable speed straighteners are designed and built for durability and easy operation.
Press Room Equipment Co.’s heavy duty, pull thru straighteners are available in 1.5”, 2”, 2.5” and 3” diameters. Our straighteners rolls are independently adjustable featuring a highly reliable worm gear and cross shaft arrangement.
Straightening rolls and pinch rolls are hardened and ground 1060 steel with a surface finish in the 12-16 RMS range. They are equipped with machined side plates, heavy duty bearings and hardened stock roller guides.
Pull-Thru Straighteners: Model R1512 shown
Coil Handling Equipment

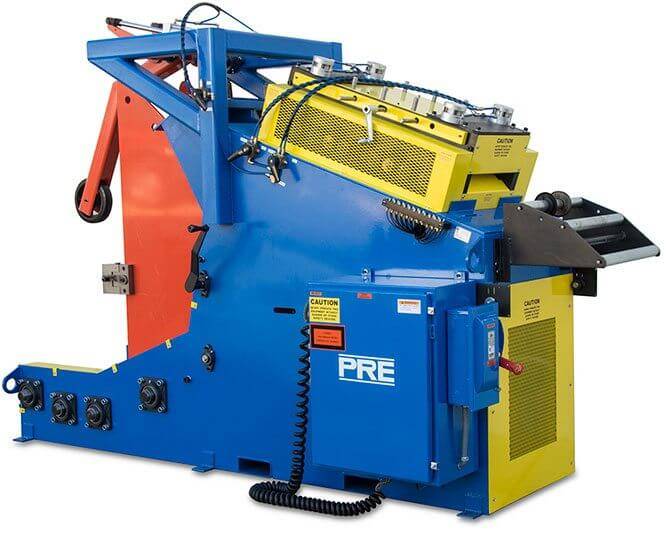

Coil Cradles and Cradle Straightener Combos
PRE Heavy-Duty Coil Cradle Straightener combinations handle coil widths to 60” and material thickness to .300”. Standard coil weight capacities are 6,000, 10,000, and 20,000 lb.
Coil Cradles and Cradle Straightener Combos
Single Arbor Payout Reels
PRE’s product line of Single Arbor Payoff Reels are of the best quality and value available anywhere. With heavy duty construction, powered or non-powered with various control options, they are designed for long term rugged service.
Standard Features
Quick release keeper arms 1500 lb and up
Heavy-duty welded-steel construction
Loop-control arm(on motorized reels)
All motorized reels feature soft start variable speed drive with PRE’s unique potentiometer loop arm speed control. Jog forward/reverse is included and other controls are available to suit customer needs
Manual arbor expansion is standard on reels from 1,500 to 10,000 lb. capacity.
Hydraulic arbor expansion standard on 15,000 lb. and larger reels

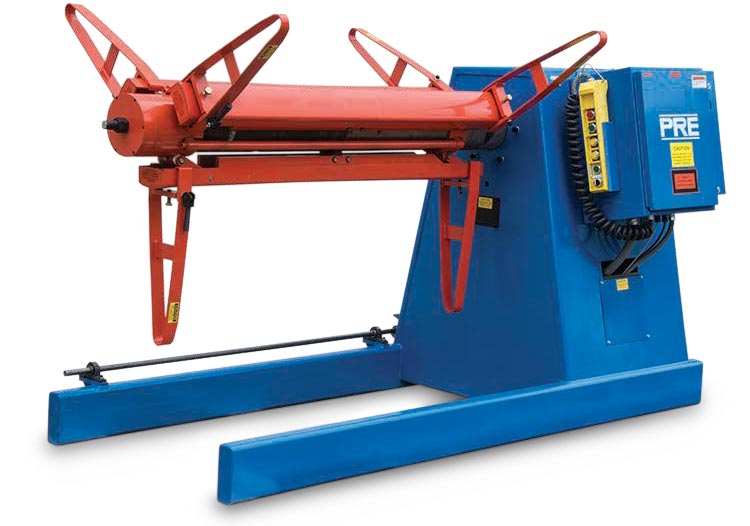

PR-186000-DC Single arbor motorized payout reel
Optional Features
Hold-Down Arms (hydraulic and pneumatic)
Hydraulic Arbor Expansion (standard on 15,000 lb. and larger)
Adjustable Centering Bases
Powered Turrets on Double Reels
Backing Plates (48” to 72”) (standard on larger reels)
Special Arbor Speeds
Special Expansion Ranges
Common Mounting Bases for Reels and Straighteners
Optional Add-ons
Drum Type Arbor Shoes
Remote Pendant Control
110 Volts at Controls
Transformers
Ultra-Sonic Loop Control
Traverse/Oscillated Wound Stock Payoff
Coil Cars, Upenders and other optional equipment available

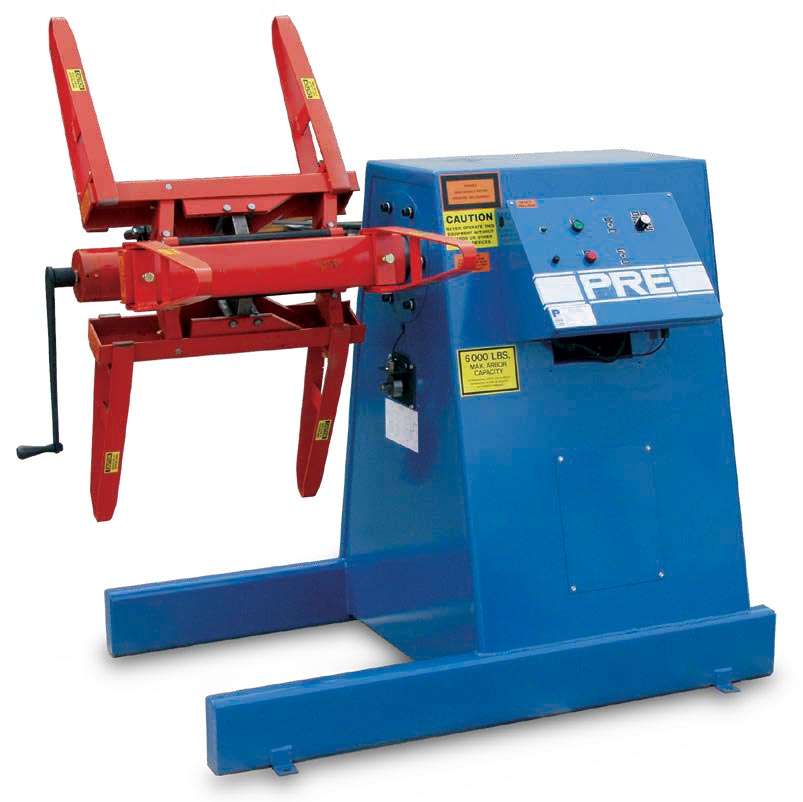

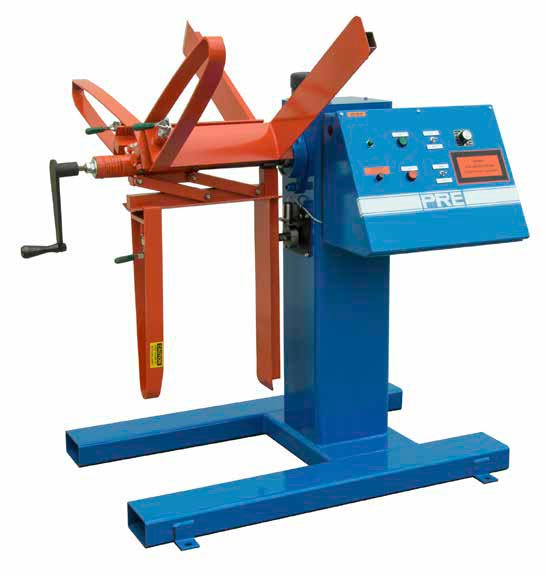

Small Payout Reel

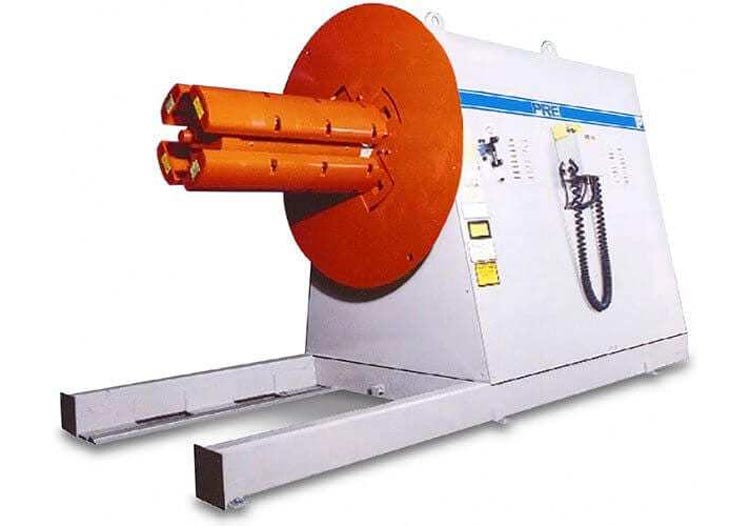

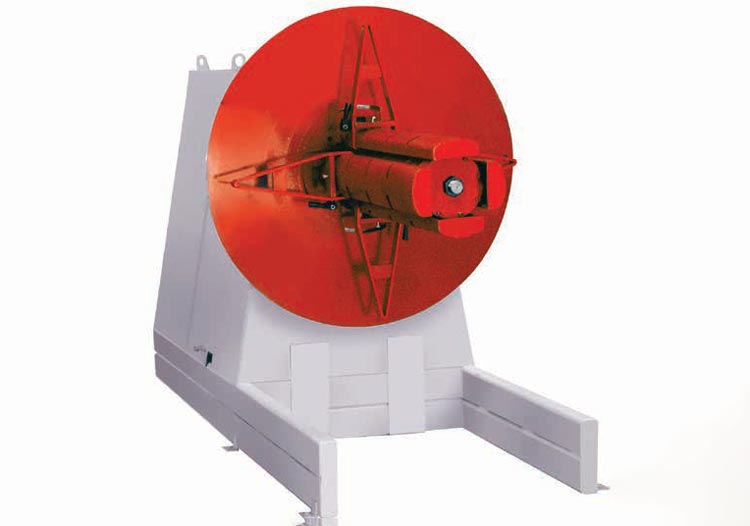

Large Reels
Our larger reels start at 15,000 to 50,000 lb.
We also manufacture double arbor reels in sizes from 600 lbs. to 30,000 lbs.
