Dorner 3200 Precision Move Conveyor

Precision motion, indexing, and part placement for automated systems

Overview

The 3200 Precision Move conveyor is engineered for applications requiring exact, repeatable part positioning and high speeds. It integrates timing belt motion and servo/drive options to enable indexing, reversing, and variable speed control—all while supporting moderate-to-high loads. It’s ideal for robotic pick-and-place, automated assembly, part inspection, and machine integration.

3200 Precision Move Conveyors are especially suited for:

• Precision part movement and indexing
• Automated / manual assembly lines
• Machine integration and infeed/outfeed
• Robotic pick & place tasks
• Positioning operations requiring high repeatability
• Small-to-medium part handling under motion control

Benefits & Features

• High-load urethane timing belt with Kevlar cords, delivering positive drive (no slip) and excellent tracking under side loads.
• Belt widths are all single-belt designs across sizes—no dual-belt splits, which simplifies mounting and accessory alignment.
• Precision indexing capable: rated up to 100 indexes per minute.

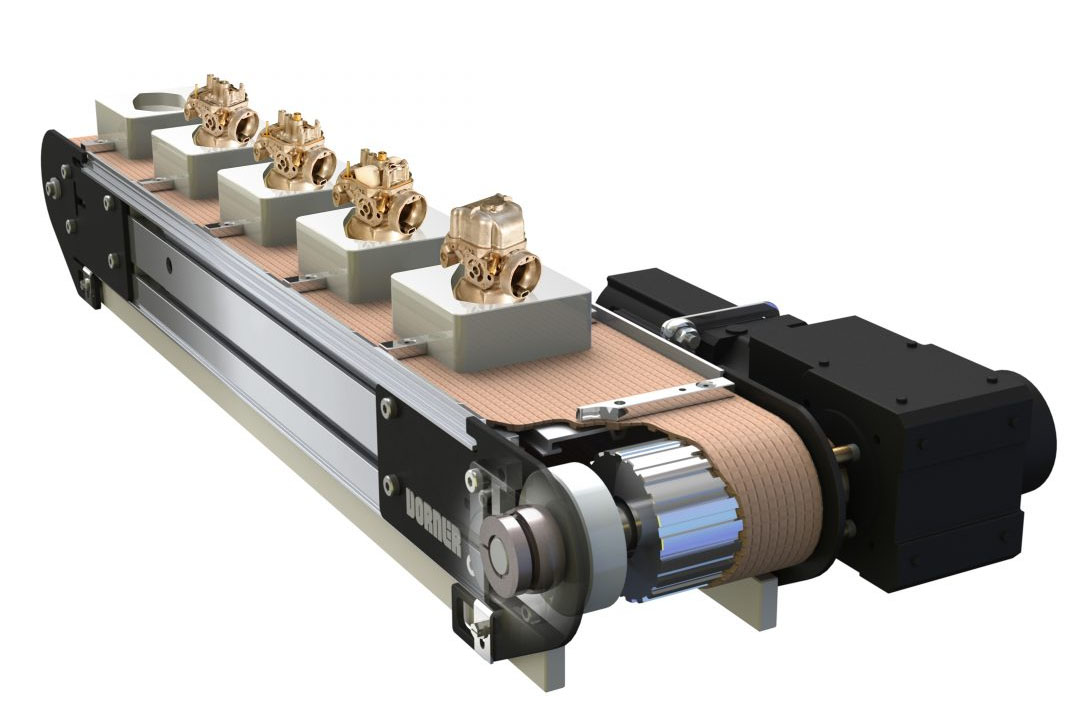

• Integrated servo motor mount package with indexing repeatability of ±0.02” (≈ ±0.5 mm).
• Built-in control switches enable variable speed, reversing, and indexing capabilities directly on the conveyor.
• Universal T-slots in the frame support accessory mounting without custom drilling or fixtures.

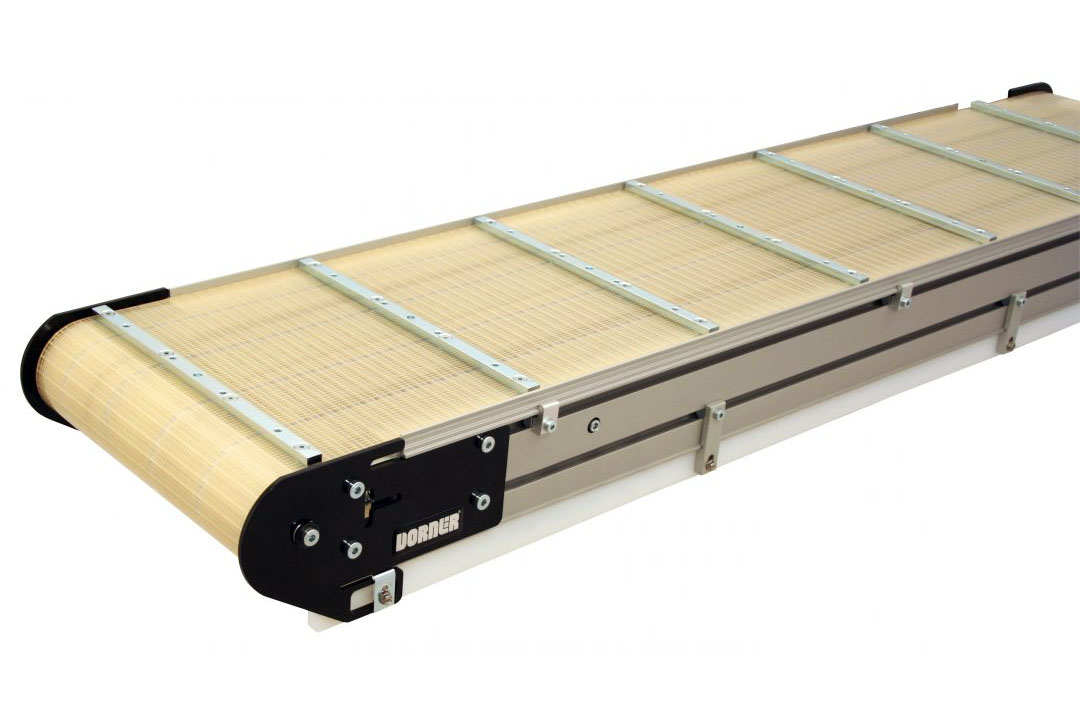

• Optional cleats can be added to create pockets for controlled part handling.
• Three pallet fixture mounting options (bars) allow custom part fixturing.
• Sealed ball bearings for low maintenance operation.

Dorner Series 32000 Precision Move COnveyor Specifications

Applications & use Cases

• High-precision part indexing for assembly systems
• Robotic pick & place / vision-guided systems
• Machine infeed / outfeed with position control
• Automated inspection or testing modules requiring repeatable motion
• Part feeding into critical alignment or processing stations
• Integration where belt reversal or variable speed transitions are necessary

Accessories & Options

• End Drive, Fixtured Pallet Mount, Cleated Belt models available Dorner Conveyors

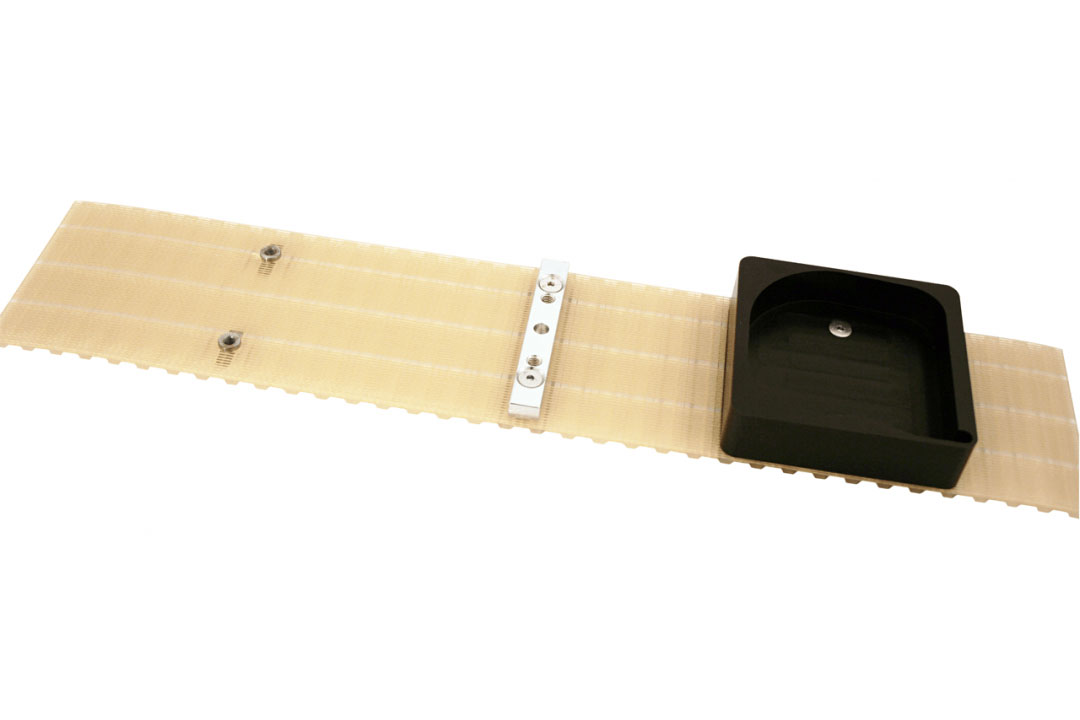

• Belting / belt options & adjunct inserts (cleats, M5 inserts) Dorner Conveyors
• Profiles / guiding rails & brackets Dorner Conveyors
• Support stands & mounting hardware Dorner Conveyors
• Servo motor / drive packages, control modules Dorner Conveyors
• Mounting kits / bars for fixtures Dorner Conveyors
• Engineering drawings, service manuals, and literature Dorner Conveyors
