Dorner C³ Compact Curve Conveyor

Designed to deliver smooth, precise curves in constrained footprints

Overview

The C³ Compact Curve Conveyor (also styled “C3”) is Dorner’s innovative solution for guiding products smoothly through curves—without requiring long straight infeed or outfeed sections. Its patented side‑drive system and low‑profile frame enable tight routing in constrained layouts while maintaining consistent product positioning throughout the turn.

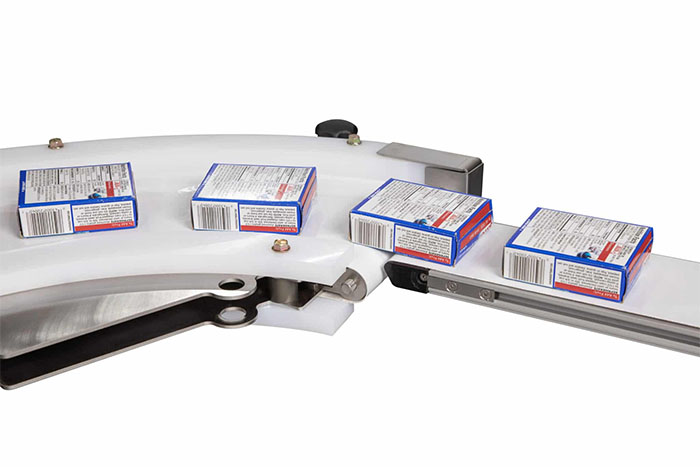

Built on Dorner’s signature low‑profile architecture, the C3 introduces a precision‑engineered drive system that supports delicate materials with minimal jostling. Small pulleys allow for smooth transfers of items as small as 2″, and unlike traditional 90° transfers, the C3 maintains the leading edge through the curve—ensuring accurate alignment for downstream processes. This streamlined design eliminates the need for buffer conveyors typically required in modular belt curves.

The C3 is also Dorner’s first curve platform compatible with both industrial belted conveyors and the AquaGard LP sanitary series. Featuring a stainless steel bedplate and FDA‑approved plastic components and belts, it’s BISCC‑certified for baked goods, confectionery, and packaged food applications.

Unlike traditional modular belt curves, the C³ delivers:

• Flat fabric belt motion (reduced product damage risk)
• Consistent leading edge alignment through the turn for precise downstream positioning
• Smaller footprint due to eliminating long straight buffers before/after the curve
• It’s compatible with other Dorner belted platforms and the AquaGard LP sanitary line, enabling modular system integration.

Benefits & Features

• Low profile and compact frame — ideal for fitting turns in tight or constrained layouts

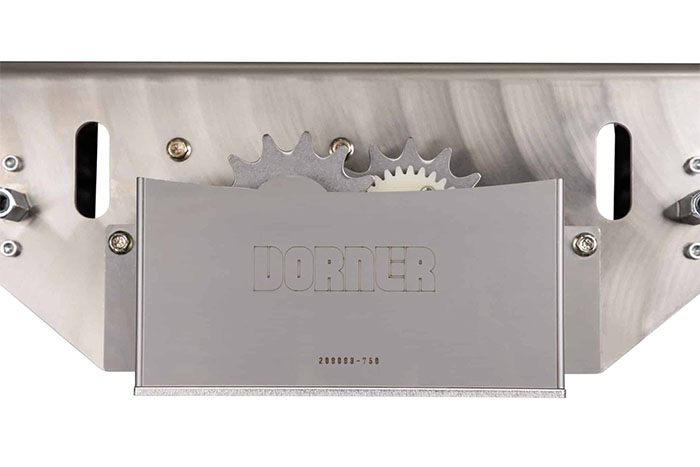

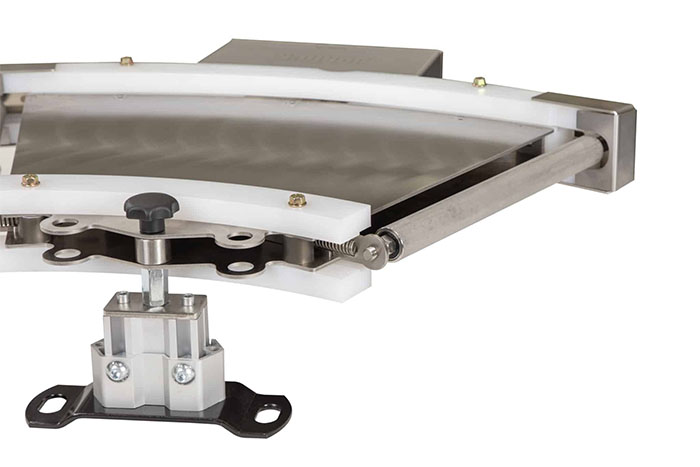

• Patented side-drive sprocket system — operates with minimal belt tension, reducing wear and extending belt life
• Smooth curves for delicate products — supports products as small as 2 in (~50 mm) with consistent transfer behavior
• Stainless steel bedplate & FDA-approved materials — suitable for food, confectionery, baked goods, and packaged items
• Cross-compatibility — spare parts, belts, and accessories are designed to integrate with Dorner’s other belted conveyor lines
• Minimal straight infeed / outfeed requirement — the curve itself handles much of the product guidance, cutting down system footprint

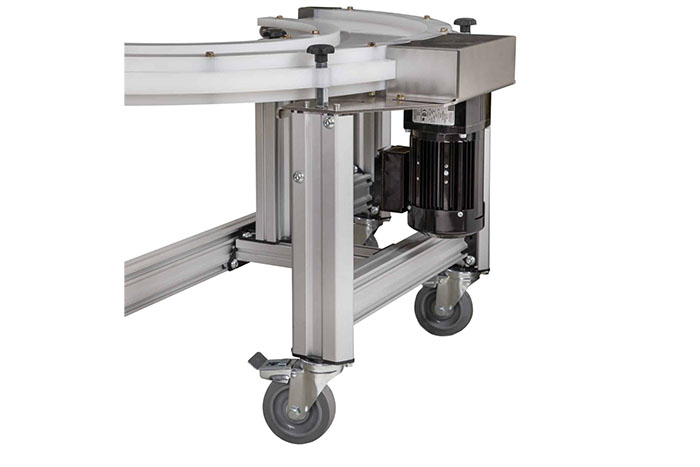

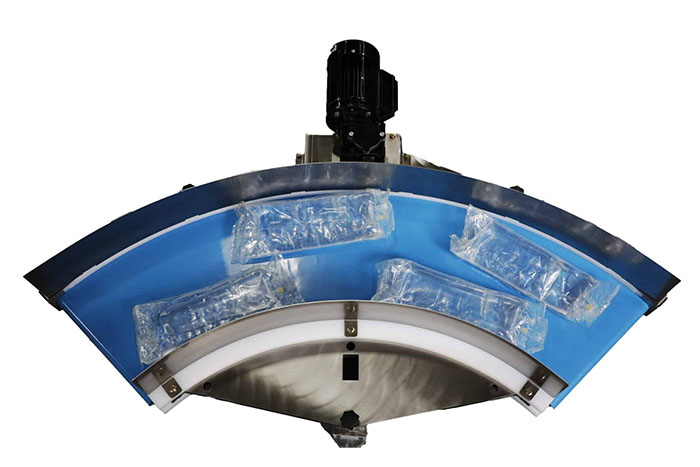

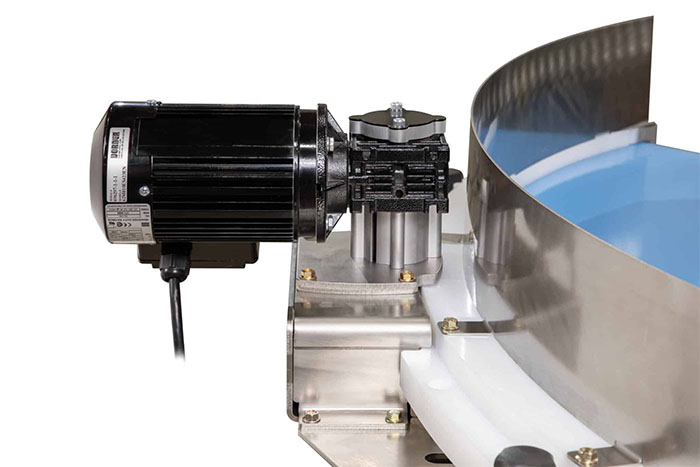

• Flexible motor mounting options — motor can be mounted above or below the belt, with 90° shaft or parallel gearbox configurations

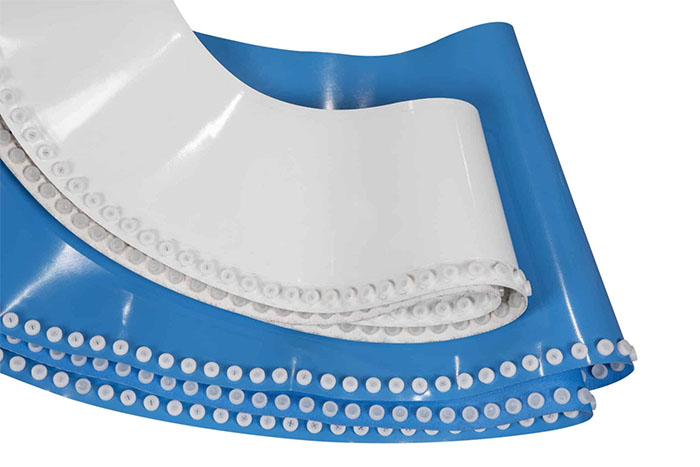

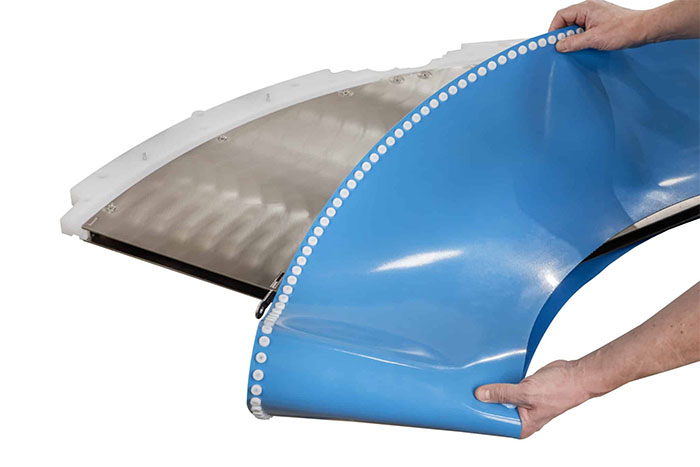

• Multiple belt options — FDA-approved white high friction, antimicrobial blue high friction, and antimicrobial blue low friction belts

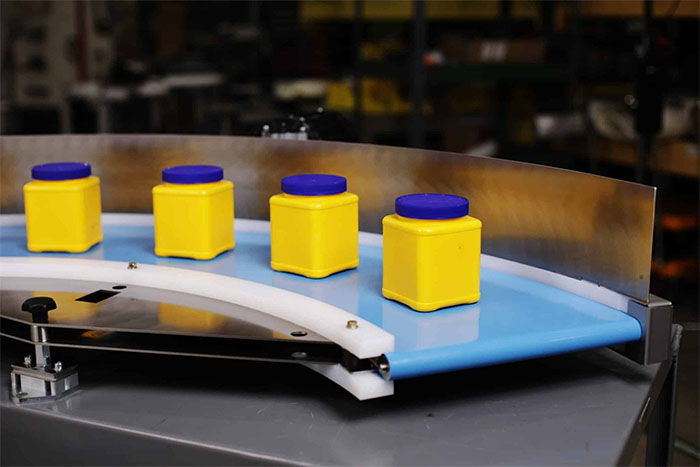

• Adjustable or high side guiding — to suit varied part profiles

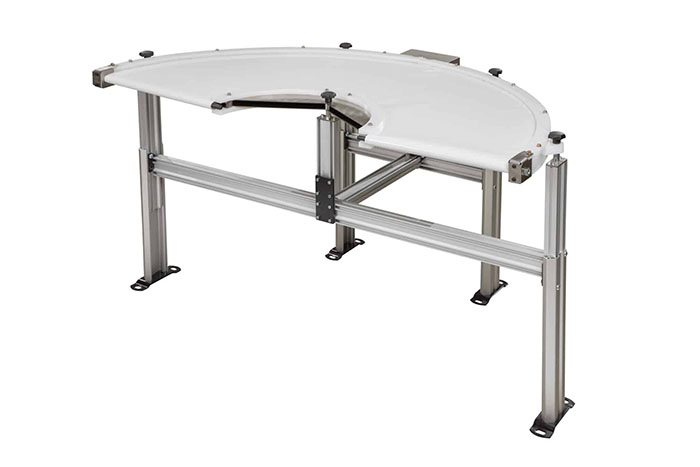

• Support / stand options — table top feet or fully adjustable stands available

Dorner C³ Compact Curve Conveyor Specifications

C³ Curved Belt Conveyor Product Matrix

Applications & use Cases

• Routing delicate products (e.g. baked goods, confectionery) through curves with minimal jostling
• Food, beverage, and packaged goods in tight layouts
• Cosmetics, personal care, and small part handling in constrained spaces
• E-commerce / logistics systems where smooth directional changes are required
• Integration in automation systems where eliminating long infeed / outfeed straight sections reduces footprint

Accessories & Options

• End Drive, Fixtured Pallet Mount, Cleated Belt models available Dorner Conveyors
• Belting / belt options & adjunct inserts (cleats, M5 inserts) Dorner Conveyors
• Profiles / guiding rails & brackets Dorner Conveyors
• Support stands & mounting hardware Dorner Conveyors
• Servo motor / drive packages, control modules Dorner Conveyors
• Mounting kits / bars for fixtures Dorner Conveyors
• Engineering drawings, service manuals, and literature Dorner Conveyors
