Overview
The Mini Titan from Green Valley Manufacturing is a compact, tiller-driven die cart for die changes in tight aisles and crowded press lines. It carries up to 1,500 lb. A tethered pendant runs the powered push/pull system, so dies slide on and off the low-friction deck while the operator stands to the side. Paired with a matching storage rack, a built-in retention bracket locks the cart to the rack for each transfer.
Key Features
- Up to 1,500 lb capacity
- Carries dies and tooling up to 1,500 lb on a small cart.
- Tiller-style powered drive
- Steers through tight aisles and crowded press lines.
- Powered push/pull with tethered pendant
- The operator moves the die on and off the deck while standing to the side.
- Low-friction deck
- UHMW or roller deck surface, so dies slide on and off.
- Cart and rack retention bracket
- Built in. It locks the cart to the matching rack during the transfer.
- Onboard charger
- Plug the cart in between shifts. There is no separate charger to manage.
Product Line / Models
Mini Titan configurations shown by Green Valley:

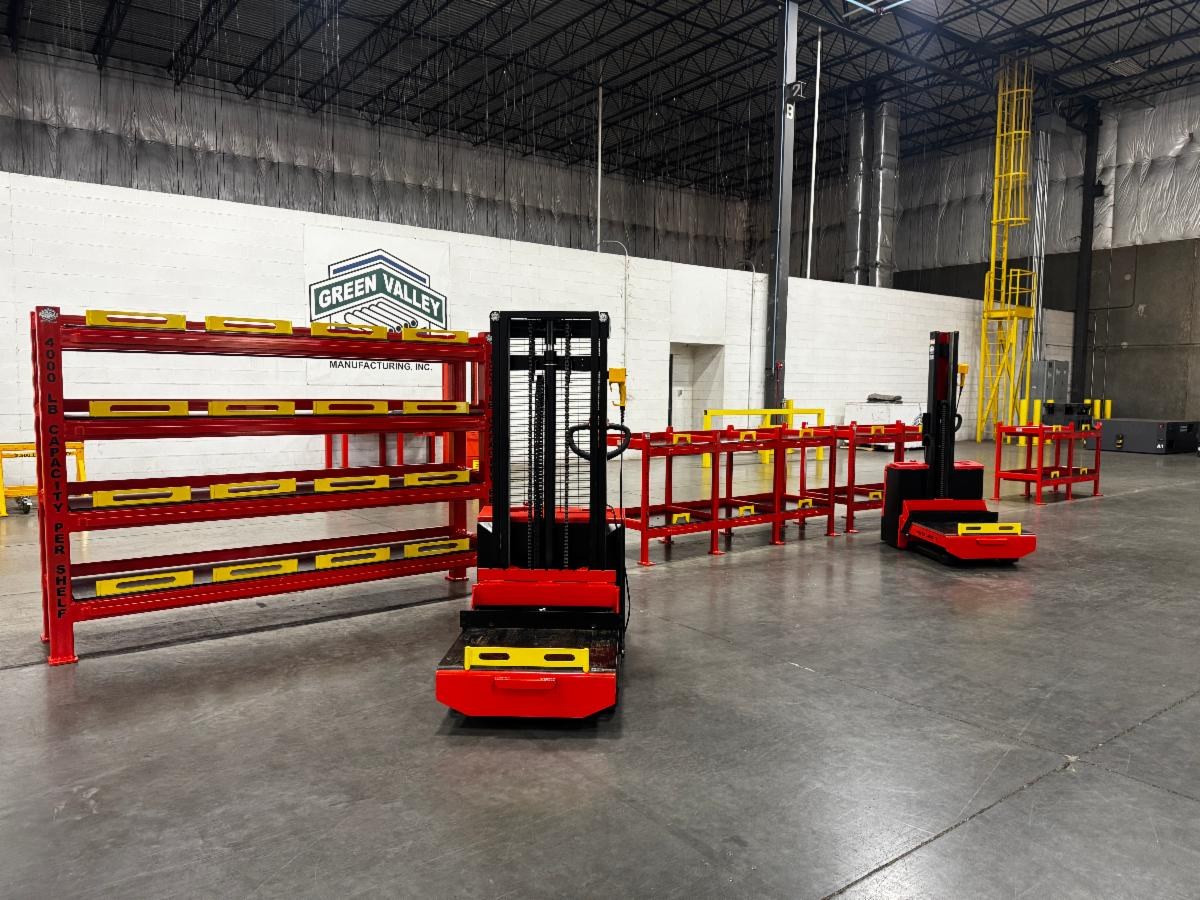

- New Mini Titan – up to 1,500 lb capacity, tiller drive, powered push/pull, UHMW or roller deck.

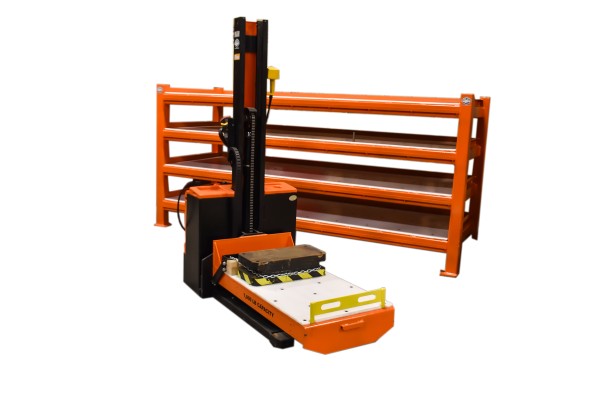

- 1,000 lb Mini Titan (Green Valley project 194882) – 1,000 lb cart with a low-friction UHMW deck, shown with a UHMW storage rack rated 4 x 6,000 lb.
- Matching storage racks – UHMW or low-friction gravity roller rack surfaces.
- Built to your dies – Green Valley builds its die carts to your die dimensions and weights.
Applications & Benefits
- Tight press lines: A compact cart for die changes where a larger cart will not fit.
- Smaller dies and tooling: Dies up to 1,500 lb.
- Operator safety: Powered push/pull moves the die while the operator stands to the side.
- Die storage: A matching rack and retention bracket give a secure cart-to-rack transfer.
How to Choose the Right Mini Titan Die Cart
- List your die weights and confirm the heaviest is 1,500 lb or less.
- Measure die length, width and height.
- Note the press bolster height and the rack shelf heights the cart must reach.
- Measure the narrowest aisle the cart will travel.
- Choose the deck surface: UHMW or roller.
- Count the dies you need to store to size the matching rack.
Why Green Valley Die Carts Are Trusted
- In business since 1995: Green Valley Manufacturing specializes in die and mold handling equipment.
- Built to your dies: Carts are built to your die dimensions and weight requirements.
- One source for quick die change: PRI also supplies Green Valley die storage racks, die tables, bolster extensions and die splitters.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Die weights (heaviest and typical)
- Die dimensions (length, width, height)
- Press bolster height and rack shelf heights
- Narrowest aisle width
- Deck surface preference (UHMW or roller)
- Number of dies to store
- Contact PRI to discuss specs, lead times, and installation support.
