Green Valley Titan Die and Mold Splitters

Overview

Die splitters, also called die separators, open dies and molds and hold the halves safely for inspection, maintenance and tryout. Green Valley builds Titan die and mold splitters in standard and custom designs, with builds from 1,000 lb mold splitters to 70,000 lb die splitters.

Key Features

• One-person operation
  • A splitter lets one person separate, service and try out a die, instead of chain hoists, lead mallets and two or three toolmakers.
• Inverts the upper half
  • Upper decks and platens rotate so the top die half can be serviced face up and then reassembled.
• Machined bolsters with T-slots
  • Precision-machined bolsters and adjustable T-slots clamp a range of die sizes.
• Powered transfer and centering
  • Models like the Titan 2643 move the die to and from a load/unload table and center it under power.
• Die cart docking
  • The Titan 3120 docks with a Green Valley die cart, and the 173816 mates with a mold change cart.
• Built to your die
  • Green Valley designs splitters to suit the die or mold size and plant layout.

Product Line / Models

Capacities from Green Valley:

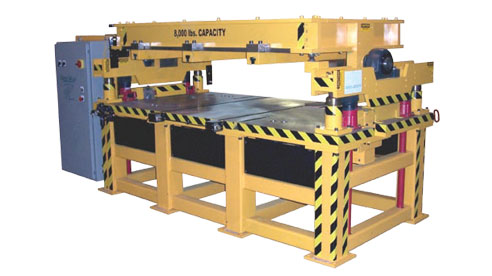

• Titan 2288 – 8,000 lb die splitter. Adjustable upper T-slots, open upper frame, VFD motor control, die lifters for side loading and an upper deck that rotates 180°.

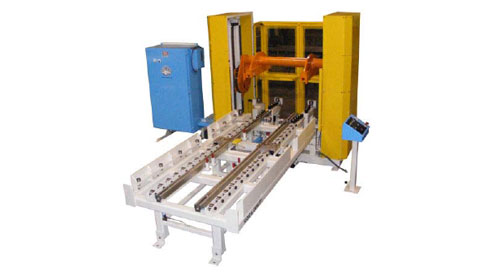

• Titan 2643 – 12,000 lb die splitter. Power transfer to and from the load/unload table, powered centering and PLC push-button controls.
• Titan 2661 – 14,000 lb horizontal die/mold splitter. Crane loaded, with 110V hydraulic power and a machined T-slot bolster.

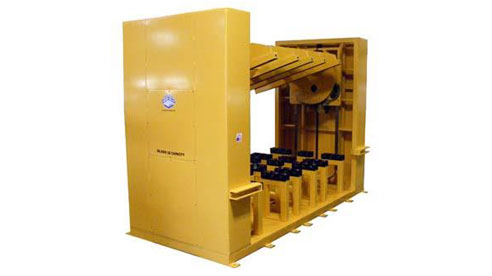

• Titan 3120 – 30,000 lb die splitter. Removes the lower half, inverts and lowers the upper half, and reassembles the die after service.
• Model 173816 – 5,000 lb horizontal mold splitter with fully machined tool surfaces and independently rotating platens.

Applications & Benefits

• Stamping die maintenance: Separates and inverts die halves without hoists and mallets.
• Injection mold service: Mold splitters handle plastic injection molds safely during maintenance.
• Die tryout: Splitters support rapid, safe inspection, repair and tryout in the tool room.
• Quick die change: Splitters that dock with die and mold carts keep the die moving from press to tool room.

How to Choose the Right Die or Mold Splitter

1. Start with the heaviest die or mold you need to split.
2. Measure the die footprint and shut height to size the platens.
3. Decide between vertical splitting and crane-loaded horizontal splitting.
4. Plan how the die arrives: crane, fork truck, die cart or transfer table.
5. Decide whether the splitter must invert the upper half, remove the halves and reassemble the die.
6. Confirm the power and controls available at the install location.

Why Green Valley Die Splitters Are Trusted

• Safer die handling: Splitters remove the slipping and jamming hazards of taking dies apart by hand.
• Wide capacity range: Green Valley builds splitters from 1,000 lb molds up to 70,000 lb dies.
• Part of a die handling system: Green Valley splitters are designed to work with its die carts and mold change carts.

Titan Die and Mold Splitter Videos

Contact & Ordering

Need help picking the right model or getting a quote? Provide these details:

• Heaviest die or mold weight
• Die or mold footprint and shut height
• Die or mold, and vertical or horizontal split
• How the die is loaded (crane, fork truck or cart)
• Whether you need inverting, half removal and reassembly
• Available power at the install location
• Contact PRI to discuss specs, lead times, and installation support.
