HTM Analog Output Proximity Sensors

HTM’s Analog Die Protection Sensors deliver continuous, real-time feedback for critical stamping and forming operations. Designed to detect subtle changes in distance, thickness, and positioning, these sensors help prevent costly die crashes and ensure consistent part quality.

Key Features

• Analog Output: Smooth, proportional signal (0–10V or 0–20mA) based on sensing distance.
• Dual Output Options: Choose from voltage, current, or combined output models to suit your control system. (See "Control Output Schematics" diagrams below)
• High Repeatability: Exceptional resolution and reproducibility for reliable measurements under stable conditions.
• Robust Build: Nickel-plated brass housing with IP67 protection for harsh industrial environments.
• Temperature Stability: Minimal signal drift across a wide operating range (0°C to 70°C).
• PLC-Compatible: Seamless integration into automated control systems.

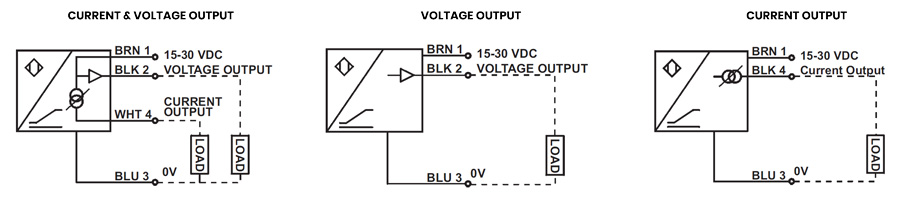

Control OuTput Schematics

Sensing Range & Sizes

Available in multiple form factors:

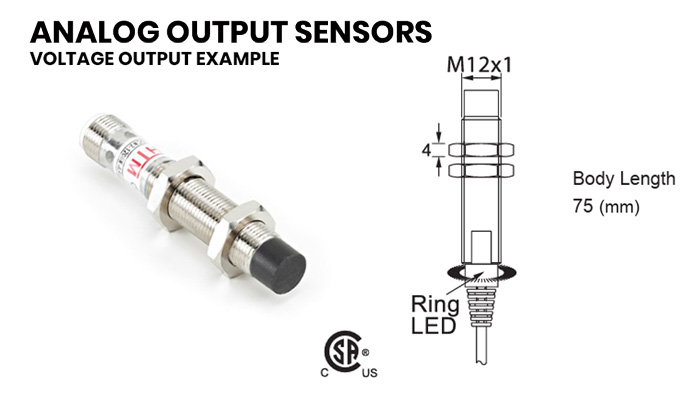

• M12: Compact, ideal for tight spaces (1–4 mm range)

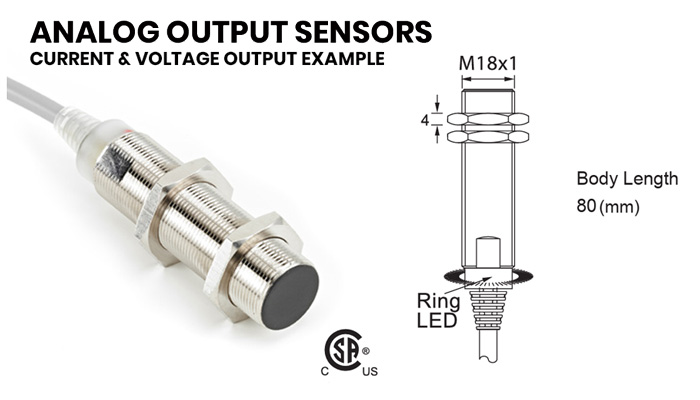

• M18: Versatile mid-size (1–7 mm range)

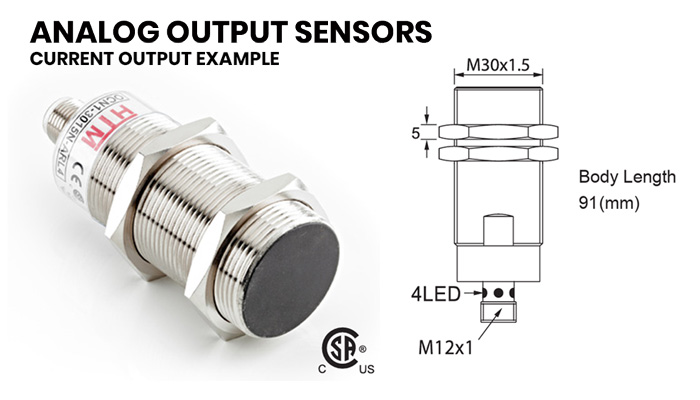

• M30: Extended range for larger dies (5–14 mm range)

Applications

• Die protection in stamping presses
• Thickness control on conveyor belts
• Positioning and level monitoring
• Detection of uneven surfaces or part misfeeds

Performance Highlights

• Linearity error <10% of final value
• Resolution down to 0.02 mm
• Immune to short circuits and electromagnetic interference (RFI/EFT/ESD compliant)

Inquire about related cable needs when submitting a quote request
