HTM Weld Field Immune Proximity SenSors

HTM weld Field Immune sensors are used in MIG welding areas where conventional sensors can flicker and produce false outputs. These sensors are reliable for use in robotic MIG welding areas, spot welding areas, and other assembly areas with high magnetic noise. These sensors have an Extended Range, the cylindrical sensors with a Polytetrafluoroethylene (PTFE) Coating and a thick housing with wrench flats for everyday use in welding areas. For more difficult areas with harsh environments, try MetalHead WFI sensors, or TitanProx sensors made of 1-piece of Titanium.

Weld field immune sensors are the best choice for MIG and spot welding machinery where a reliable sensor is required for reliable operation around high heat, weld spatter and high magnetic fields.

• Weld field immune sensors for MIG and spot welding machines
• High-torque barrel with wrench flats for a tight fit
• Spatterguard™ PTFE Coating to resist weld spatter damage
• 100ºC rating for hot welding environments
• Available in PNP, NPN and AC output functions
• Ideal for use in hot welding environments with weld spatter

Inquire about related cable needs when submitting a quote request

Models

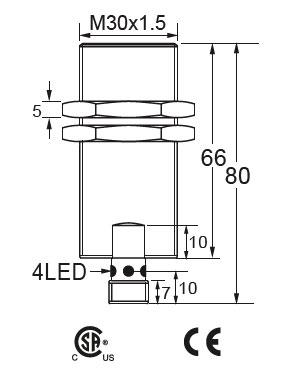

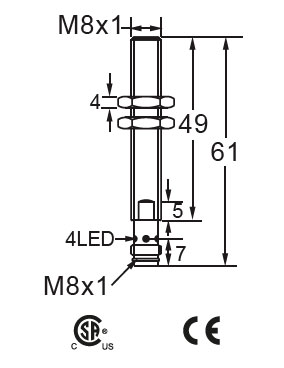

MODEL NAME	M8-PICO	M8-MICRO	M12	M18	M30
MODEL SPECS
SENSING DISTANCE	2 mm	2 mm	4 mm	8 mm	15 mm
OPERATING VOLTAGE	10-30 VDC
OPERATING TEMPERATURE	-25°C-+100°C
MOUNTING STYLE	Shielded
HOUSING MATERIAL	PTFE Coated Brass
CERTIFICATIONS	CSA (C & US) / CE

NOTE: Specifications subject to change without notification.
