Photoelectric sensors with visible LED ensure reliable and extended sensing ranges for limited spaces, with IP67 enclosure rating and are ECO-LAB approved for use in hygienic areas. I/O-Link communication for process optimization. Features include:
MODEL NAME | THRU BEAM | DIFFUSE | RETRO-REFLECTIVE | BACKGROUND SUPPRESSION | CLEAR OBJECT DETECTION |
SENSING RANGE TYP. MAX. | 30 m | 1.5 m | 8 m | 300 mm | Infrared LED (880 nm) |
LIGHT SOURCE | N/A | Red LED 630 nm | Red LED 630 nm | PinPoint Red LED 640 nm | Red LED 630 nm |
LIGHT SPOT SIZE (DISTANCE) | N/A | ø 15 mm @ 500 m / ø 26 mm @ 1 m | ø 30 mm @ 1 m / ø 140 mm @ 6 m | ø 6 mm @ 100 m / ø 10 mm @ 300 m | ø 40 mm @ 1 m |
INDICATOR LED | Output: Yellow Excess Gain: Green | Output: Yellow Excess Gain: Green | Output: Yellow Excess Gain: Green | Output: Yellow Excess Gain: Green | Output: Yellow Excess Gain: Green |
IO-LINK | ✓ | ✓ | ✓ | ✓ | ✓ |
SHORT CIRCUIT PROTECTION | ✓ | ✓ | ✓ | ✓ | ✓ |
REVERSE POLARITY PROTECTION | ✓ | ✓ | ✓ | ✓ | ✓ |
RESPONSE TIME* | <= 500 μs (normal) / <=1 ms / <= 250 μs | <= 340 μs (normal) / <=1 ms / <= 100 μs | <= 340 μs (normal) / <=1 ms / <= 100 μs | <= 500 μs (normal) / <=1 ms / <= 250 μs | <= 340 μs (normal) / <=1 ms / <= 100 μs |
SUPPLY VOLTAGE RANGE | 10-30 V DC | ||||
OUTPUT TYPE | PNP Complementary | ||||
OPERATION MODE | Light On or Dark on Selectable wiring | ||||
HOUSING MATERIAL | ABS | ||||
LENS MATERIAL | PMMA | ||||
IP RATING | IP 67 | ||||

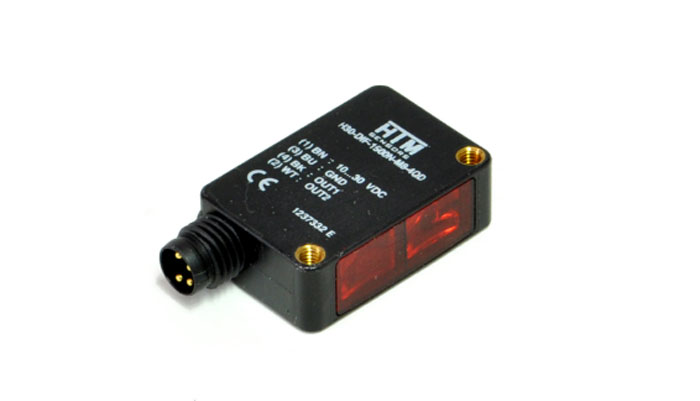

CABLE OR CONNECTOR | 4-Pin M8 Male QD | ||||
*By default, “Normal” mode. “Fine” and “Fast” modes selectable via IO-Link.
NOTE: Specifications subject to change without notification.
PART NUMBERS | THRU-BEAM | DIFFUSE | RETRO-REFLECTIVE | BACKGROUND SUPPRESSION | CLEAR OBJECT DETECTION |
DC Emitter QD | H30-TTX-30000D-M8-3QD | ||||
PNP | H30-TRX-30000P-M8-4QD | H30-DIF-1500P-M8-4QD | H30-RET-8000P-M8-4QD | H30-BGS-0300P-M8-4QD | H30-COD-5000P-M8-4QD |
NPN | H30-TRX-30000N-M8-4QD | H30-DIF-1500N-M8-4QD | H30-RET-8000N-M8-4QD | H30-BGS-0300N-M8-4QD | H30-COD-5000N-M8-4QD |
DC Emitter Pre-wired | H30-TTX-30000D-2M | ||||

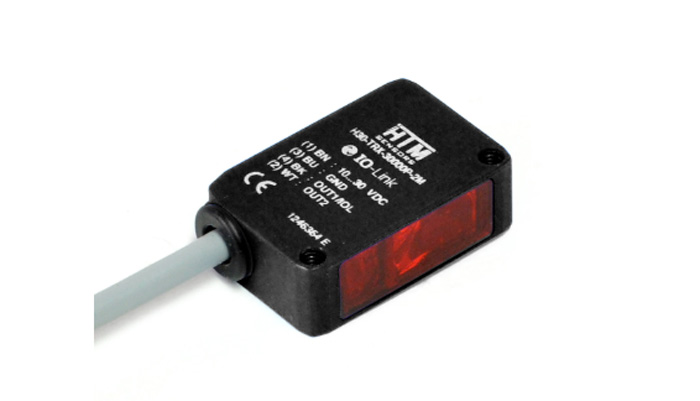

PNP Pre-wired | H30-TRX-30000P-2M | H30-DIF-1500P-2M | H30-RET-8000P-2M | H30-BGS-0300P-2M | H30-COD-5000P-2M |
NPN Pre-wired | H30-TRX-30000N-2M | H30-DIF-1500N-2M | H30-RET-8000N-2M | H30-BGS-0300N-2M | H30-COD-5000N-2M |
