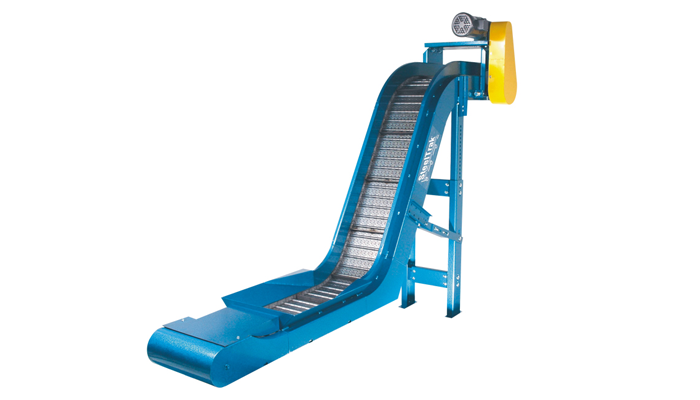

NLE - 727 SteelTrack Hinged Steel Belt Conveyor

This unit features a very shallow infeed combined with the strength of a deeper intermediate and drive frame. The shallow 5-3/8″ deep infeed is designed to fit under an existing machine. The remainder of the unit is 6-5/8″ deep. This unique combination provides both strength and space flexibility.

Standard Specifications

• Widths: 6″, 8″, 12″, 18″, 24″, 30″ and 36″ (Custom Widths Available)
• Lengths: Per Application
• Standard Speed: 30 FPM
• Standard Motor: 1/2 HP 230/460/3/60 TEFC
• Standard Drive: Top Mount, Right Side
• Frame: 6-5/8″ Deep x Formed 12 Gauge
• Infeed: Semi-Rounded
• Drive Shaft: 1-3/16″ diameter
• Bearings: Grease Sealed, Marine @ Infeed
• Sprockets: 5 Tooth x 4.25″ Pitch Diameter
• Belt: 2-1/2″ Pitch Hinged Steel Belt, One Piece Apron, with 5/8″ high cleats on 12-1/2″ Centers, 1″ high side wings, 1.5″ Diameter rollers (Flanged Rollers are available), Outside Sidebars are required on belts greater than 18″, but also optional for smaller widths.
• Available in type 3 (Z), type 4 (L) and horizontal configurations
