Overview
New London Engineering belt-driven live roller conveyors run a belt under a bed of rollers, which lets them carry heavier loads such as cartons, drums and tires while keeping drive horsepower economical. The family covers the Model 600 medium-duty and Model 610 heavy-duty live roller conveyors and the Model 660 variable pressure accumulation conveyor, all up to 36" wide with 2" rollers and a 60 FPM standard speed. PRI supplies the full NLE belt-driven live roller line.
Key Features
- Roller bed under the belt
- A belt drives the roller bed from below, allowing heavier loads while making drive horsepower more economical.
- Multi-zone accumulation
- Multi-zone accumulation allows product staging points. The Model 660 allows a changeable combination of totally free-moving and controlled-accumulation sections.
- Long-distance conveying
- The Models 610 and 660 run up to 100' long; the Model 600 runs up to 40'.
- Standard drive package
- 1/2 HP 230/460/3/60 TEFC motor, bottom mounted at the infeed, driving a black PVC 120 belt at a 60 FPM standard speed.
- Shared heavy-gauge build
- All three models use a 6-1/2" deep x 12 gauge frame, 2" diameter rollers on 6" centers and 30" top-of-roller standard supports.
- Stops, diverts and transfers
- The Model 600 suits applications that need a pop-up stop or push-off divert; the Model 610 is built for transfers, side loading or temporary accumulation.
Product Line / Models
New London Engineering belt-driven live roller models and standard specifications:

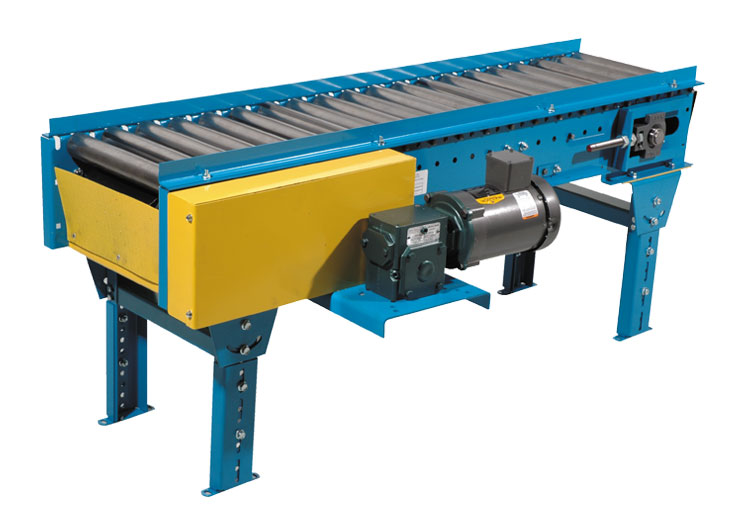

- Model 600 Medium Duty Belt Driven Live Roller – widths up to 36", lengths up to 40', 60 FPM, 1/2 HP 230/460/3/60 TEFC motor, bottom mount drive at infeed (left side), 8" wide black PVC 120 belt with clipper lacing, 6-1/2" deep x 12 ga. frame, 2" dia. x 16 ga. rollers with 7/16" hex shafts on 6" centers, 30" top-of-roller supports. Conveys drums and tires and is used where a pop-up stop or push-off divert is required.

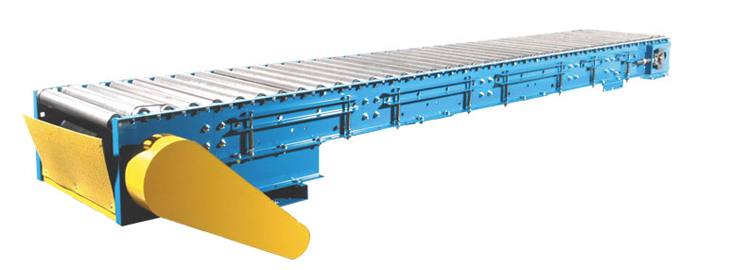

- Model 610 Heavy Duty Belt Driven Live Roller – maximum 2,000 lb live load, widths up to 36", lengths up to 100', 60 FPM, 1/2 HP 230/460/3/60 TEFC motor, bottom mount drive at infeed, 8" wide black PVC 120 belt, 6-1/2" deep x 12 ga. frame, grease-sealed bearings, 2" dia. x 16 ga. rollers with 7/16" hex shafts on 6" centers, 30" top-of-roller supports. Moves large cartons, drums and tires where transfers, side loading or temporary accumulation is required.
- Model 660 Variable Pressure Accumulation Conveyor – back-to-back widths up to 36", lengths up to 100', 60 FPM, 1/2 HP 230/460/3/60 TEFC motor, bottom mount drive at infeed (left side), black PVC 120 belt with clipper lacing, 6-1/2" deep x 12 ga. frame, grease-sealed bearings, 2" dia. rollers on 6" centers, 30" top-of-roller supports. A changeable combination of free-moving and controlled-accumulation sections for dwell stations or safe accumulation of product.
Applications & Benefits
- Cartons, drums and tires: Moving heavier loads horizontally, including large cartons, drums and tires.
- Transfers and side loading: The Model 610 is designed for lines where transfers, side loading or temporary accumulation is required.
- Pop-up stops and push-off diverts: The Model 600 is used in applications that require a pop-up stop or push-off divert.
- Dwell stations and accumulation: The Model 660 is designed for applications where dwell stations or safe accumulation of product is needed.
How to Choose the Right NLE Belt-Driven Live Roller Conveyor
- Start with the load. The Model 610 is rated for a maximum 2,000 lb live load and handles large cartons, drums and tires.
- Set the length. The Model 600 runs up to 40'; the Models 610 and 660 run up to 100'.
- Confirm the width. All three models are available up to 36" wide.
- Choose the Model 660 where dwell stations or safe accumulation of product is needed.
- Note any pop-up stops, push-off diverts, transfers or side-loading points along the line.
- Check the standard 60 FPM speed, 1/2 HP 230/460/3/60 motor and 30" top-of-roller height against the rest of the line.
Why NLE Belt-Driven Live Roller Conveyors Are Trusted
- Quality conveyors since 1948: New London Engineering, of New London, Wisconsin, has built conveyors since 1948 and is a full line conveyor supplier.
- Heavy-gauge construction: All three models share a 6-1/2" deep x 12 gauge frame and 2" diameter rollers on 6" centers.
- Economical drive for heavy loads: The roller-bed-under-belt design allows heavier loads while making drive horsepower more economical.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Heaviest load and what it is (cartons, drums, tires or other)
- Load footprint and required conveyor width
- Conveyor length and layout
- Accumulation zones, dwell stations, pop-up stops, push-offs or transfers needed
- Top-of-roller height
- Available power and who supplies the controls
- Contact PRI to discuss specs, lead times, and installation support.
