Overview

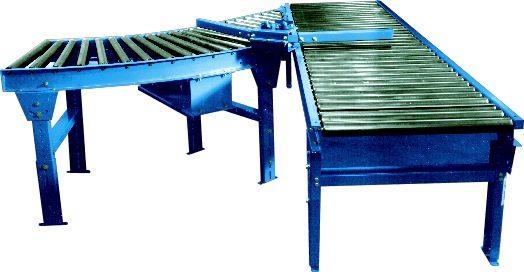

New London Engineering gravity roller conveyors are NLE's economical solution for carrying everything from lightweight packages to loaded pallets. Six Series 900 models span roller diameters from 1-3/8" to 3-1/2" and roller ratings from 100 lb to 2,000 lb, and every model is available in special configurations or with a heavy-duty frame. PRI supplies the full NLE gravity line, along with the skate wheel and ball transfer tables NLE offers.
Key Features
- Six roller sizes
- Roller diameters of 1-3/8", 2", 2-1/2", 2-5/8" and 3-1/2" across six models.
- 100 to 2,000 lb roller ratings
- From 100 lb on the Model 901 to 2,000 lb on the Model 950.
- Diameters, walls and centers
- Multiple roller diameters and wall thicknesses are available at a wide range of centers.
- Frames matched to the load
- 12 gauge and 10 gauge frames on the lighter models; 4" and 6" channel frames on the 920, 921 and 950.
- Brakes and stops
- Roller brakes and pop-up blade stops are available.
- Special configurations
- All models come in special configurations or a heavy-duty frame, and NLE also builds skate wheel and ball transfer tables.
Product Line / Models
New London Engineering Series 900 gravity roller models (roller diameter, tube, hex axle, frame, roller rating):
- Model 901 – 1-3/8" roller, 18 ga. tube, 5/16" hex axle, 2-1/2" x 1" frame in 12 ga., 100 lb roller rating.
- Model 910 – 2" roller, 16 ga. tube, 7/16" hex axle, 3-1/2" x 1-1/4" frame in 10 ga., 240 lb roller rating.
- Model 911 – 2" roller, 13 ga. tube, 7/16" hex axle, 3-1/2" x 1-1/4" frame in 10 ga., 280 lb roller rating.
- Model 920 – 2-1/2" roller, 11 ga. tube, 11/16" hex axle, 4 x 5.4 lb channel frame, 600 lb roller rating.
- Model 921 – 2-5/8" roller, 7 ga. tube, 11/16" hex axle, 4 x 5.4 lb channel frame, 650 lb roller rating.
- Model 950 – 3-1/2" roller of .300 wall pipe, 1-1/16" hex axle, 6 x 8.2 lb channel frame, 2,000 lb roller rating.
Applications & Benefits
- Packages to pallets: NLE gravity conveyors carry everything from lightweight packages to loaded pallets.
- Heavy unit loads: The Model 950, with 3-1/2" pipe rollers rated at 2,000 lb, is the heaviest model in the line.
- Holding product in place: Roller brakes and pop-up blade stops are available where product must be held on the line.
- Turntable infeeds: NLE uses gravity roller or skate wheel approaches as the infeed to its Model 180 turntable.
- Transfer tables: Where a traditional gravity conveyor doesn't suit the application, NLE offers skate wheel and ball transfer tables.
How to Choose the Right NLE Gravity Roller Conveyor
- Start with the roller rating the load needs: 100 lb (901), 240 lb (910), 280 lb (911), 600 lb (920), 650 lb (921) or 2,000 lb (950).
- Choose roller diameter and tube gauge; multiple diameters and wall thicknesses are available at a wide range of centers.
- Match the frame: 12 or 10 gauge frames on the 901, 910 and 911; channel frames on the 920, 921 and 950.
- Add roller brakes or pop-up blade stops where needed.
- Ask about special configurations, a heavy-duty frame, or skate wheel and ball transfer tables.
Why NLE Gravity Roller Conveyors Are Trusted
- Quality conveyors since 1948: New London Engineering, of New London, Wisconsin, has built conveyors since 1948 and is a full line conveyor supplier.
- Published ratings for every model: NLE lists roller diameter, tube gauge, hex axle, frame and roller rating for all six Series 900 models.
- One source for the whole line: Gravity sections, powered conveyors, turntables and controls come from the same manufacturer.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- What is being conveyed and its heaviest weight
- Product size and bottom surface (carton, tote, drum, pallet or other)
- Conveyor length, width and layout
- Roller brakes or pop-up blade stops needed
- Top-of-roller height and what it connects to
- Any need for a heavy-duty frame, special configuration, or skate wheel or ball transfer table
- Contact PRI to discuss specs, lead times, and installation support.
