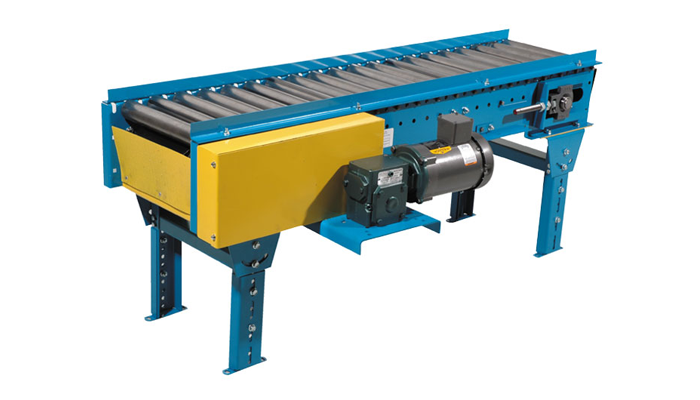

NLE - Model 600 Medium Duty Belt Driven Live Roller Conveyor

This unit is used to convey heavier loads like loaded pallets, drums, and tires and is also used in applications that require a pop-up stop or push-off diverts.

Standard Specifications

• Widths: Up to 36″
• Lengths: Up to 40′
• Standard Speed: 60 FPM
• Standard Motor: 1/2 HP 230/460/3/60 TEFC
• Standard Drive: Bottom Mount at Infeed, Left Side
• Standard Belts: 8″ Wide Black PVC 120, Clipper Lacing
• Drive Pulley: 4″ Dia Crown Face Rubber Lagged x 1-3/16″
• Discharge Pulley: 4″ Dia Crown Face Take Up x 1-3/16″
• Frame: 6-1/2″ Deep x 12 Gauge
• Standard Rollers: 2″ Diameter x 16 ga. x 7/16″ Hex Shaft on 6″ Centers
• Standard Supports: 30″ Top of Roller
