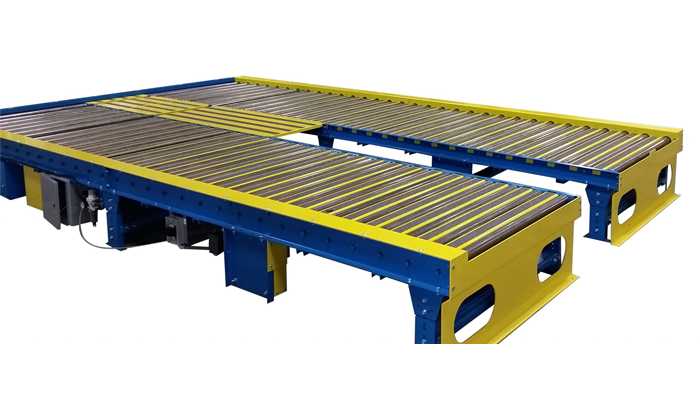

NLE - Model 670 Medium Duty Chain-Driven Live Roller Conveyor

The Model 670 is built to convey weights up to 1,000 pounds per lineal foot of conveyor.  Excelling in moving heavy industrial items quickly.

Standard Specifications

• Effective Widths: 12″, 18″, 24″, 30″, 36″, 42″, 48″ (Custom Widths Available)
• Lengths: 5’– 50′
• Standard Speed: 30 FPM
• Standard Motor: 3/4 HP 230/460/3/60 TEFC
• Standard Drive: Bottom Mount Center, Right Side
• Frame: 6.5″ Deep x Formed 7 Gauge
• Bearings: Grease Sealed
• Roller Chain: #60 or #80 as required
• Standard Roller Choices:
• 2-1/2″ Dia x 11 Ga. with 11/16″ Hex Shaft
• 2-5/8″ Dia. x 7 Ga. with 11/16″ Hex Shaft
• Roller Centers: 6″, 9″, 12″, 15″
• Standard Supports: 30″ Top of Roller
