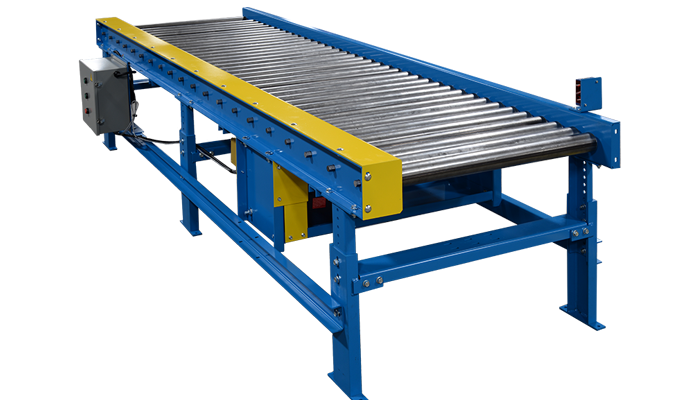

NLE - Model 675 Medium Duty Chain-Driven Live Roller Converyor

Industrial, heavy-duty conveyor with a variety of drive and height configurations designed to handle large item loads up to 2,000 pounds per lineal foot of conveyor.

Standard Specifications

• Effective Widths: 12″, 18″, 24″, 30″, 36″, 42″, 48″, 54″ and 60″; (Custom Widths Available)
• Lengths: 5’– 50′
• Standard Speed: 30 FPM
• Standard Motor: 1-1/2 HP 230/460/3/60 TEFC
• Standard Drive: Bottom Mount Center, Right Side
• Frame: 8-1/2″ Deep x Formed 1/4″ Steel
• Bearings: Grease Sealed
• Roller Chain: #60 Roll-to-Roll, Progressive Drive Roller Chain
• Standard Rollers: 3-1/2″ Dia., 300 Wall with 1-1/16″ Hex Shaft
• Roller Centers: 6″, 9″, 12″, 15″
• Standard Supports: 30″ Top of Roller
