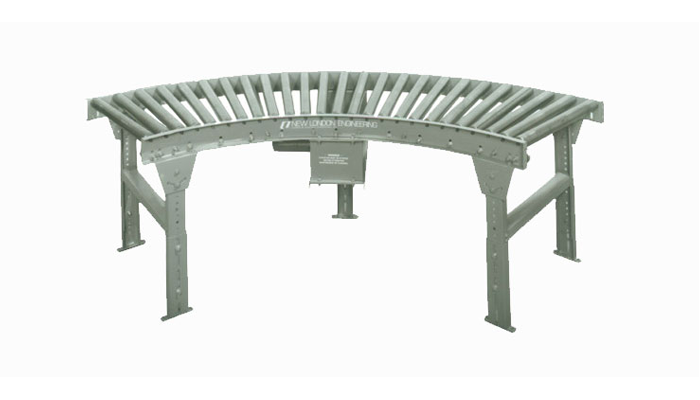

NLE - Model 690 V-Belt 90 Degree Curved Conveyor

Choose this curve unit for product lines requiring a 90-degree turn. This unit uses V-belt driven live roller spurs to merge product lines.

Standard Specifications

• Widths: 12″, 18″, 24″, 30″, 36″
• 30 Degree: (Model 630 Straight Rollers) (Model 631 Tapered and Straight Rollers)
• 45 Degree: (Model 645 Straight Rollers) (Model 645 Tapered and Straight Rollers)
• 90 Degree: (Model 690 Straight Rollers) (Model 690 Tapered and Straight Rollers)
• Standard Motor: 1/2 HP 230/460/3/60 TEFC
• Standard Speed: 60 FPM
• Standard Drive: Bottom Mount
• Frame: 6-1/2″ Deep x 12 Gauge
• Rollers: 2″ Diameter x 16 Ga with 7/16″ Hex Shaft
• Roller Centers: 2-5/8″ Inside Rail (from V-Belt Driven Curves)
