NLE - Model 712 Drag Conveyor - Double Strand Drag

MANUFACTURER: New London Engineering

MANUFACTURER SKU: M712

STOCK STATUS: In-Stock

MORE INFORMATION:

ReQuest Ordering Information

Product Gallery & Description

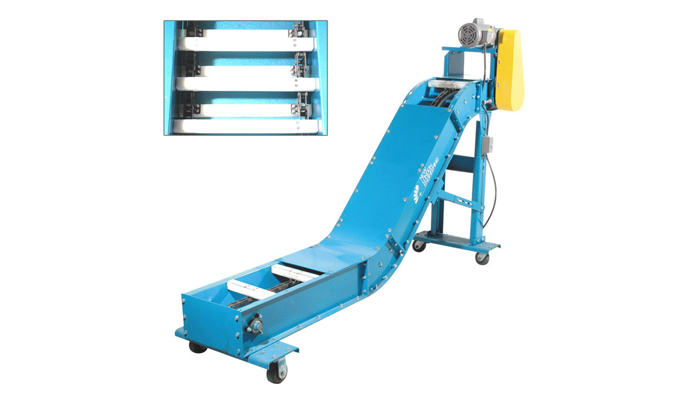

Drag-Model-double-712-1

All of the features of Model 711, with the added strength of a dual strand.

Widths: 6″, 8″, 10″ and 12″
Curves: 30°, 45°, and 60°
Lengths: Up to 20′
Standard Speed: 20 FPM
Standard Motor: 1/2 HP 230/460/3/60 TEFC
Standard Drive: Top Mount, Right Side
Frame: 8-5/8″ Deep x 12 Gauge
Bearings: Grease Sealed
Sprockets: 12 Tooth, 3.854″ Pitch Diameter
Belt: 2″ Pitch with Replaceable 1-1/2″ High UHMW Drag Flights on 12″ Centers; Single-Strand Chain Design (Model 711) Dual-Strand Chain Design (Mode 712)
