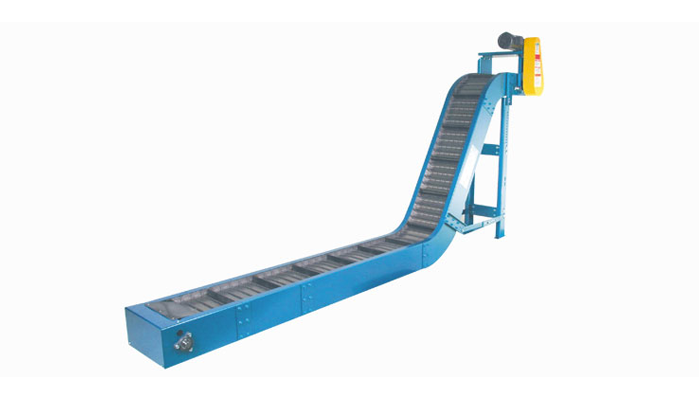

NLE - Model 720/723 SteelTrack Hinged Steel Belt Conveyor

This compact but rugged conveyor is the ideal choice for handling very small parts, stampings, scrap, chips and turnings. Its condensed size also allows it to fit into tight spaces too small for a standard 2-1/2″ pitch machine.

Standard Specifications

• Widths: 6″, 8″, 12″, 18″, 24″, 30″ and 36″ (Custom Widths Available)
• Lengths: Depends on Application
• Standard Speed: 30 FPM
• Standard Motor: 1/2 HP 230/460/3/60 TEFC
• Standard Drive: Top Mount, Right Side
• Frame: 8-1/2″ Deep x Formed 12 Gauge
• Drive Shaft: 1-11/16″ diameter (The M721 is 1-7/16″ dia.)
• Bearings: Grease Sealed
• Sprockets: 6 Tooth x 5″ Pitch Diameter
• Belt: 2-1/2″ Pitch Hinged Steel Belt with 1-3/8″ high cleats on 12-1/2″ Centers, 1.5″ high side wings, 1.5″ Diameter Rollers (Flanged Rollers are available), Outside Sidebars are required on belts greater than 18″, but also optional for smaller widths.
• Also available in liquid tight bottom pans (model 723)
• Available in type 3 (Z), type 4 (L) and horizontal configurations
