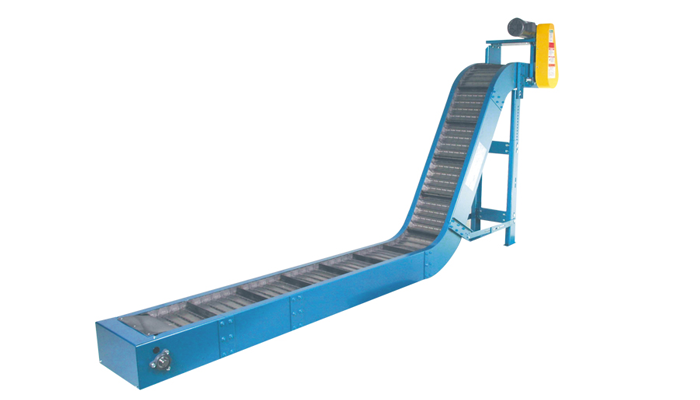

NLE - Model 721/724 SteelTrack Hinged Steel Belt Conveyor

Standard Specifications

• Widths: 6″, 8″, 12″, 18″, 24″, 30″ and 36″ (Custom Widths Available)
• Lengths: Per Application
• Standard Speed: 30 FPM
• Standard Motor: 1/2 HP 230/460/3/60 TEFC
• Standard Drive: Top Mount, Right Side
• Frame: 8-1/2″ Deep x Formed 12 Gauge
• Drive Shaft: 1-7/16″ diameter
• Bearings: Grease Sealed
• Sprockets: 6 Tooth x 5″ Pitch Diameter
• Belt: 2-1/2″ Pitch Hinged Steel Belt with 1-3/8″ high cleats on 12-1/2″ Centers, 1.5″ high side wings, 1.5″ Diameter Rollers (Flanged Rollers are available), Outside Sidebars are required on belts greater than 18″, but also optional for smaller widths.
• Also available in liquid tight bottom pans (model 724)
• Available in type 3 (Z), type 4 (L) and horizontal configurations
