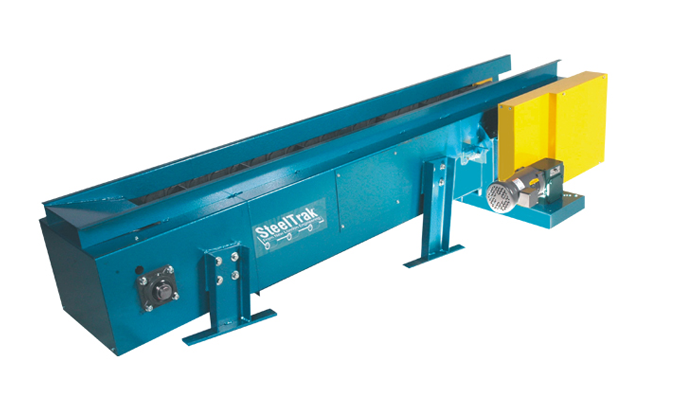

NLE - Model 750 SteelTrack Hinged Steel Belt Conveyor

This unit infeed tapers from 6-5/8″ to 4-1/8″ and then back to 6-5/8″. The very shallow 4-1/8″ section is designed so the unit can fit into a very tight space inside or under an existing machine.

Standard Specifications

• Widths: 12″, 18″, 24″, 30″, 36″, 48″, and 60″ (Custom Widths Available)
• Lengths: Depends on Application
• Standard Speed: 30 FPM
• Standard Motor: 1/2 HP 230/460/3/60 TEFC
• Standard Drive: Top Mount, Right Side
• Frame: 15-1/4″ Deep x Formed 10 Gauge
• Drive Shaft Dia.: (M751 = 1-15/16″) (M750 = 2-15/16″)
• Infeed Shaft Dia.: (M751 = 1-11/16″) (M750 = 1-15/16″)
• Bearings: Grease Sealed
• Sprockets: 6 Tooth x 8″ Pitch Diameter
• Belt: 4″ pitch hinged steel belt, one piece apron, with 2-3/8″ high cleats on 24″ centers, 3″ high side wings, 1-3/4″ diameter hardened flanged rollers, outside sidebars, 1/2″ diameter axle with impact tube.
• Available in type 3 (Z), type 4 (L) and horizontal configurations
