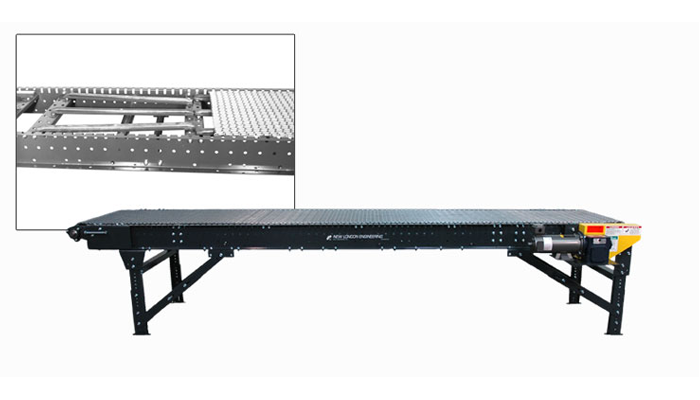

NLE - Model 800 Wire Mesh Belt Conveyor - Herringbone Deck

The Herringbone wear strips are made of stainless steel and are ideal for water, high temperature, and dirty or gritty applications. The unique Herringbone deck pattern spreads the belt-wear evenly across the belt.

Standard Specifications

• Widths: 12″ – 36″ (Custom Widths Available)
• Standard Speed: 60 FPM
• Standard Motor: 1/2 HP 230/460/3/60 TEFC
• Standard Drive: Bottom Mount @ Discharge
• Frame: 12 Gauge x 6-1/2″ Deep
• Bearings: Grease Sealed
• Sprockets: 13 Tooth x 4.1″ Pitch Diameter
• Standard Mesh: 1/2″ x 1″ Galvanized Steel
