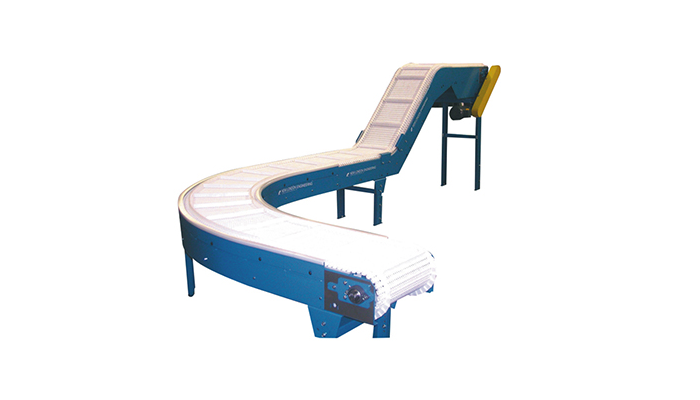

NLE - PlastiTrack 2000-CF Curved and Flighted Plastic Belted Conveyor

Used in applications that require curves and elevation changes.

Standard Specifications

• Model 2000-CF Specifications
• Frame: 10 Gauge x 7-5/8″ Deep
• Frame Width: BW + 7/8″
• Frame Spreaders: 10 Gauge Formed Channel
• Shafts: 1-1/2″ Square Shafts
• Return Rollers: 2-1/2″ Diameter x 11/16″ Hex
• Wear Strips: Available in Both Straight and Chevron Style Arrangements
• ACT System (Application Change Technology) see page 135 (Not included Model 2000-C, CF, F, N, NLE)
