The front of a business's press line requires lots of attention and maintenance: from ensuring that multiple blanks are not accidentally put into the press at one time to job changeovers, the process can be tedious and unsafe.
Norgren's Transforming Tooling for the Press Room Destacker eliminates the need for manual job changeovers by automatically adjusting it's position for each job, and includes double blank sensing to protect your press from damages or crashes - so you can focus on what's important.
Conventional Tooling vs. Norgren’s Transforming Tooling
Eliminate hundreds of thousands of dollars in recurring tooling costs
Free up hundreds of square meters of floor space
Eliminate manual tool change and optimize safety
Adaptive Transforming Tooling Communication

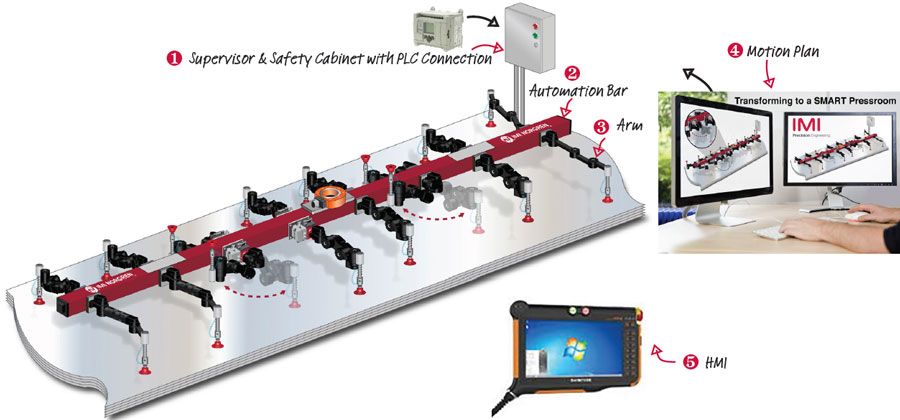

Illustration: Norgren's Adaptive Transforming Tooling Communication Illustration
Communication Highlights
Cell/Automation PLC Communication to TT Supervisor: Ethernet IP – communicates what job, when to change, health of the TT
Supervisor: Stores the jobs with specific motion plans
Number of Jobs: 1000’s of motion plans – positions
Power: 24V <10 amp Type
Arm Communication: Supervisor to Arm joints via can bus
Health Status: Arm position monitoring, Arm status, Vacuum status
Job Change Time: <1 minute
Motion Plan: Offline process which defines individual arm movement timing and position based on system needs. Stored in the Supervisor.
HMI: User friendly intuitive control for Jobs, adjustment, trouble shooting. Wireless, PC, PLC (learn more about the HMI below)
Operating Software: Java
Repair: Replaced components are recognized by the Supervisor and configure automatically – no need to home or calibrate replaced hard-ware
HMI HIghlights

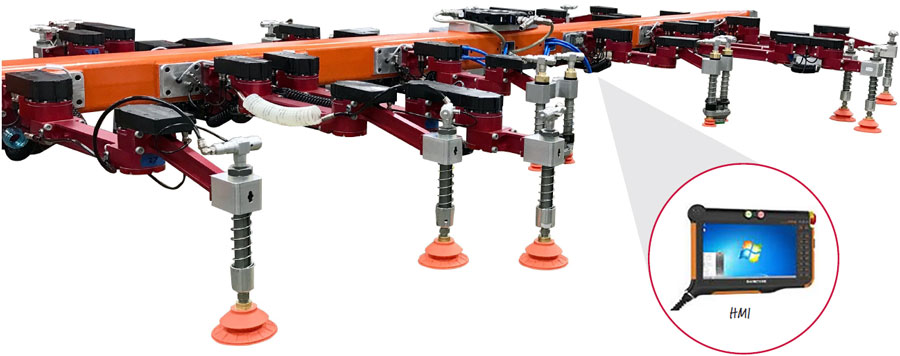

Norgren destacker with integrated HMI
HMI Highlights
Hardware: Industrial Tablet (Wireless), Pendent, PLC, PC
Operating Software: Java
Status Screen: Provides status. Cell PLC provides the commands for what job, when to change
Adjustment: Provides the ability to adjust position of arms and ability to save
Health: Provides information on the health of the system. Supports Industry 4.0 – tracking, trends, predictive maintenance
Destacker Product Highlights
Arm Weight: (1 arm, 2 joints) Application Specific, 6.8 kg (15 lbs) as shown
System Weight: Application Specific, 60 kg (130 lbs) as shown
Number of Arms: Application Specific, 3-16 typical as shown
Joints: Application Specific, 1-3 joints per arm typical as shown
Dynamic Arm rating (locked): 200 Nm (150 ft lb)
Dynamic Arm rating (unlocked): 30 Nm (20 ft lb)
Maximum Arm Reach: Variable to application needs (limited by dynamic rating)
Safety: Clutch slips at 30 Nm (20 ft lb) when un-locked
Position Sensing: Application Specific, absolute positioning technology joint to joint as shown
Life Span: 15 years, 50,000 Changes
Cell/Automation Communication to TT, Power: Ethernet IP, 24V <10 amp Typ

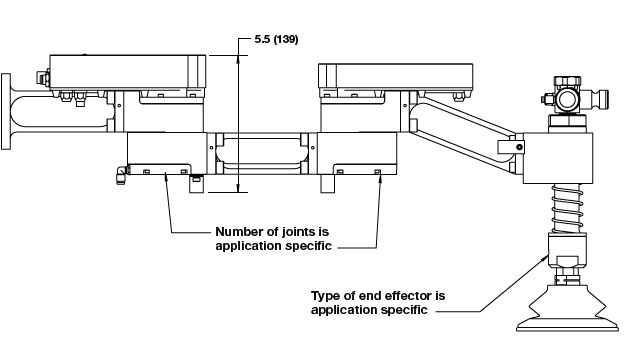

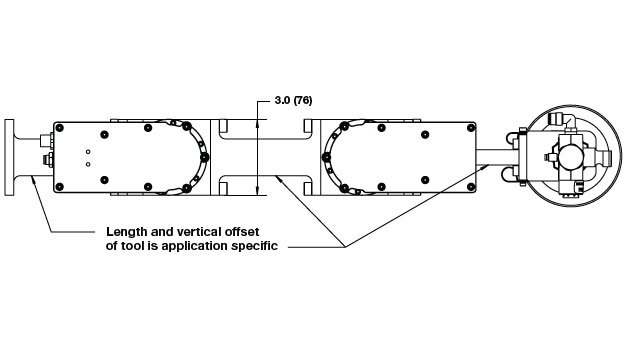

Note: All dimensions (in/mm) are for reference only. All highlight metrics can be customized and are based on the standard 4-arm application.
Applications
Stamping (automotive, white goods)
Glass Manufacturing
Ceramic Manufacturing
Assembly
Packaging
Destacking
Palletizing and Stacking
Watch: Norgren Destacker ready for installation in a press room
