Otinus fiber laser cutting machines are offered in three configurations designed to cover the full spectrum of sheet‑metal and tube‑processing needs:
Each model is built on the same foundation of precision, speed, and long‑term reliability, with power options from 1 kW to 30 kW for cutting everything from thin sheet to material up to 50 mm thick.

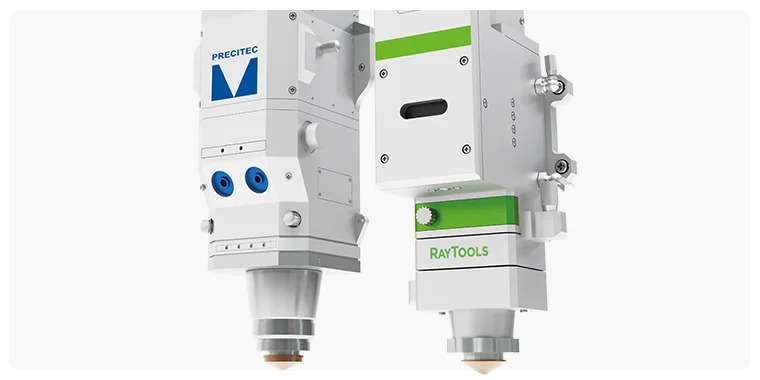

RayTools autofocus cutting heads come standard, with optional Precitec heads for maximum precision, higher speeds, and thick‑material processing.

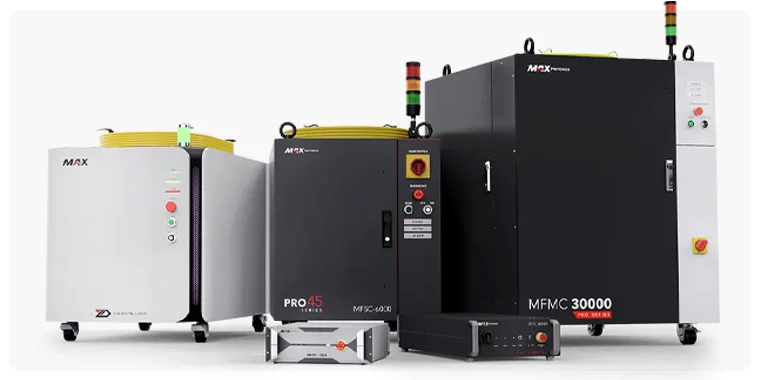

Raycus and Max Photonics sources offer stable performance, long service life, and options suited to both continuous production and cost‑efficient operation.
Otinus fiber lasers cut 1 mm stainless steel at speeds of up to 3 seconds per meter, placing them among the fastest in their class.
Fiber laser technology consumes up to 70% less energy than CO₂ systems, reducing operating costs significantly.

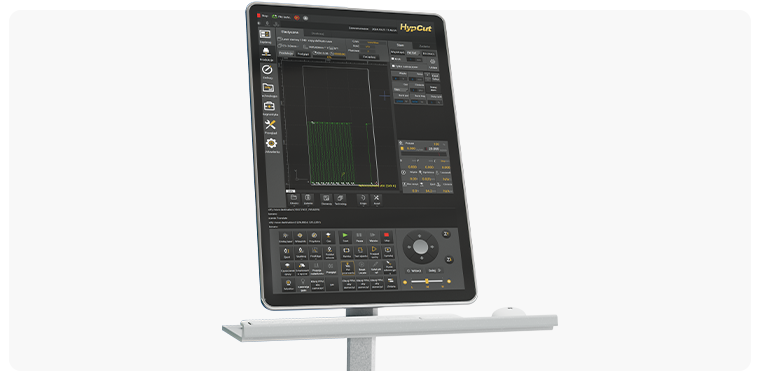

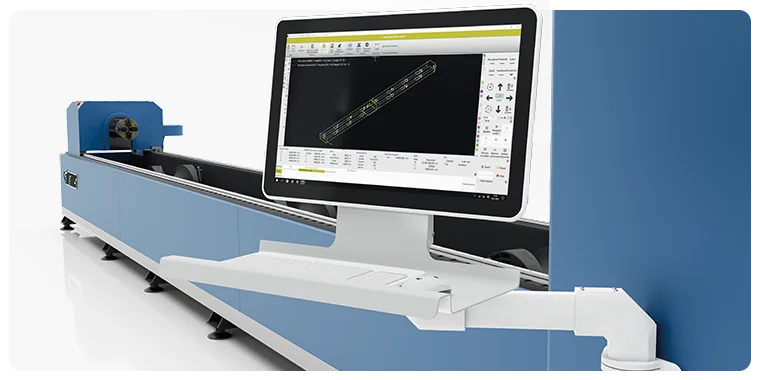

A modern touchscreen interface with CypCut software provides intuitive control, fast parameter input, and optimized cutting paths. Wireless remotes support safe operation around the machine.

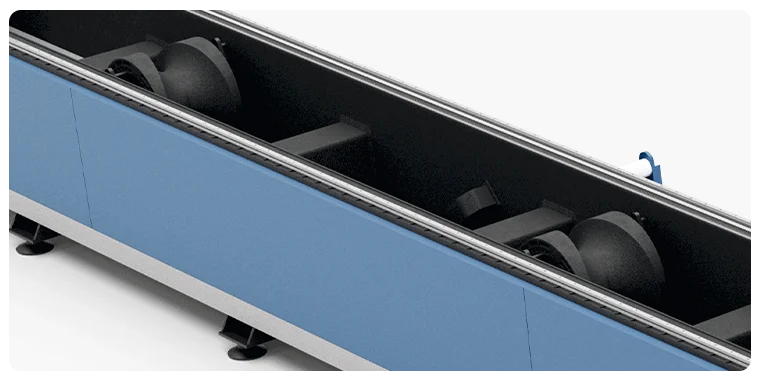

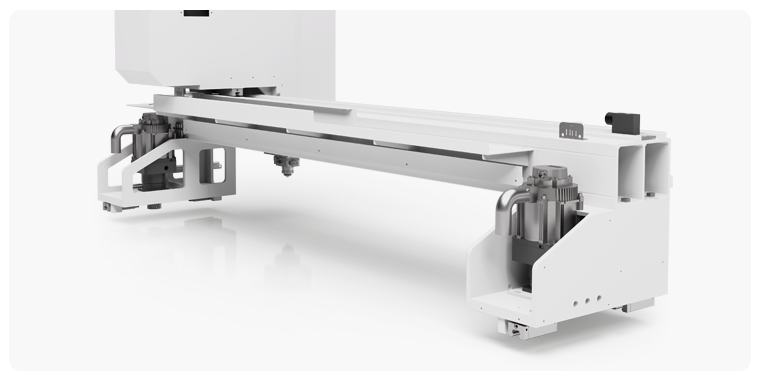

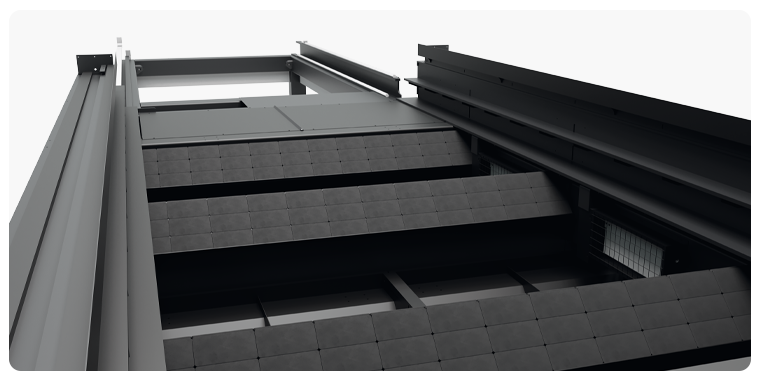

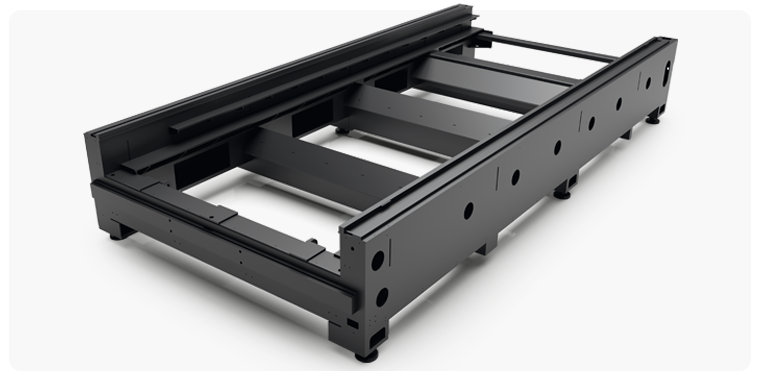

Aerospace‑grade aluminum beams and monolithic steel frames ensure rigidity, stability, and long‑term accuracy.
Every machine includes installation, operator training, and access to rapid service response with strong spare‑parts availability.
The table below provides insight into the cutting performance of each laser power level across common materials, making it easier to select the right configuration for your needs.
Material | 1 kW | 1.5 kW | 2 kW | 3 kW | 4 kW | 6 kW | 8 kW | 10 kW | 12 kW | 15 kW | 20 kW |
Black steel | 10 mm | 14 mm | 16 mm | 18 mm | 22 mm | 25 mm | 28 mm | 32 mm | 35 mm | 40 mm | 50 mm |
Stainless steel | 4 mm | 5 mm | 6 mm | 8 mm | 12 mm | 16 mm | 18 mm | 20 mm | 22 mm | 25 mm | 40 mm |
Aluminum | 3 mm | 4 mm | 5 mm | 6 mm | 10 mm | 14 mm | 16 mm | 18 mm | 20 mm | 26 mm | 40 mm |
Brass | 2 mm | 3 mm | 4 mm | 5 mm | 6 mm | 10 mm | 12 mm | 14 mm | 16 mm | 18 mm | 20 mm |

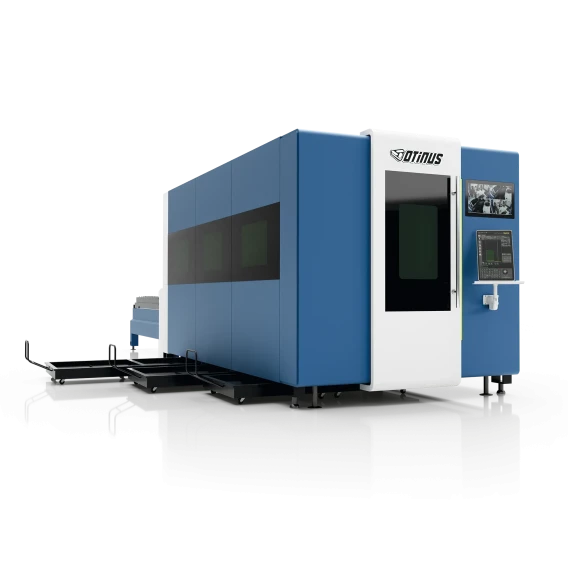

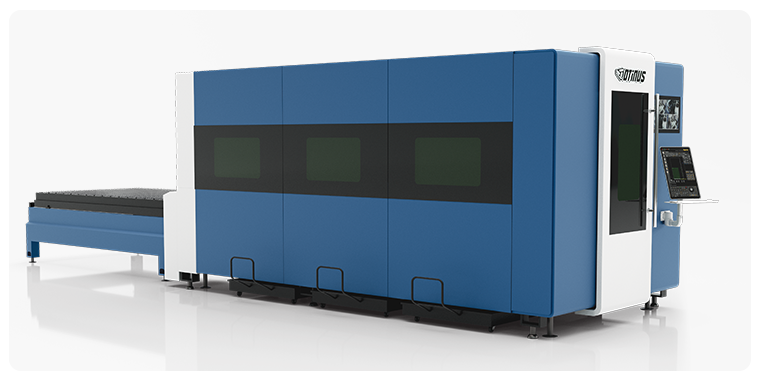

The BASE enclosed fiber laser system delivers precise sheet‑metal cutting in a fully protected working environment. Its enclosed housing shields the operator from sparks, fumes, and laser radiation, while the rigid steel frame and aluminum crossbeam maintain stable cutting performance across a wide range of materials. Designed for everyday production and custom fabrication, it provides dependable accuracy, smooth motion, and low operating noise in a compact, easy‑to‑operate platform.

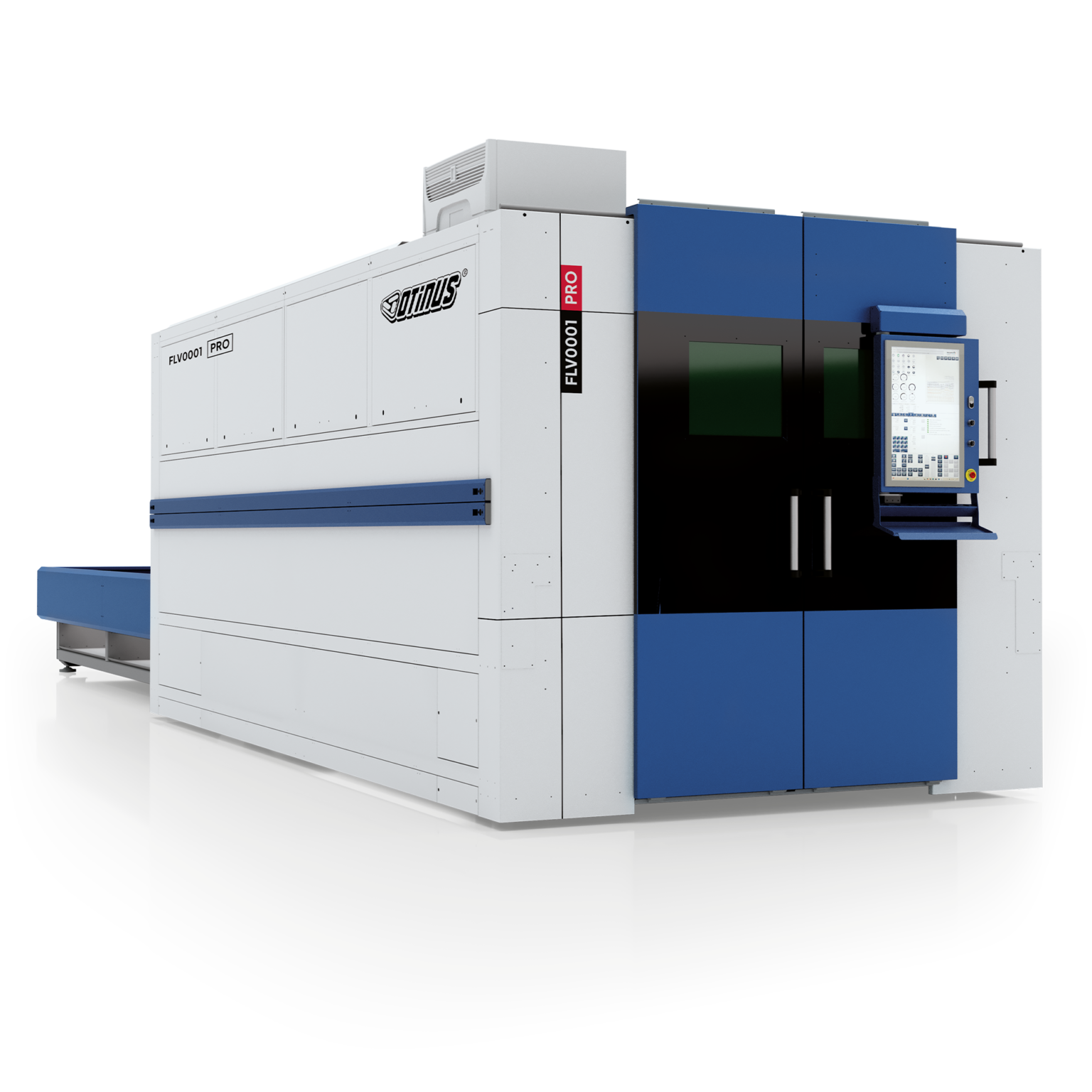

The PRO enclosed fiber laser system is engineered for operations that demand elevated cutting speeds, stronger structural stability, and consistent accuracy during long production runs. Its reinforced frame and upgraded motion components allow the machine to maintain precision at higher accelerations, making it a strong fit for facilities that run continuous workloads and require dependable, repeatable results. The fully enclosed architecture ensures a clean, safe working environment while supporting high‑duty industrial use.

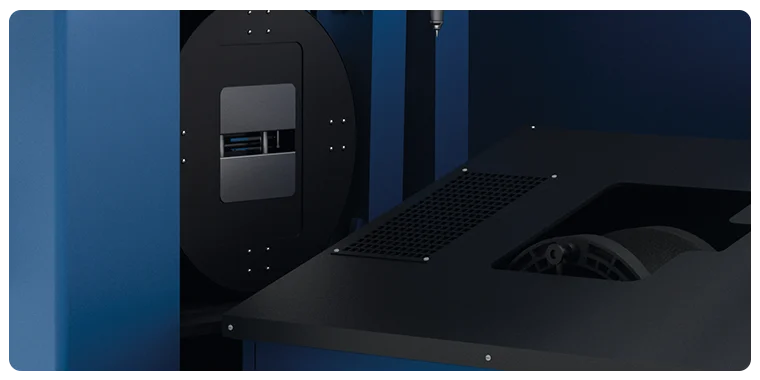

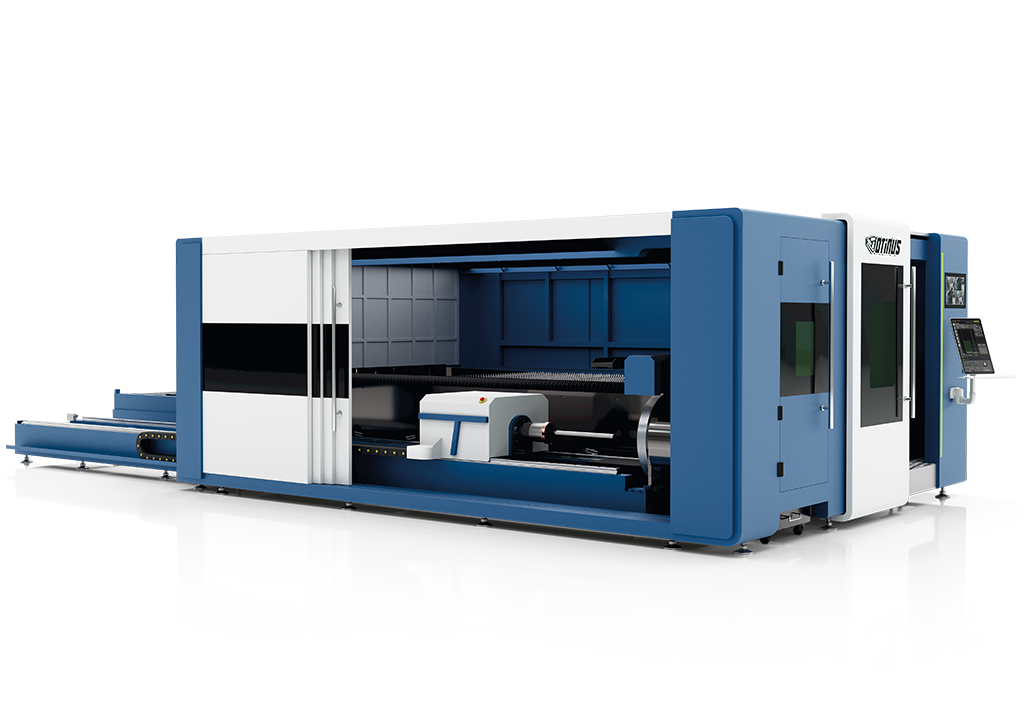

This enclosed system combines high‑precision sheet‑metal cutting with an integrated rotary unit for tubes and profiles, creating a versatile platform for shops that handle both flat and cylindrical materials. The fully enclosed housing maintains a clean, safe working environment, while the rotary module enables accurate processing of round, square, rectangular, and specialty profiles without the need for a separate machine. Its balanced design makes it a strong fit for mixed‑material workflows and production environments that value flexibility without compromising precision.

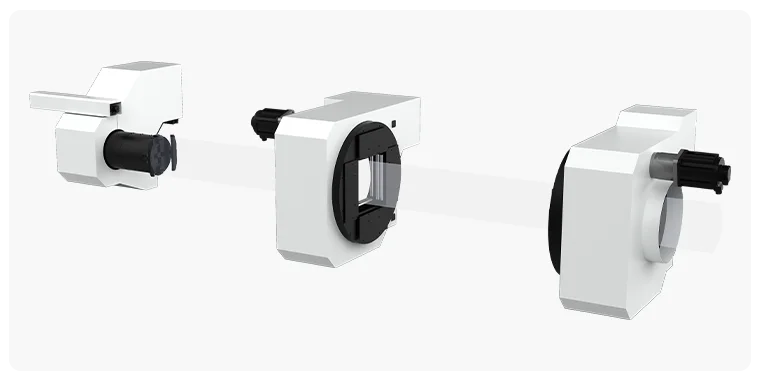

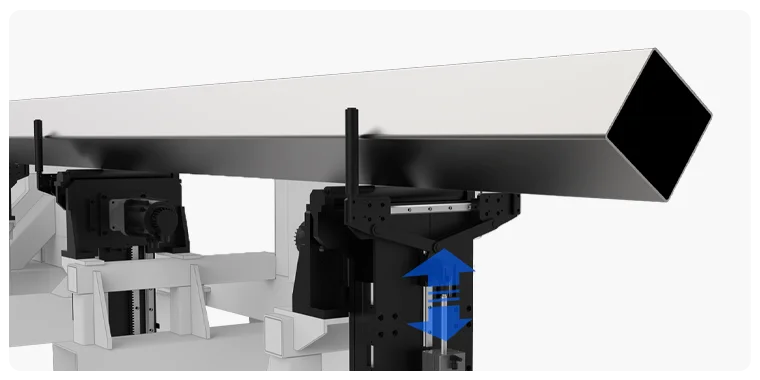

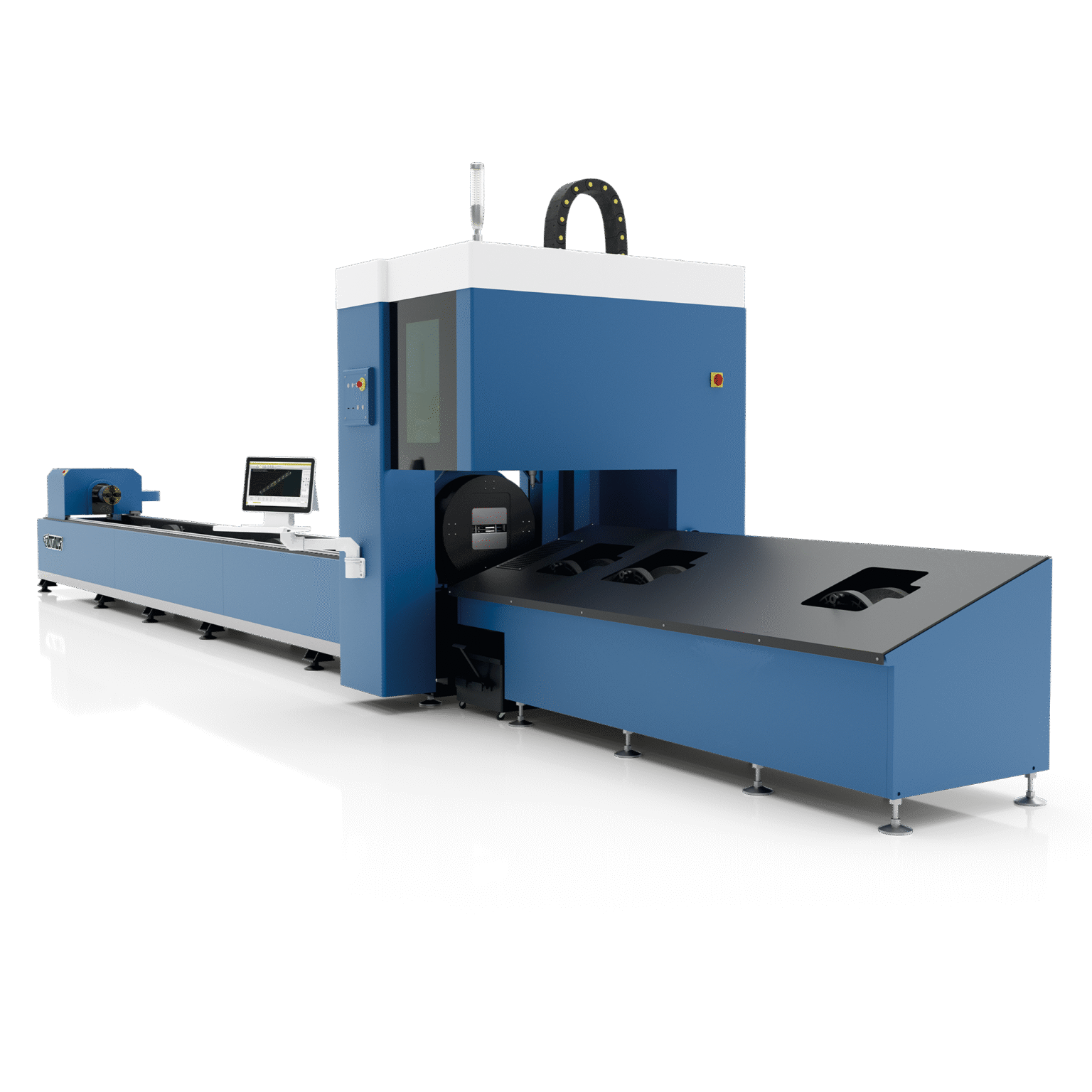

The Tube & Pipe Fiber Laser Cutter is engineered specifically for processing long tubes, profiles, and structural sections with high accuracy and repeatability. Its rigid welded frame, precision rotary chuck, and advanced support systems ensure stable handling of long or heavy materials, while the cutting head delivers clean edges across round, square, rectangular, and specialty profiles. Designed for both serial production and complex one‑off components, it provides the reliability and control needed for demanding tube‑fabrication workflows.
High power, precision, and perfect cutting in every dimension – that’s how the Otinus fiber laser cutter for tubes and profiles performs. Advanced fiber technology ensures fast and accurate cutting even for the most demanding components. Otinus – the power of technology in your production.
A well‑matched fiber laser system depends on the type of work you handle most often—sheet metal, tubes and profiles, or a mix of both. Each Otinus model is built on the same high‑precision platform, but their configurations are optimized for different production environments. The comparison below highlights how each machine aligns with common fabrication needs, making it easier to select the system that fits your workflow, material mix, and throughput requirements.
Requirement / Workflow Need | Enclosed BASE | Enclosed PRO | Enclosed + Tube Cutter | Tube & Pipe Cutter |
Fully enclosed cutting area | Yes | Yes | Yes | No (open tube platform) |
Cuts sheet metal | Yes | Yes | Yes | No |
Cuts tubes & profiles | No | No | Yes | Yes |
Best accuracy at high speed | Good | Excellent | Good | Excellent (for tubes) |
High‑duty continuous production | Suitable | Optimized for this | Suitable | Optimized for tube production |
Reinforced frame for high dynamics | No | Yes | No | Yes |
Automatic parameter optimization | No | Yes | No | No |
Touchscreen control | Yes | Yes (advanced) | Yes | Yes |
Best for mixed sheet‑metal production | Yes | Yes | Yes | No |
Best for shops needing both sheet + tube | No | No | Yes | No |
Best for dedicated tube‑only production | No | No | Possible | Yes |
Floor‑space efficient | Yes | Yes | Moderate | Lowest (long footprint) |
A dependable enclosed sheet‑metal cutter for general‑purpose production. Best for shops that want enclosure safety and clean cutting without the higher‑speed dynamics of the PRO.
A higher‑performance enclosed cutter with reinforced mechanics and faster, more stable motion. Best for continuous production, tighter tolerances, and higher throughput.
A dual‑purpose enclosed system for shops that cut both sheets and tubes but don’t need a full dedicated tube‑cutting machine.
A dedicated tube‑processing platform with long‑material support, rotary chucks, and optional 3D cutting. Best for high‑volume tube fabrication.
