Overview
The Pascal Die Leveler (MDH) is a mold positioning device that works with the mold's locate ring to cut mold setting time. The locate ring fixes one axis, and raising the automated die leveler fixes the other. Together they minimize mold setting time.
Key Features
- Automated leveling
- The die leveler rises to level the mold.
- Works with the locate ring
- The locate ring fixes the Y axis; raising the die leveler fixes the X axis.
- Shorter mold setting time
- Pascal designs the locate ring and die leveler pairing to minimize mold setting time.
- Air cylinder drive
- Pascal's diagram shows a pusher on guides, driven by an air cylinder.
- Mag clamp compatible
- Pascal shows the die leveler below a mag clamp, with a magnetic plate extension.
Product Line / Models

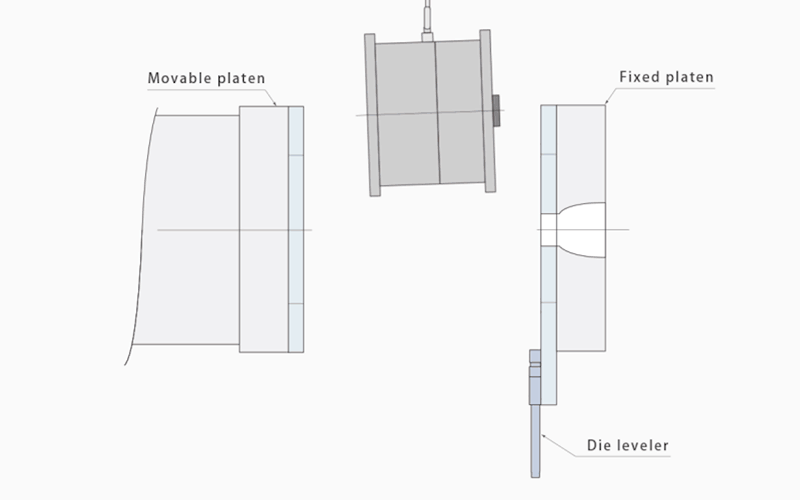

The Die Leveler MDH works with these parts, as shown in Pascal's layout:
- Die leveler MDH – Pusher on guides, raised by an air cylinder to level the mold and fix the X axis.
- Locate ring – The mold's locate ring fixes the Y axis.
- Magnetic plate extension – Shown with the die leveler on mag clamp installations.
Applications & Benefits
- Faster mold setting: Pascal pairs the locate ring with the automated die leveler to minimize mold setting time.
- Two-axis positioning: The locate ring fixes the Y axis, and raising the die leveler fixes the X axis.

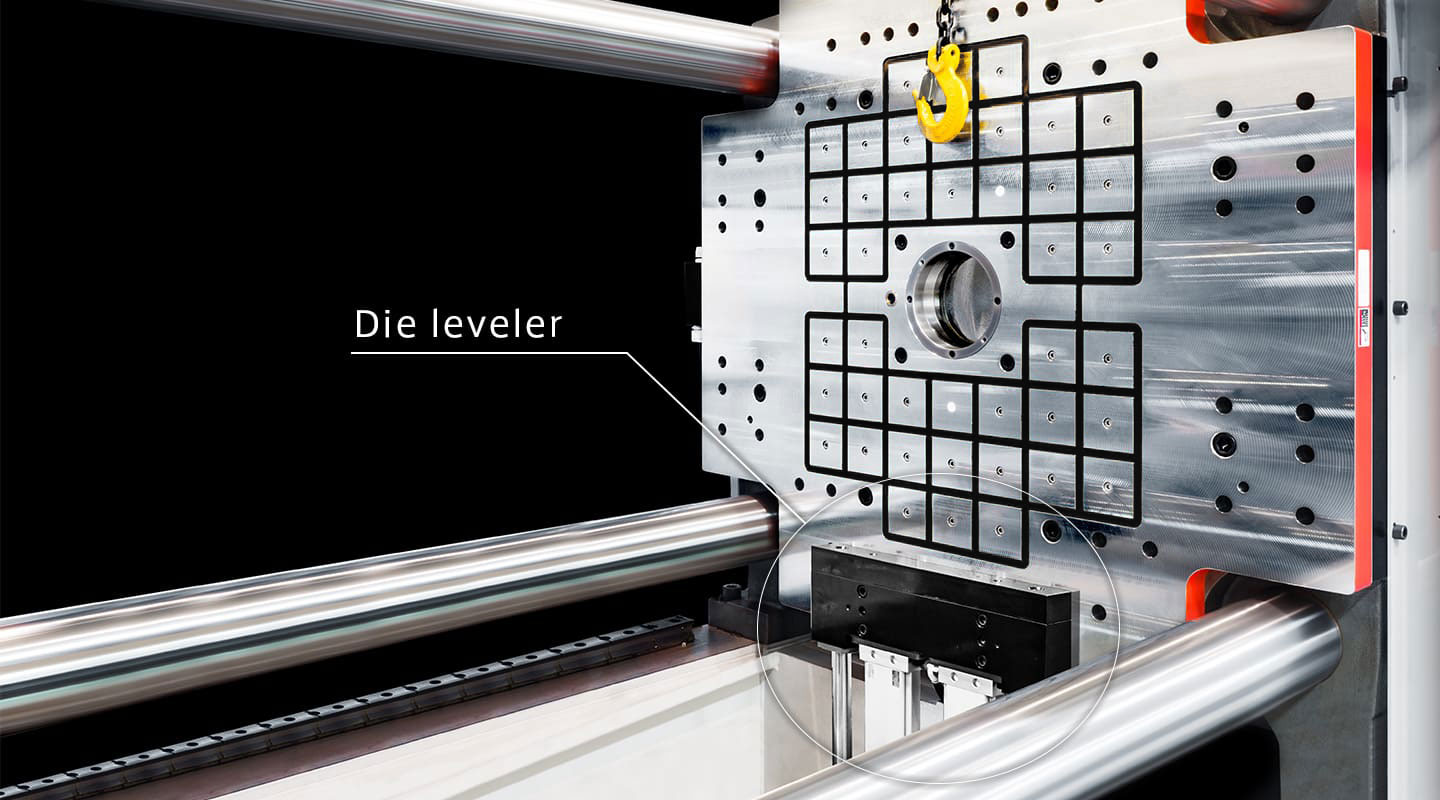

- Mag clamp machines: Pascal shows the die leveler installed below a mag clamp on the fixed platen.
How to Choose the Right Pascal Die Leveler
- Start with your machine tonnage and platen dimensions.
- Confirm your molds use a locate ring and note its size.
- Check mold sizes and weights and how molds are loaded.
- Check whether mag clamps are in use or planned, and confirm plant air for the air cylinder.
Why Pascal Die Levelers Are Trusted
- Simple two-axis location: Pascal's design uses the locate ring for the Y axis and the die leveler for the X axis.
- Proven in production: Pascal demonstrates the die leveler on a 2,500 kN injection molding machine.
- Part of a complete system: Pascal pairs the die leveler with its mag clamps for quick mold change.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Machine make, model and tonnage
- Platen dimensions and tie-bar spacing
- Locate ring size
- Mold sizes (width, height, thickness) and weights
- Current clamping method and number of mold changes per shift
- Contact PRI to discuss specs, lead times, and installation support.
