Pascal Die Lifters & Die Roller Systems

OVerview

Pascal’s Die-Lifter and Die-Roller systems are engineered to simplify the loading, unloading, and positioning of dies in press environments. Whether you’re handling very heavy dies or smaller/mid-sized tooling, these devices reduce physical strain, improve safety, and speed up changeover processes. No more struggling with manual lifting or relying exclusively on cranes for die movement.

Key Features & Benefits

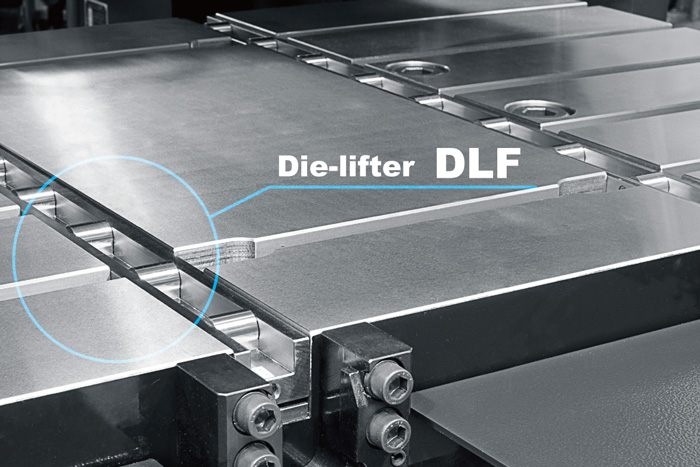

Hydraulic Die-Lifter (DLF Series)

Heavy dies are lifted using powerful hydraulic cylinders. Once lifted, the die can be moved with minimal force across rollers. Ideal for large dies up to 80 mm width and very high loads.

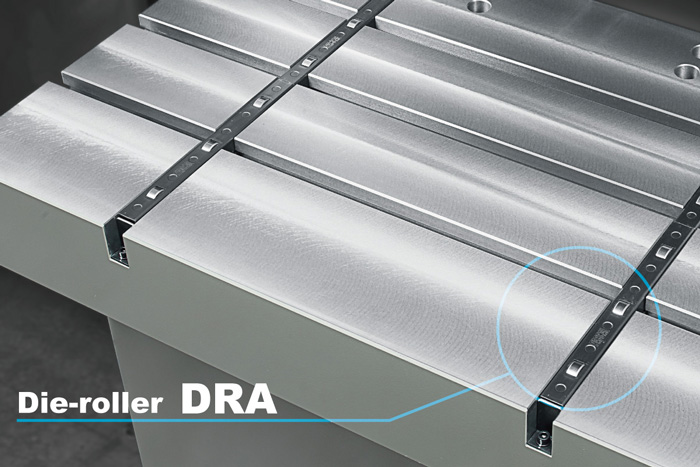

Spring-Lifting Die Roller (DRA Series)

• For smaller to mid-sized dies, the spring-lifted rollers offer a simple, economical solution.
• No power source required—just fit into the existing T-slot, clamp die down, and the springs do the work.

Fits Standard Slots

• Narrow profiles designed to fit most existing T-slots.
• This makes retrofitting easier and reduces the need for major press modifications.

Various Widths & Load Capacities

• Multiple model sizes (e.g. DLF28, DLF50, DLF80) cover different widths, strokes, and maximum loads to match your die size, press bed configuration, and lift/transport requirements.

Durability & Low Maintenance

• Hydraulic lifter models handle high loads, shocks, and offer robust load capacities.
• Spring roller units have fewer moving parts, no hydraulics or external power, which keeps maintenance simpler and downtime lower.

Typical Technical Data (DLF Series Examples)

Applications & Use Cases

• High-volume stamping operations where fast, repeated die changeovers are needed.
• Heavy dies that are challenging to slide manually—hydraulic lifters make movement smoother and safer.
• Mid-sized tooling where adding heavy lifters isn’t cost-effective; spring-rollers offer a lighter, simpler solution.
• Retrofitting existing presses: since the rollers and lifters are designed to fit standard T-slots, many presses can be upgraded without major modifications.

Things to Consider When Choosing

• Die weight and size — to pick the right width, number of rollers, and whether hydraulic is required.
• Available slot dimensions — width, depth, and whether a U-cut or specific bolster features affect fit.
• Lifting stroke and required clearance under the die to engage rollers.
• Whether a power source (hydraulic) is acceptable or if a non-powered, simpler spring design is preferred.
• Operating environment: temperature, exposure to press coolant, chips/dust, etc., which may affect durability.

Why Choose Pascal’s Die Lifters & Rollers

• Proven engineering with a wide span of models to fit different die weights and press configurations.
• Solutions for both heavy-duty and economical needs.
• Lower risk of injury and damage by reducing manual lifting.
• Many years of field use under harsh conditions.
• Options that are relatively simple to install and maintain.

Ordering & Spec Checklist

To help us get you the right die lifter or roller solution, please provide:

1. Die weight and dimensions
2. Press bolster & T-slot size / depth
3. Required lifting height or stroke
4. Whether you want hydraulic lifter or spring-roller (or both)
5. Operating conditions (heat, chips, coolant, etc.)

Contact us for quotes, lead times, and fitting details.
