Overview

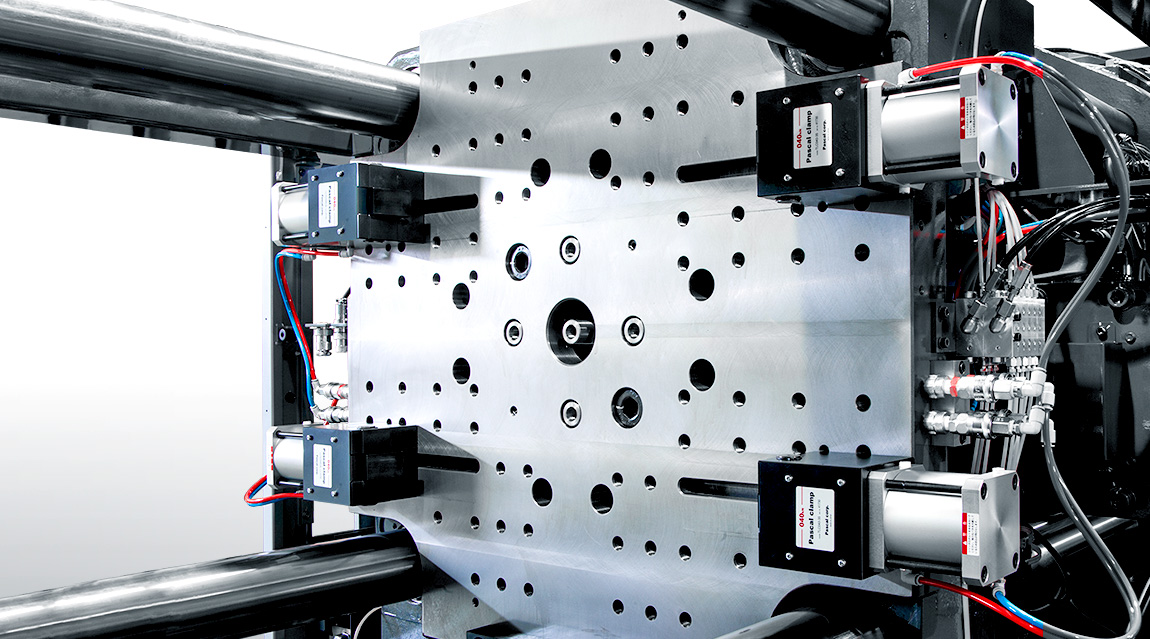

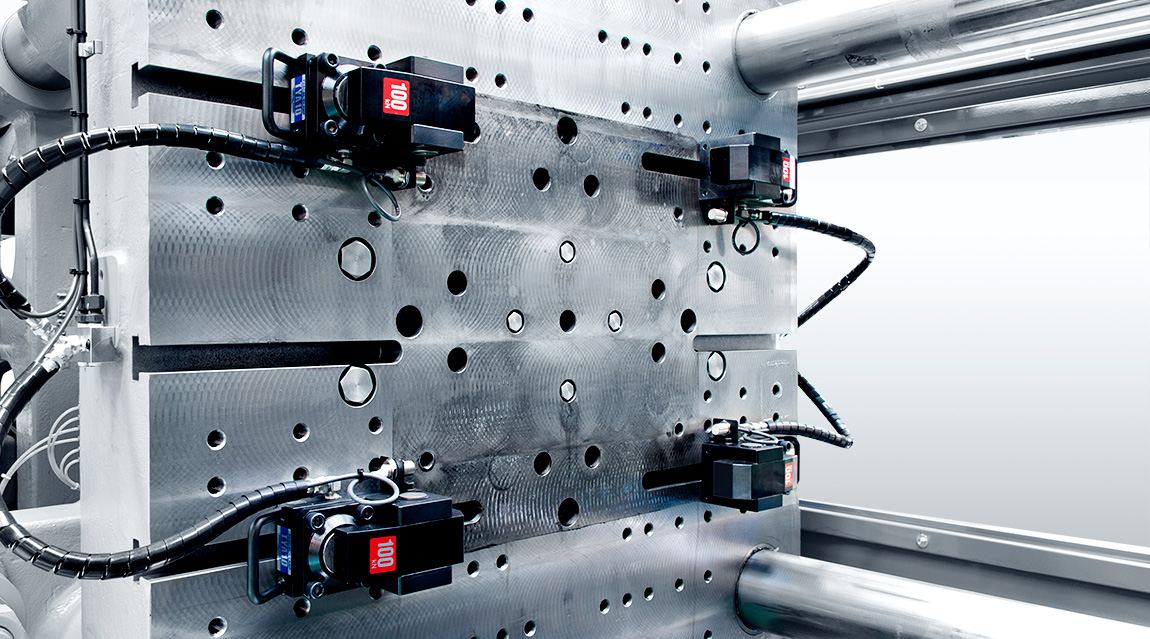

Pascal hydraulic clamps and air clamps hold the mold to the injection molding machine platen so molds can be clamped and released without hand-tightening bolts. Pascal offers slidable, automatic slidable, T-slot-less slidable and bolted types in both hydraulic and air versions. Pascal shows them installed on machines such as a 4,500 kN machine (hydraulic TYA) and a 2,200 kN machine (air TLC).
Key Features
- Hydraulic or air power
- Choose hydraulic clamps or air clamps to match the power available at the machine.
- Slidable and automatic slidable types
- Slidable clamps such as TYA and TLC are offered, and the TYC-Z / TYC-R and TLC-Z / TLC-R versions slide automatically.
- Long stroke for varying plate thickness

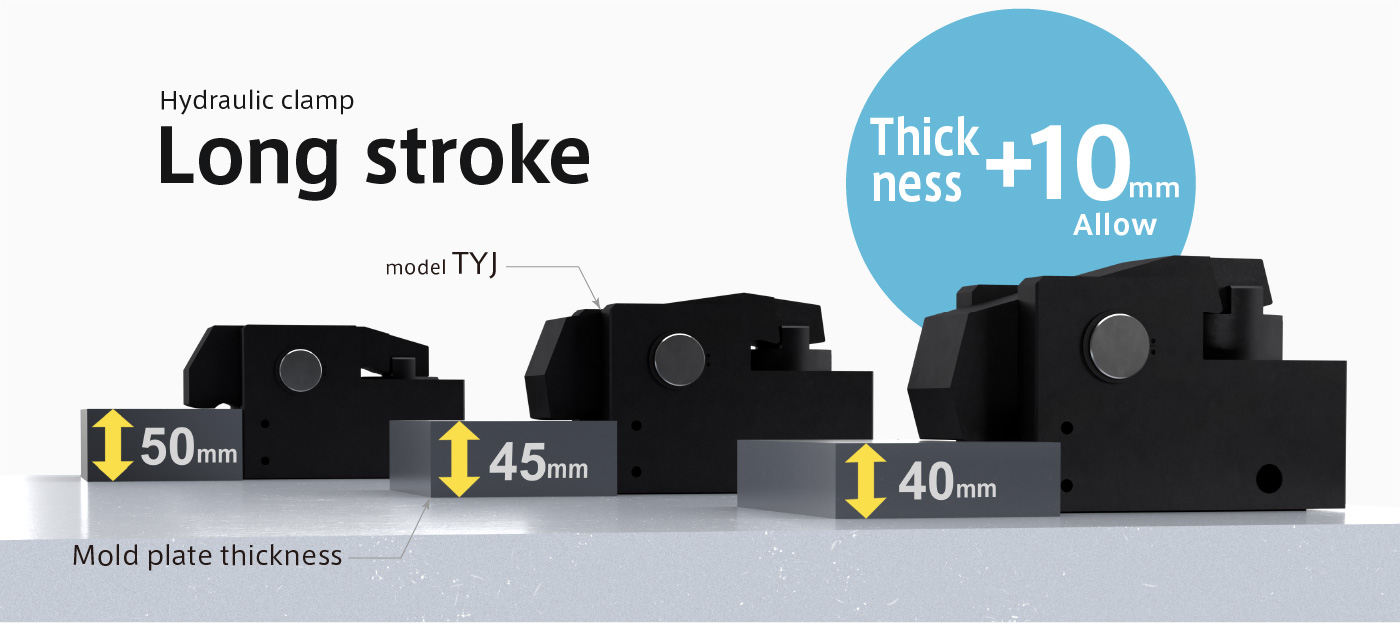

- TYB accommodates a 5 mm difference in clamping height, or up to 15 mm with a lever spacer. TYJ absorbs up to 10 mm of dimensional variation.
- T-slot-less versions
- TYA-M (hydraulic) and TLA-M (air) are slidable types that do not rely on T-slots.
- Bolted types by machine size
- TME is sized for small and medium machines and TKB for medium and large machines. TLA is the bolted air clamp.
- Mold detection

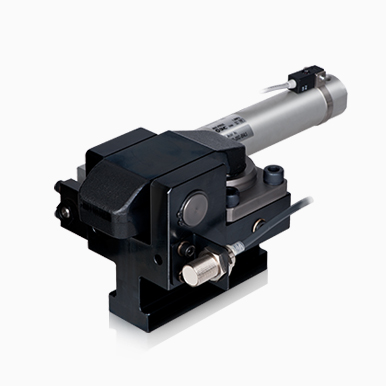

- Pascal shows the TYA with a handle and a mold detect proximity switch.
- Shared controls
- The ESTL operation panel and ECTL control box work with both hydraulic and air clamps. The ELC-B simplified panel offers a lower-cost, easy-to-use system for basic clamps.
Product Line / Models
Pascal's hydraulic and air mold clamp lineup includes:

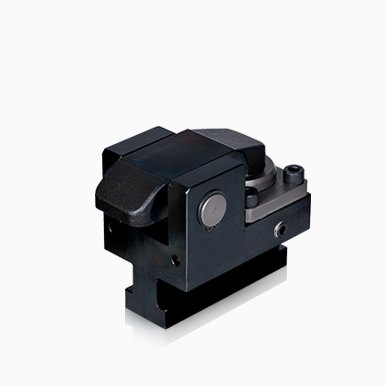

- TYA – Standard slidable hydraulic clamp.
- TYB – Long stroke slidable hydraulic clamp; accommodates a 5 mm difference in clamping height, max 15 mm with a lever spacer.
- TYJ – Long stroke slidable hydraulic clamp; absorbs up to 10 mm of dimensional variation.
- TYC-Z / TYC-R – Automatic slidable hydraulic clamp.
- TYA-M – T-slot-less slidable hydraulic clamp.
- TME / TKB – Bolted hydraulic clamps for small and medium (TME) or medium and large (TKB) injection molding machines.

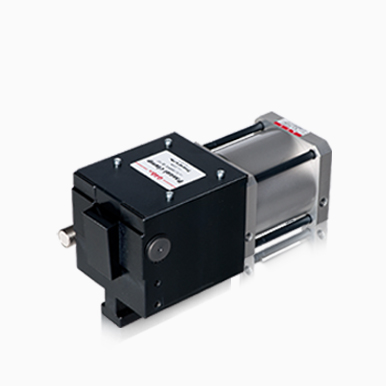

- TLC / TLC-Z / TLC-R – Slidable and automatic slidable air clamps.
- TLA-M / TLA – T-slot-less slidable (TLA-M) and bolted (TLA) air clamps.
- ESTL / ECTL / ELC-B – Operation panel, control box and simplified operation panel for clamp control.
Applications & Benefits
- Faster, safer mold changes: Clamps are operated from a panel instead of hand-tightening bolts inside the machine.
- Mixed mold plate thickness: Long stroke TYB and TYJ clamps absorb variation between molds.
- Horizontal loading: Pascal shows horizontal loading with a positioning cylinder in the machine.
- Wide machine range: Bolted TME and TKB clamps cover small through large injection molding machines.
Technical Specifications (Examples)
Model lineup from Pascal's literature, grouped by clamp type and mounting style. For an exact match, send us your machine tonnage, platen size and mold dimensions.
| | | |
| TYA (standard), TYB and TYJ (long stroke), TYC-Z / TYC-R (automatic) | | TME (small and medium IMM), TKB (medium and large IMM) |
| TLC, TLC-Z / TLC-R (automatic) | | |
How to Choose the Right Pascal Mold Clamp
- Start with your machine tonnage, platen dimensions and whether the platen has T-slots.
- Choose hydraulic or air power based on what is available at the machine.
- Decide between slidable, automatic slidable and bolted mounting, and how molds are loaded (vertical or horizontal).
- Check how much mold plate thickness varies; long stroke TYB or TYJ clamps absorb variation. Pascal warns that clamp height must stay within range to prevent the mold from falling.
- Pick the control: the ESTL panel and ECTL control box, or the simplified ELC-B panel.
Why Pascal Mold Clamps Are Trusted
- Proven on production machines: Pascal shows TYA hydraulic clamps on a 4,500 kN machine and TLC air clamps on a 2,200 kN machine.
- Full lineup: Pascal offers hydraulic and air versions in slidable, automatic, T-slot-less and bolted types, plus piping materials, maintenance parts and special types.
- Engineering support: Pascal provides 2D CAD (DXF) for TYA, TYC-Z / TYC-R, TME, TKB and TLA.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Machine make, model and tonnage
- Platen dimensions and T-slot layout
- Mold sizes, weights and mold plate thickness range
- Hydraulic or air power available at the machine
- Vertical or horizontal loading
- Number of mold changes per shift
- Contact PRI to discuss specs, lead times, and installation support.
