Overview
The Pascal SMP is a 180 degree rotator for the upper die. A magnetic clamp holds the die while the rotator turns it over in 40 seconds, so the die doesn't have to be flipped on crane wire ropes. Pascal developed it to prevent die fall accidents caused by wire ropes cutting or coming loose.
Key Features
- 180 degree rotation in 40 seconds
- Turns the upper die fully over in about 40 seconds.

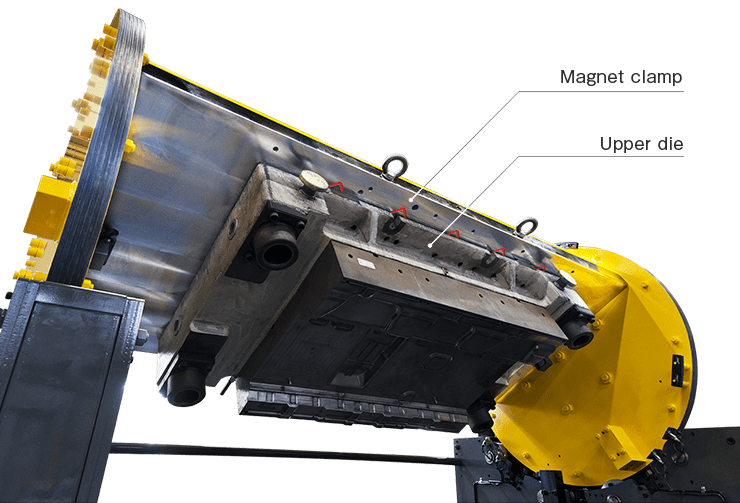

- Magnetic clamp
- Holds the die instantly with a magnetic clamp during rotation.
- Rigid drive

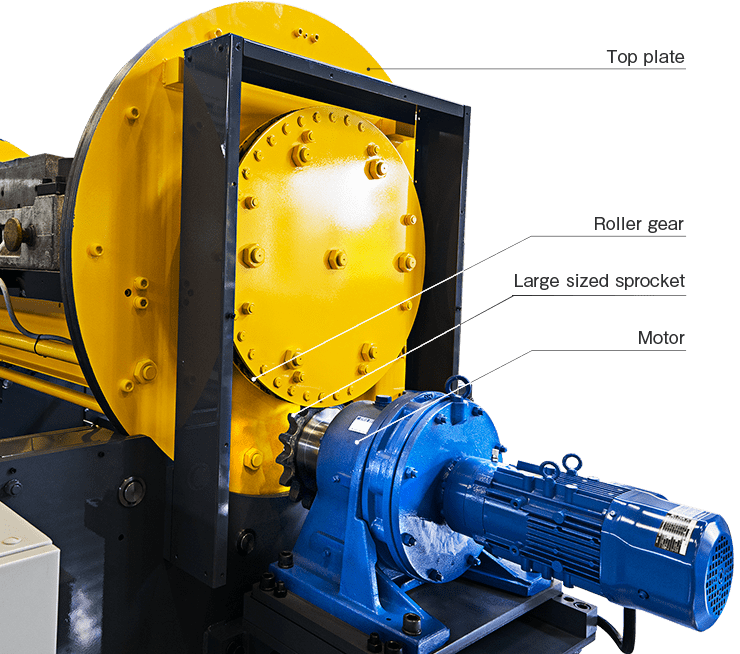

- A roller gear and large sprocket, driven by a motor, turn the top plate.
- No wire rope flipping
- Designed to prevent die falls caused by a cut or disconnected wire rope.
Product Line / Models
The SMP is built around these main components:
- SMP rotator – 180 degree rotary unit for upper dies.
- Magnetic clamp top plate – Holds the upper die during rotation.
- Roller gear drive – Motor, large sprocket and roller gear that turn the top plate.
Applications & Benefits
- Separation, rotation and docking: Pascal lists three functions: separating the upper die from the lower die, turning it 180°, and re-engaging the dies.
- Fall prevention: Addresses die fall accidents caused by wire rope failure.
- Quick turnover: A full 180 degree turn takes about 40 seconds.
How to Choose the Right Pascal Upper Die Rotator
- Start with the weight and dimensions of your heaviest upper die.
- Confirm the die can be held by a magnetic clamp.
- Check the floor space and how dies are brought to and from the rotator.
- Review the full SMP catalog with PRI for size options.
Why Pascal Upper Die Rotators Are Trusted
- First of its kind: Pascal describes the SMP as the world's first rotary type upper die rotator.
- Safety focus: Designed to stop die falls caused by wire rope cutting or disconnection.
- Rigid drive: The top plate turns on a roller gear and large sprocket.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Upper die weight and dimensions
- Die material and clamping surface, for the magnetic clamp
- How dies are moved to and from the rotator
- Available floor space
- How often upper dies are turned over
- Contact PRI to discuss specs, lead times, and installation support.
