Overview

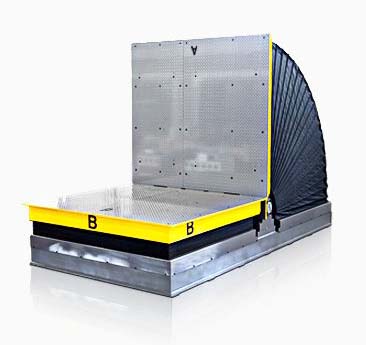

The Pascal SMF is a flat type rotator that turns heavy molds and large components 90 degrees without an overhead crane. It can be set into the floor so the table sits flush, and it handles loads from 3 to 30 tons. It comes in a hydraulic cylinder driven version (SMF H) and a motor driven version (SMF M).
Key Features
- Flat, low profile
- The flat table can be set into the floor so the rotator sits flush.
- Drive-over table
- As an option, the table is rigid enough for a forklift or truck to pass over it.
- Wide weight range
- Rotatable weight of 3 to 30 tons across the SMF line.
- Roller gear drive
- Pascal says the roller gear drive, on the motor driven SMF M (3 and 5 ton), gives excellent durability and safety.
- Maintenance-free electric drive
- Pascal says the electric motor driven system, on the motor driven SMF M (3 and 5 ton), is maintenance free.

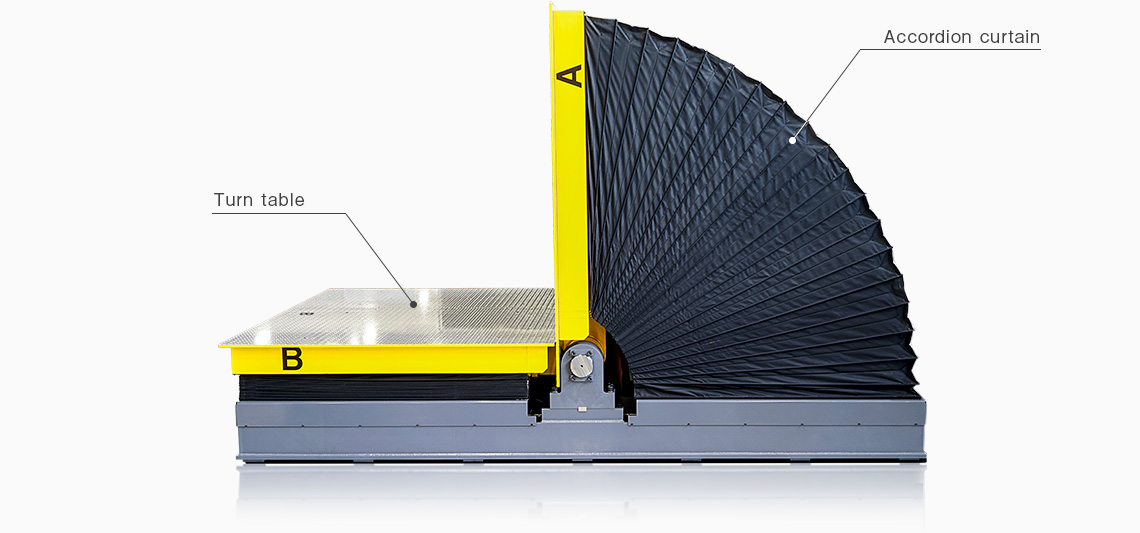

- Accordion curtain
- An accordion curtain closes the side of the rotator as the table turns.
Product Line / Models
The SMF comes with two drive options:
- SMF H – Hydraulic cylinder driven flat type rotator.
- SMF M – Motor driven flat type rotator.
Applications & Benefits
- Plastic and die cast molds: Pascal cites a large sales record for rotating molds used on plastic and die casting machines.
- Coils and castings: Also used for coil materials and large casting parts.

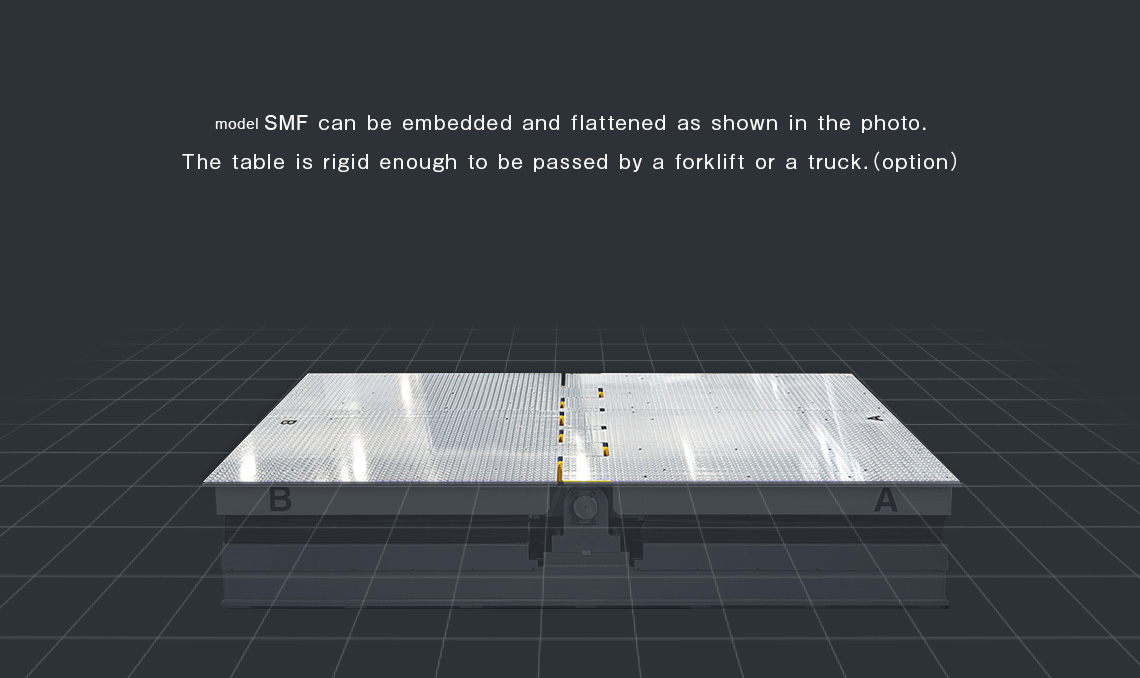

- Floor-level work areas: Set flush into the floor, the table can be driven over by a forklift or truck (option).
- Crane-free rotation: Pascal recommends the rotator in place of an overhead crane for safe, quick turning.
How to Choose the Right Pascal Flat Type Rotator
- Start with the weight and dimensions of the heaviest mold or part you need to turn.
- Choose the drive: hydraulic cylinder (SMF H) or motor (SMF M).
- Decide whether the rotator will sit on the floor or be set flush into it, and whether vehicles need to drive over it.
- Confirm how loads are brought to the rotator and the floor space available.
Why Pascal Flat Type Rotators Are Trusted
- Established record: Pascal reports significant sales of rotators for plastic and die casting molds, coils and large castings.
- Durable drive: Pascal says the roller gear drive on the SMF M gives excellent durability and safety.
- Part of a rotator family: The SMF sits alongside Pascal's SMR rolling type rotators.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Weight and dimensions of the molds or parts to be turned
- Preferred drive: hydraulic or motor
- Floor mounting or flush installation, and any forklift or truck traffic
- Available floor space
- How loads are moved to and from the rotator
- Contact PRI to discuss specs, lead times, and installation support.
