Overview
PAX spray cabinets lubricate the top and bottom of coil stock as it enters the die, without the cumbersome, maintenance-heavy roller systems. The cabinet sprays, contains and collects the lubricant, and a recycling port returns excess lube.
Key Features
- Non-contact lubrication
- Nozzles spray the stock from above and below, so nothing rides on the material.
- Adjustable spray nozzles
- Nozzles adjust to put lube where the stock needs it.
- Contains and collects lube
- The cabinet keeps spray contained, and a recycling port collects excess lube.

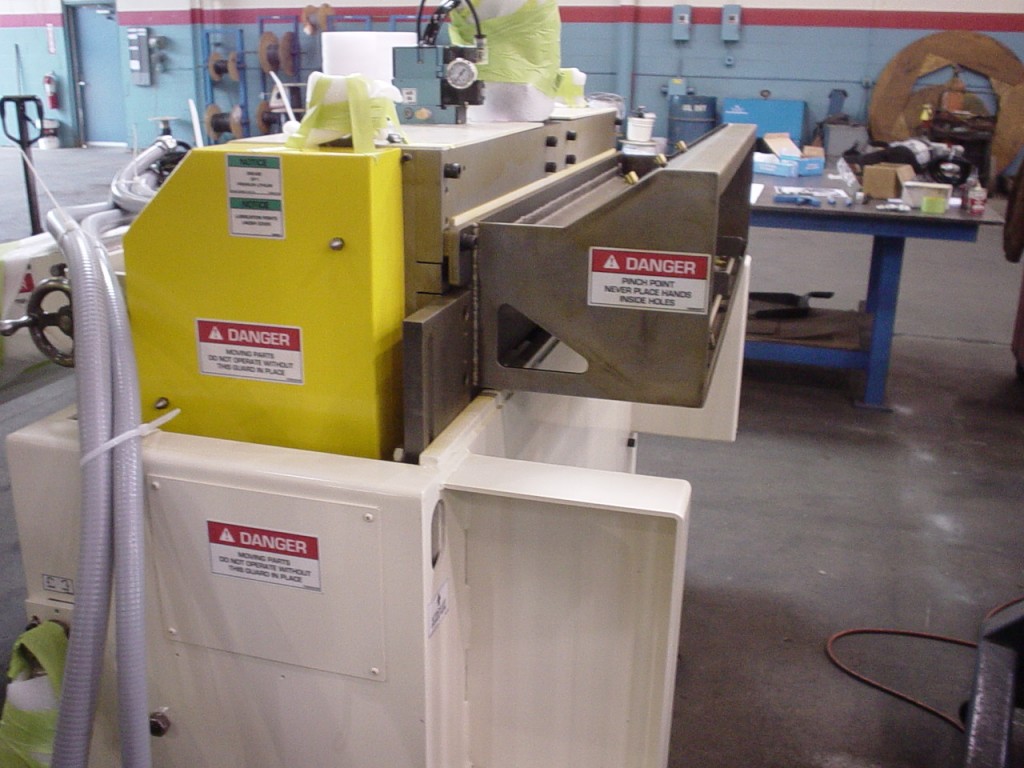

- Mounts to the roll feed
- Cabinets typically attach to the roll feeder and adjust with it.
- No inherent wear items
- Unlike roller coaters, spray cabinets have no inherent wear items.
- Works with PAX lube systems
- Spray cabinets are compatible with all PAX lubrication systems.
Product Line / Models
Three cabinet designs, chosen by the space between feed and press:

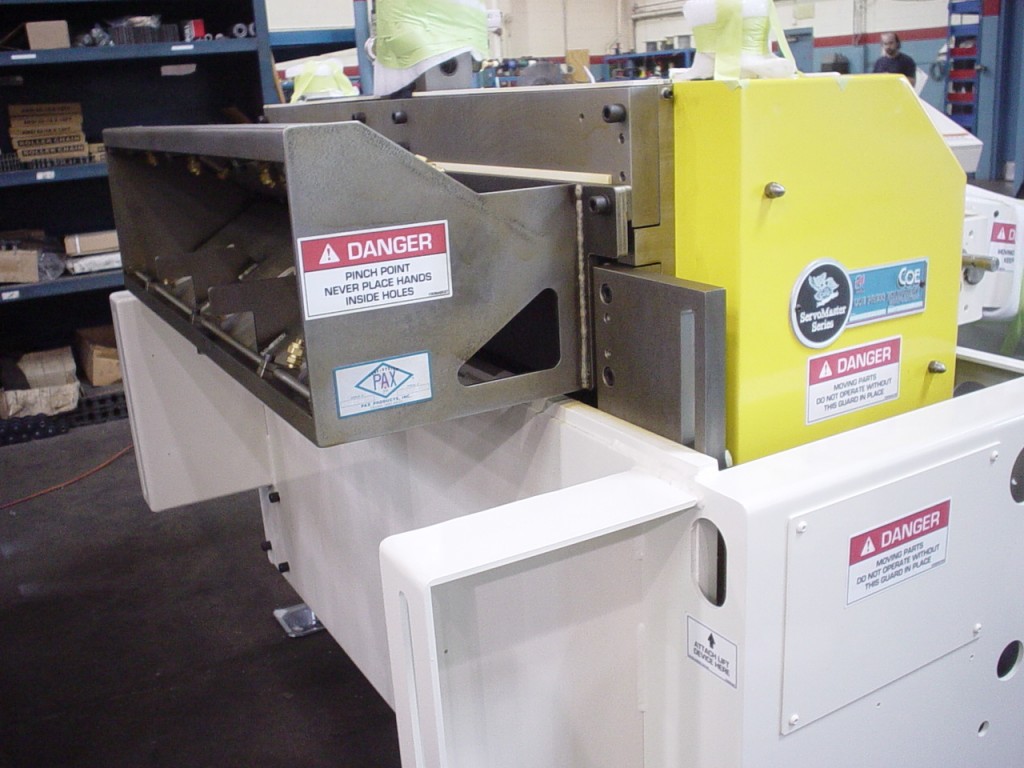

- Funnel-shaped cabinet – Mounts to the roll feed and extends into the press upright opening.
- Vertical cabinet – Typically mounts between the roll feed and the press.
- Short funnel cabinet – Mounts on the feed, with the cabinet between the press and the feed.
Applications & Benefits
- Galvanized and dirty material: PAX rates spray cabinets better than roller coaters for galvanized and dirty stock.
- Very thin material: Non-contact spray suits extremely thin stock.
- Contoured parts: Spray can apply lube to contoured parts.
- Cleaner pressroom: Lube is contained in the cabinet, and excess can be recycled.
How to Choose the Right PAX Spray Cabinet
- Space between the roll feed and the press, and the press upright opening.
- Maximum coil stock width the feeder accepts.
- Stock material, thickness and coating (galvanized, dirty or very thin stock favors a spray cabinet).
- Lubricant type. Roller coaters apply thicker lubes and a more even coat; spray cabinets need no wear parts.
- Whether you already run a PAX lubrication system, such as Pre-Pressurized or V-Series.
Why PAX Spray Cabinets Are Trusted
- Built by stampers: PAX designs pressroom equipment "for stampers by stampers."
- Low maintenance: No rollers and no inherent wear items.
- One system: Cabinets work with PAX lubrication systems, from the same maker as the pumps and nozzles.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Feed make and model, and maximum stock width
- Space between feed and press, and press upright opening
- Material, thickness and coating
- Lubricant type
- Existing lubrication system, if any
- Contact PRI to discuss specs, lead times, and installation support.
