PAX Pre‑Pressurized Lubrication Systems

Reliable, airless in‑die lubrication engineered for precision and efficiency.

Overview — What This System Is

The PAX Pre‑Pressurized Lubrication System is a proven, airless lubrication solution designed specifically for metal stamping operations. Developed by tool and die craftsmen and refined through decades of production use, this system delivers lubricant only where it’s needed, only when it’s needed, ensuring consistent coverage with minimal waste.

A diaphragm pump pressurizes the lubricant at a 10:1 air‑to‑lube ratio, feeding adjustable distribution pumps that deliver precise, repeatable volumes to each spray point. The result is cleaner operation, improved part quality, and extended die life.

Features & Benefits

System Features

• Airless spray technology for superior adhesion and reduced airborne mist
• Diaphragm pump provides consistent lubricant pressure
• Adjustable distribution pumps (0.0023–0.0210 fl oz per cycle)
• Refill‑while‑running capability — no downtime for tank refills
• No priming issues
• Designed for lubricant recycling
• Customizable configurations for unique die or press requirements
• Supports thin and thick lubricants

Operational Benefits

• Cleaner, safer working environment
• Increased production speeds
• Reduced lubricant consumption
• Improved part quality
• Longer die life

Applications

The PAX Pre‑Pressurized System is ideal for:

• Progressive dies
• Transfer dies
• High‑speed stamping
• Multi‑zone lubrication
• Operations requiring precise, timed lubricant delivery
• Facilities seeking low‑mist, environmentally cleaner lubrication

Models

1. Models with Reservoirs

(2, 5, 15, and 30‑gallon systems)

Description

These are the standard pre‑pressurized units with integrated reservoirs. They are the most common choice for standalone lubrication setups.

Key Features

• Built‑in tank
• Airless spray
• Adjustable distribution pumps
• Refill‑while‑running
• Ideal for general stamping applications

2. Tankless Models

Description

Tankless versions designed for facilities that use:

• Central lubrication supply systems, or
• Direct drum‑feed lubrication

Requirements

• Supply pump + filter assembly or
• Barrel‑mount supply pump assembly

Ideal For

• Plants standardizing on centralized lube delivery
• High‑volume operations using bulk lubricant

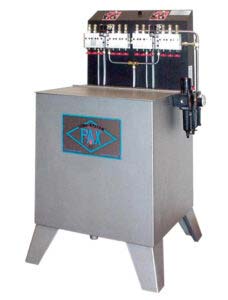

3. Dual Solenoid Systems

Description

Dual‑solenoid systems allow independent cycling of different banks of distribution pumps, enabling precise control over multiple lubrication zones.

Ideal For

• Transfer applications
• Long‑feed progression dies
• Dies requiring different lubrication timing in different stations

Notes

• Offers more control than standard systems
• For even greater control, Pax recommends V‑Series systems

4. Dual Lube Systems

Description

Dual Lube Systems allow operators to switch between two different lubricants, each stored in separate reservoirs.

Compatible Models

• 6T tankless
• 10T tankless
• 14T tankless
• 6‑6T dual‑solenoid tankless

Selection Options

• Manual valve
• Electronic valve

Ideal For

• Dies requiring different lubricants for different stations
• Operations switching between materials or part types

Options & Accessories

Pre‑Pressurized Spray Nozzles

• Airless design
• Adjustable spray patterns
• Optimized for precise die lubrication

Fittings

• Full range of connectors and adapters
• Supports custom line routing and multi‑zone lubrication

Optional Add‑On: Pax Coil Stock Lubrication Spray Cabinets

Although not part of the pre‑pressurized system itself, these cabinets are compatible with all Pax lubrication systems.

Features

• Lubricates top and bottom of coil stock entering the die
• Adjustable spray nozzles
• Recycles runoff lubricant
• Ideal for coil‑fed stamping lines
