Rapid-Air Stock Coil Feeds

MANUFACTURER: Rapid Air

STOCK STATUS: In-Stock

MORE INFORMATION:

web page icon

Product Gallery & Description

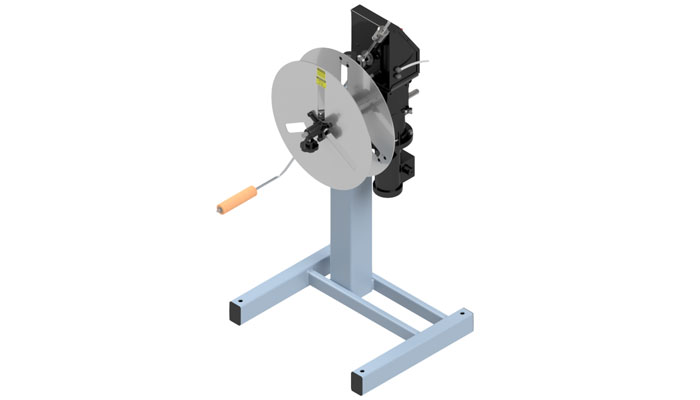

Photo of Rapid-Air Model R23A Stock Reel
Model R23A Stock Coil Reel
Photo of Rapid-Air Model R34A Stock Reel
Model R34A Stock Coil Reel

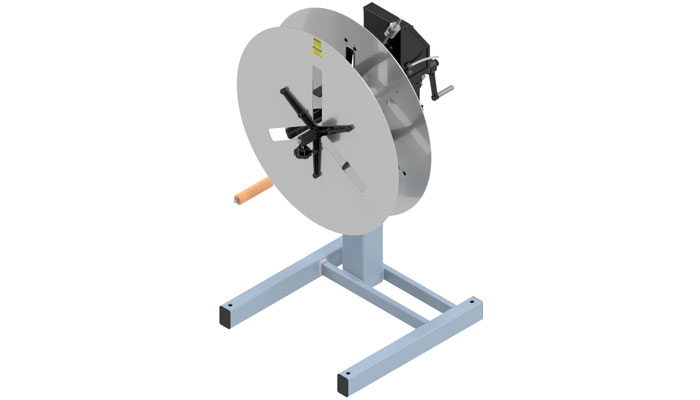

Photo of Rapid-Air Model R45A Stock Reel
Model R45A Stock Coil Reel

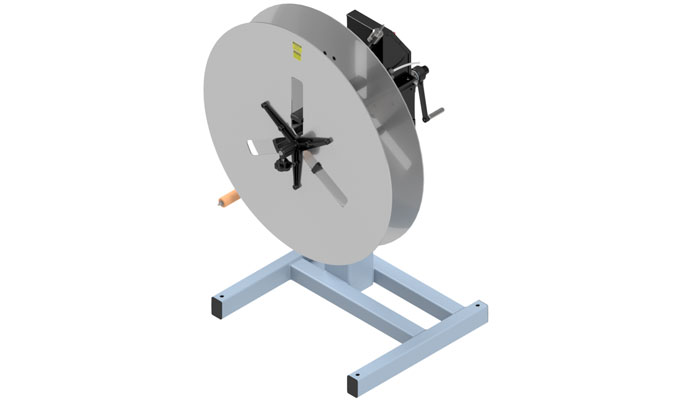

Photo of Rapid-Air Model R56A Stock Reel
Model R56A Stock Coil Reel
image of Rapid-Air Model R23F
Model R23F Stock Coil Reel

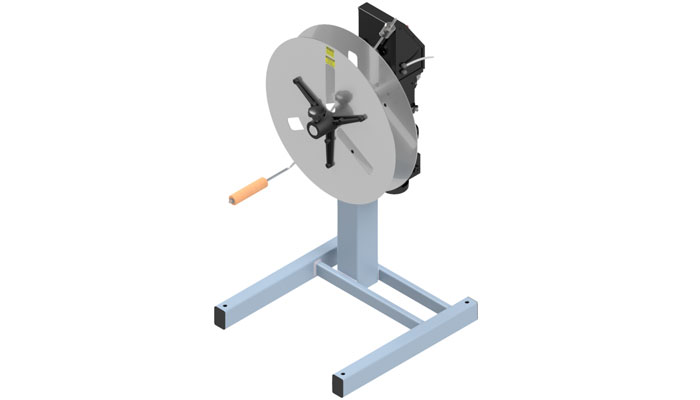

Image of Rapid-Air Model R34F
Model R34F Stock Coil Reel

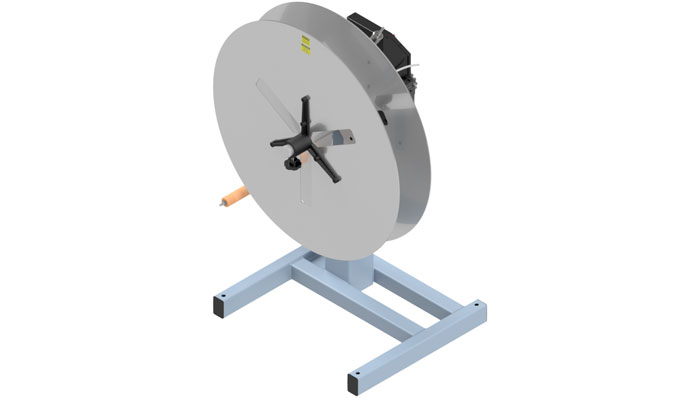

Image of Image of Rapid-Air Model R56F
Model R56F Stock Coil Reel

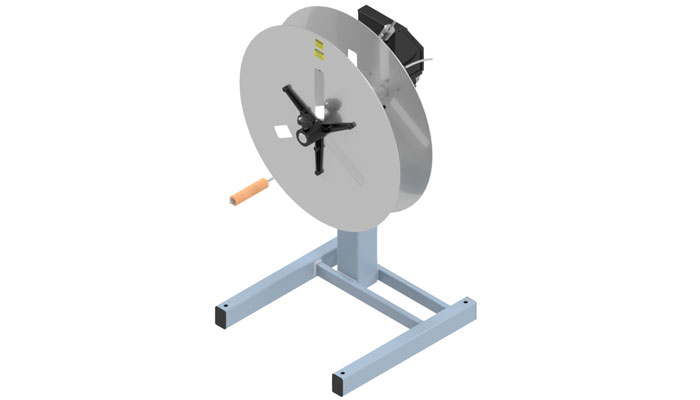

Image of Rapid-Air Model R45F
Model R45F Stock Coil Reel

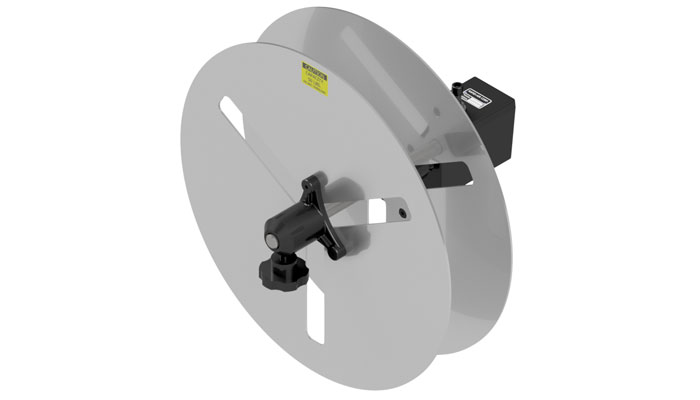

Photo of Rapid-Air Model R13NF
Model R13NF Stock Coil Reel

Rapid-Air Coil Handling Equipment

Rapid-Air offers a comprehensive range of coil handling equipment, with a strong focus on stock reels designed for durability and flexibility. Their lineup includes:

  • Stock Reels: Available in powered and non-powered versions, with adjustable or fixed centers. Built with heavy-duty shafts, full bearing support, rugged centering arms, and steel cabinets for reliable coil payoff.
  • Pallet Reels: Allow coils to remain on shipping pallets, minimizing material handling.
  • Specialty Reels:
    • Reel/Straightener Combo: Saves floor space and boosts productivity.
    • Dual Swivel Reels: Speeds up handling of heavy coils.
    • Rim Drive Reels: Enables payout from the press or reel’s backside.
    • Multi-head Reels: Supports payout, rewind, and interleaf protection.

Each model is highly configurable with accessories to suit specific production needs.

100 Series Stock Reel Models

Rapid-Air’s 100 Series Stock Reels offer one of the most complete selections of coil reels in the industry, designed for durability, flexibility, and performance. These reels are available in:

Powered Reels

  • Feature electric drive with a proportional control system for variable speed, loop height adjustment, and loop sensing.
  • Models range from 75 lbs to 500 lbs capacity, with coil diameters from 18" to 48" and adjustable centers.
  • Ideal for automated coil payoff with precision control.

Non-Powered Reels

  • Available in all sizes, from 50 lbs to 500 lbs capacity.
  • Equipped with mechanical drag brakes for tension control.
  • Designated as NF (non-powered fixed center) or NA (non-powered adjustable center).

Fixed Center Reels

  • Built for simplicity and reliability, with capacities and dimensions similar to powered models.
  • Often used for specific applications like paper interleaf.

Construction Highlights

  • Heavy-duty shafts with full bearing support
  • Rugged coil centering arms
  • Steel cabinets and support bases for long-term durability

Rapid-Air also offers hydraulic models and a full selection guide to help users choose the right reel for their application.

Powered Model
Max Coil Weight
Max Coil OD
Max Material Width
Center Diameter
Powered Max Speed
Adjustable Center
R23A
75 lbs
18”
4”
3” – 10”
80rpm
(34kg)
(457mm)
(102mm)
(76-254mm)
R24A
75 lbs
24”
4”
3” – 12”
80rpm
(34kg)
(610mm)
(102mm)
(76-305mm)
R25A
75 lbs
30”
4”
3” – 12”
80rpm
(34kg)
(762mm)
(102mm)
(76-305mm)
R34A
150 lbs
24”
4”
5” – 16”
50rpm
(68kg)
(610mm)
(102mm)
(127-406mm)
R35A
150 lbs
30”
4”
5” – 16”
50rpm
(68kg)
(762mm)
(102mm)
(127-406mm)
R36A
150 lbs
36”
4”
5” – 16”
50rpm
(68kg)
(915mm)
(102mm)
(127-406mm)
R45A
250 lbs
30”
6”
9” – 20”
50rpm
(114kg)
(762mm)
(152mm)
(229-508mm)
R46A
250 lbs
36”
6”
9” – 20”
50rpm
(114kg)
(915mm)
(152mm)
(229-508mm)
R56A
500 lbs
36”
6”
9” – 20”
33rpm
(227kg)
(915mm)
(152mm)
(229-508mm)
R58A
500 lbs
48” (1220mm)
6”
9” – 20”
33rpm
(227kg)
(152mm)
(229-508mm)
Fixed Center
*R13NF
50 lbs
18”
4”
3/4”
—-
(22kg)
(457mm)
(102mm)
(19mm)
R23F
75 lbs
18”
4”
3/4”
80rpm
(34kg)
(457mm)
(102mm)
(19mm)
R24F
75 lbs
24”
4”
3/4”
80rpm
(34kg)
(610mm)
(102mm)
(19mm)
R25F
75 lbs
30”
4”
3/4”
80rpm
(34kg)
(762mm)
(102mm)
(19mm)
R34F
150 lbs
24”
4”
1-1/2”
50rpm
(68kg)
(610mm)
(102mm)
(38mm)
R35F
150 lbs
30”
4”
1-1/2”
50rpm
(68kg)
(762mm)
(102mm)
(38mm)
R36F
150 lbs
36”
4”
1-1/2”
50rpm
(68kg)
(915mm)
(102mm)
(38mm)
R45F
250 lbs
30”
6”
1-1/2”
50rpm
(114kg)
(762mm)
(152mm)
(38mm)
R46F
250 lbs
36”
6”
1-1/2”
50rpm
(114kg)
(915mm)
(152mm)
(38mm)
R56F
500 lbs
36”
6”
1-3/4”
33rpm
(227kg)
(915mm)
(152mm)
(44.5mm)
R58F
500 lbs
48”
6”
1-3/4”
33rpm
(227kg)
(1220mm)
(152mm)
(44.5mm)
