Overview

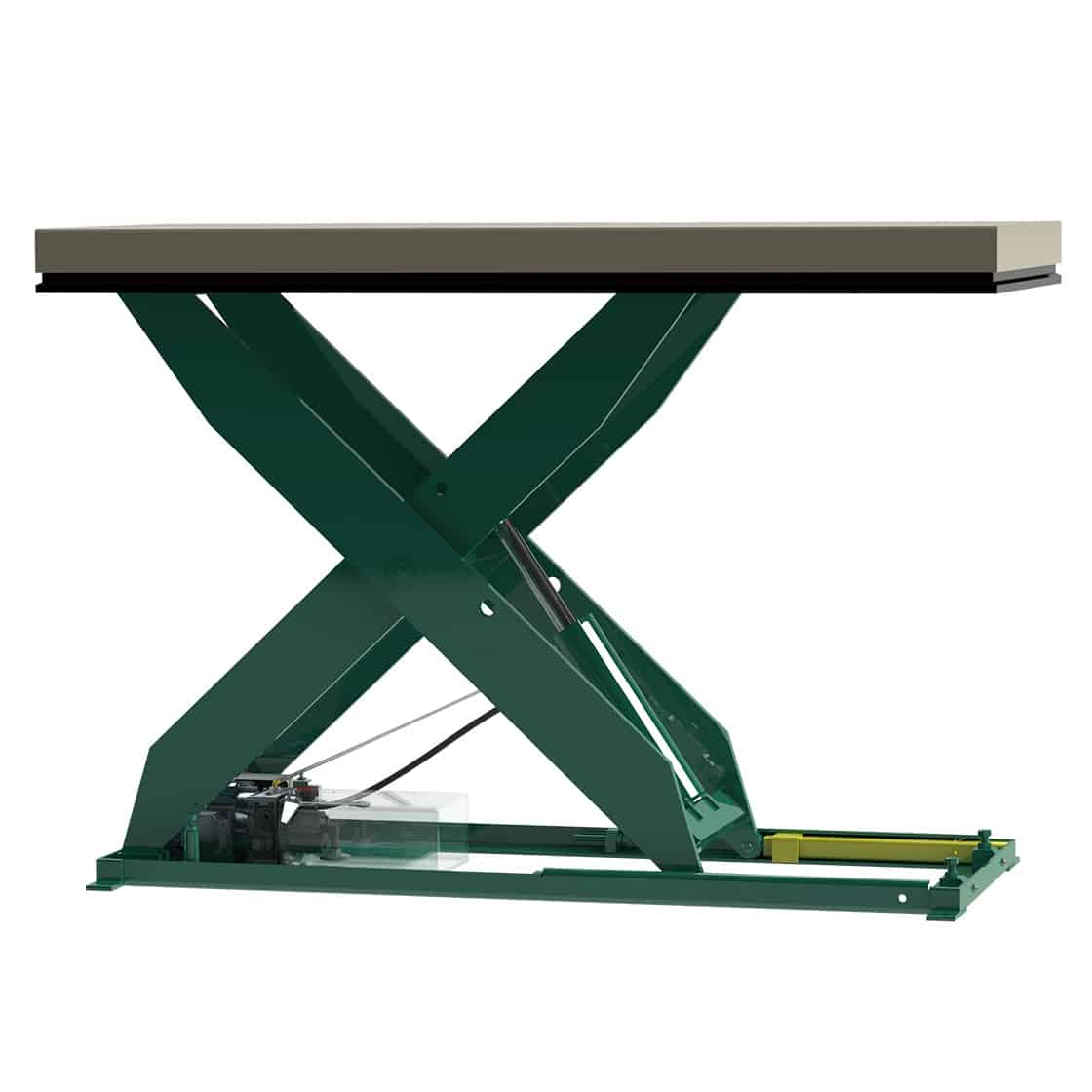

Southworth Backsaver Hydraulic Lift Tables are LS Series scissor lifts for machine feeding, work positioning, assembly, order picking and pallet loading. Stock models carry 2,000 to 6,000 lb and raise to 31¼", 43¼" or 55¼" from a 7¼" lowered height, with platforms up to 72" x 96". PRI supplies Backsaver lifts with the power unit, controls, top and base configuration the job calls for.
Key Features
- 2,000 to 6,000 lb capacity
- Each size is offered in 2,000, 3,000, 4,000 and 6,000 lb capacities.
- Three lift heights

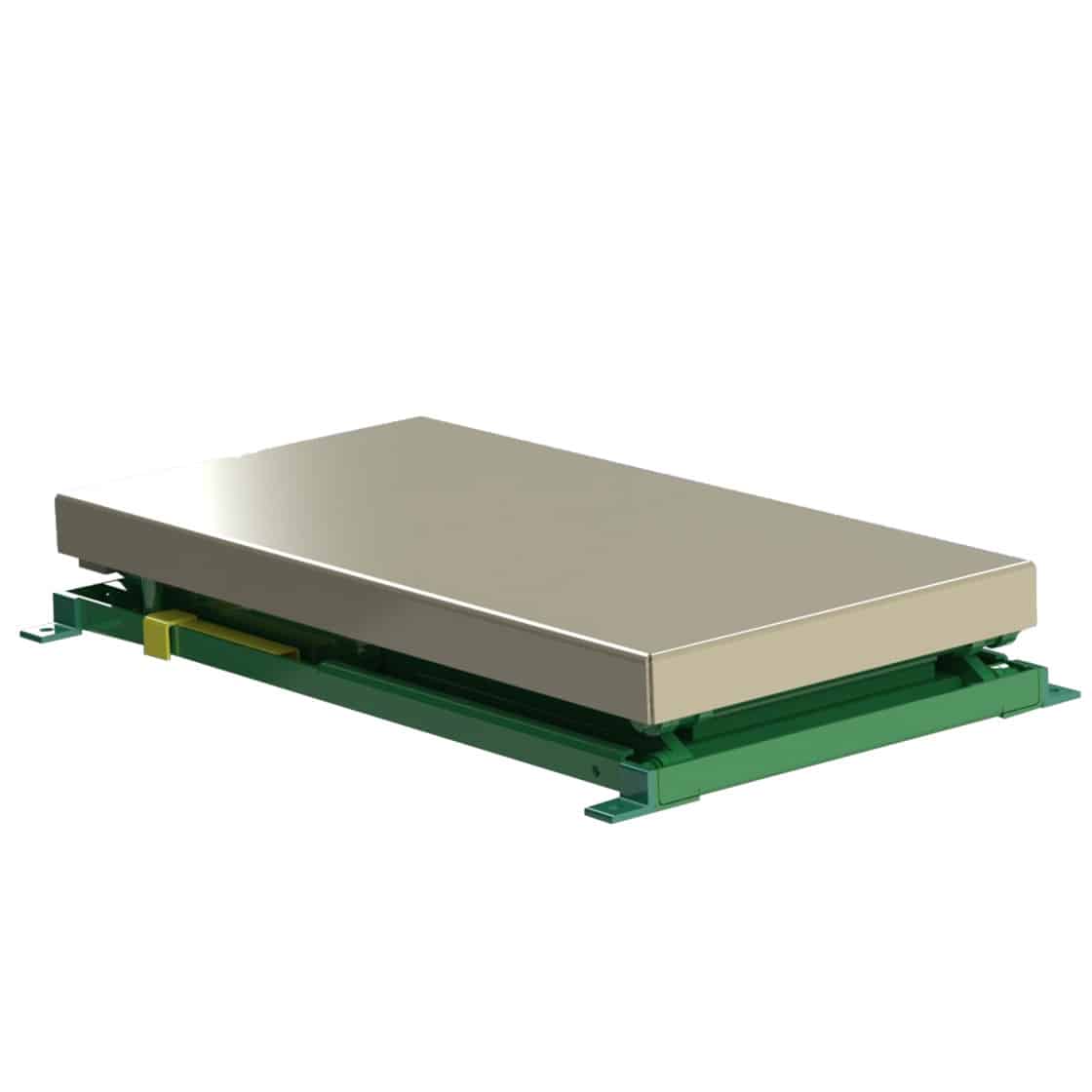

- 7¼" lowered height, with 24", 36" or 48" of vertical travel for raised heights of 31¼", 43¼" or 55¼".
- Platforms up to 72" x 96"
- Standard and W (wide) models, with standard platforms from 24" x 36" and maximum platforms up to 72" x 96".
- Low-pressure hydraulics
- Oversize, low-pressure cylinders give fast raising and lowering, with fully adjustable down speed for precise control.
- Heavy-duty construction
- Heavy-duty torque tubes, full-width straight-through axles and wire-braided hoses with burst strength 600% greater than operating pressure.
- Built-in safety, low maintenance
- Safety maintenance props and pressure relief valves are included. Pins, rollers and bushings are lubricated for life.
Product Line / Models
Backsaver LS Series stock models (all have a 7¼" lowered height):
- LS2-24, LS3-24, LS4-24, LS6-24 – 2,000 to 6,000 lb, 31¼" raised height, 24" x 36" standard platform (up to 48" x 60"), 1 HP, 115/1/60.
- LS2-36, LS3-36, LS4-36, LS6-36 – 2,000 to 6,000 lb, 43¼" raised height, 24" x 48" standard platform (up to 48" x 72"). 1 HP, 115/1/60; LS6-36 is 3 HP, 460/3/60.
- LS2-48, LS3-48, LS4-48, LS6-48 – 2,000 to 6,000 lb, 55¼" raised height, 24" x 64" standard platform (up to 48" x 96"), 3 HP, 460/3/60.
- LS2-24W, LS3-24W, LS4-24W, LS6-24W – wide models, 2,000 to 6,000 lb, 31¼" raised height, 36" x 36" standard platform (up to 60" x 60"), 1 HP, 115/1/60.
- LS2-36W, LS3-36W, LS4-36W, LS6-36W – wide models, 2,000 to 6,000 lb, 43¼" raised height, 36" x 48" standard platform (up to 60" x 72"). 1 HP, 115/1/60; LS6-36W is 3 HP, 460/3/60.
- LS2-48W, LS3-48W, LS4-48W, LS6-48W – wide models, 2,000 to 6,000 lb, 55¼" raised height, 48" x 64" standard platform (up to 72" x 96"), 3 HP, 460/3/60. Models with 3 HP three-phase power units are also available with 1 HP single-phase units (rise time increases by a factor of 3.3).
Applications & Benefits
- Machine feeding: Raise blanks, parts and stock to the feed height of a press or machine so operators don't bend or reach.
- Work positioning: Hold parts and work in process at a comfortable working height in fabrication and press room cells.
- Assembly: Set the load at the right height for each step, with ball transfer tops for access to all sides.
- Pallet loading and order picking: Keep the top of the load at a steady working height as pallets are built or picked.
- Conveyor transfer: Gravity conveyor tops move items on or off the lift within a conveyor line.
How to Choose the Right Backsaver Lift Table
- Start with the load weight: 2,000, 3,000, 4,000 or 6,000 lb.
- Set the working height. Raised heights are 31¼", 43¼" or 55¼" from a 7¼" lowered height.
- Size the platform. Choose a standard or W (wide) base, and a platform up to the model's maximum size.
- Match the power unit to your plant: 1 HP 115/1/60 or 3 HP 460/3/60 electric, or an air power unit.
- Pick the top: plain platform, ball transfer top, gravity conveyor top, and bellows skirting if needed.
- Decide on mounting: floor, pit-mounted for a flush platform, or portable on casters, semi-live skids or with fork pockets.
Why Southworth Backsaver Lift Tables Are Trusted
- Built to the standard: Southworth scissor lifts are designed and manufactured to meet or exceed ANSI MH29.1 safety requirements for industrial scissors lifts.
- Less strain on operators: Backsaver lifts put the work at the right height, reducing operator strain and fatigue.
- Low maintenance: Hardened pins run in lubricated-for-life bushings, and low-pressure hydraulics extend component life.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Load weight and footprint
- Lowered and raised working heights needed
- Platform size required
- Available power (voltage and phase) or shop air
- Top options: ball transfer, gravity conveyor, skirting
- Mounting: floor, pit, or portable (casters, skids, fork pockets)
- Contact PRI to discuss specs, lead times, and installation support.
