Stamtec’s 1‑Point Straight Side Presses are engineered for applications that demand exceptional rigidity, precise slide guidance, and consistent accuracy under full‑tonnage loads. Built on heavy, stress‑relieved steel frames with long, precision‑guided slides, these presses maintain alignment and minimize deflection even during demanding high‑speed or high‑energy production.
To support a wide range of part sizes, forming requirements, and production environments, Stamtec offers three distinct straight‑side series, each optimized for different performance needs:
A robust, heavy‑duty platform designed for small to medium parts that require high tonnage, high flywheel energy, and maximum frame rigidity. The S1 Series uses eight full‑length, 90‑degree gibs for exceptional slide control and accuracy, making it ideal for challenging forming applications.
A space‑efficient straight‑side design that delivers reduced noise, reduced vibration, and minimal angular deflection. The SC1 Series provides precision slide guidance, excellent off‑center load resistance, and a rigid frame structure—ideal for manufacturers who need straight‑side accuracy in a smaller footprint.
A high‑precision platform engineered for demanding applications requiring minimal frame deflection, superior slide alignment, and reduced vibration. The ST1 Series combines a rigid steel frame, high‑torque wet clutch and brake, and box‑type six‑point gibs to deliver consistent accuracy and long die life.
Together, these three series give manufacturers the flexibility to choose the straight‑side configuration that best matches their part complexity, production volume, and performance requirements—while benefiting from Stamtec’s proven engineering, reliability, and long‑term durability.

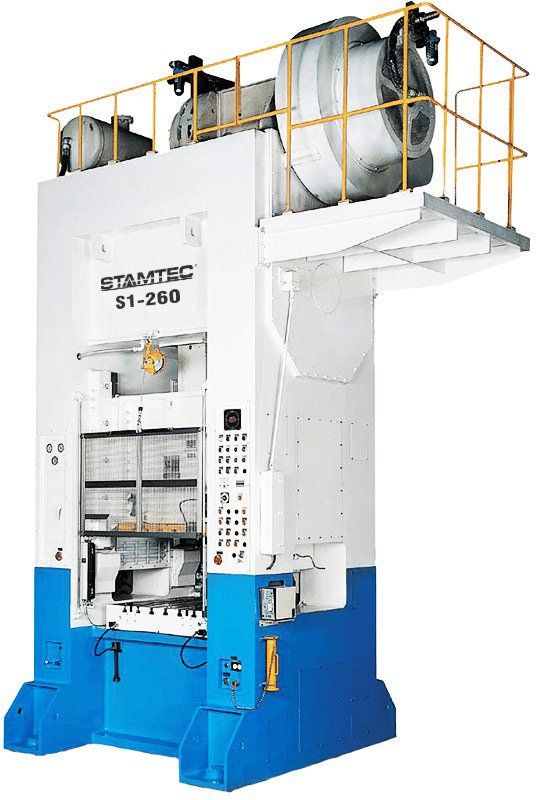

The Stamtec S1 Series is a heavy‑duty family of single‑crank straight side presses engineered for applications that require high tonnage, high flywheel energy, and maximum frame rigidity. Designed for small to medium‑sized parts that demand exceptional accuracy and forming stability, the S1 Series delivers the strength and precision needed for challenging production environments.
A fully stress‑relieved, one‑piece welded steel frame minimizes deflection under load, while eight full‑length, 90‑degree gibs with nickel‑bronze wear plates provide superior slide guidance and alignment. The result is consistent part quality, long die life, and reliable performance across a wide range of stamping operations.
Tonnage Range: 165–2,650 tons Typical Delivery: 24–28 weeks
The heavy, stress‑relieved steel frame is engineered to resist deflection at full tonnage, improving part accuracy and extending die life.
The S1 Series uses eight long, precision‑machined gibs with nickel‑bronze wear plates to maintain slide alignment and minimize lateral thrust, even under off‑center loading.
The overload system relieves excess tonnage in milliseconds, stopping the press immediately to protect both tooling and press components.
Designed for applications requiring high flywheel energy, the S1 Series delivers strong forming capability for thicker materials, higher draw depths, and demanding tooling.
A modern press control system provides programmable limit switches, die protection inputs, counters, and clear status/fault messaging.
Download the Stamtec 1-Point Straight Press S1 Information PDF

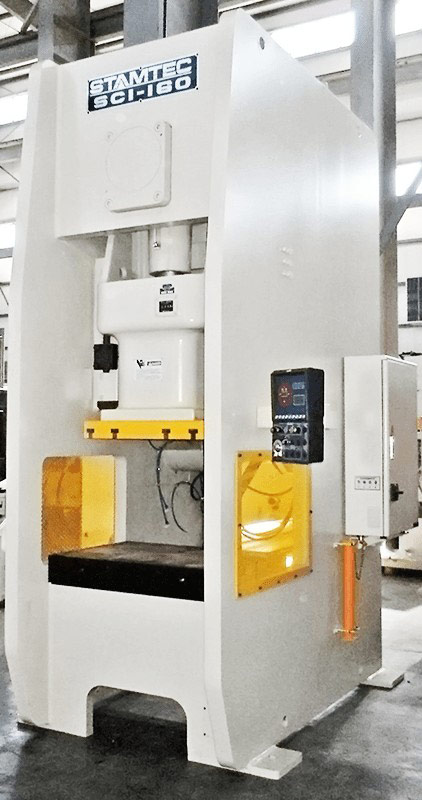

The Stamtec SC1 Series is a family of single‑crank straight side precision presses designed for manufacturers who need the rigidity and accuracy of a straight‑side press in a more compact footprint. Engineered with a heavy fabricated steel frame, cast slide, and long box‑type gibs, the SC1 Series delivers exceptional slide alignment, reduced angular deflection, and stable performance under off‑center loading.
With tonnages from 80 to 300 tons, the SC1 Series is ideal for precision stamping, progressive die work, and applications requiring consistent accuracy, low vibration, and minimal frame deflection. Its quiet, smooth operation and user‑friendly controls make it a strong fit for high‑volume production environments.
The SC1 frame is fully stress‑relieved and engineered to minimize deflection, ensuring accurate stampings and long die life even at full tonnage.
Full‑length, centered gibs maintain precise slide alignment, reduce lateral thrust, and improve performance under off‑center loads.
A wet clutch/brake system provides high torque at low air pressure, reduced lining wear, low vibration, and excellent heat dissipation.
The cast slide and precision‑machined components deliver stable, repeatable motion for demanding forming applications.
Standard controls include crank angle and SPM displays, programmable limit switches, die protection inputs, counters, and a clear operator interface.
Note: The SC1 catalog uses metric units. Our table has been converted all metric units to imperial‑unit equivalents.
Model | Type | Capacity (tons) | Stroke (in.) | SPM | Die Height (in.) | Slide Adj. (in.) | Max Upper Die Wt. (lbs.) |
SC1‑80 | S / H / L | 80 | 3.94 / 2.36 / 6.30 | 55–110 / 75–150 / 40–75 | 11.81 / 12.99 / 12.99 | 3.15 | 1,212 |
SC1‑110 | S / H / L | 110 | 4.33 / 2.76 / 7.09 | 50–100 / 65–135 / 30–65 | 12.60 / 13.78 / 13.78 | 3.54 | 1,367 |
SC1‑160 | S / H / L / XL | 160 | 5.12 / 3.15 / 7.87 / 9.84 | 40–85 / 55–115 / 25–50 / 20–45 | 13.78 / 15.75 / 17.72 / 17.72 | 3.94 | 1,543 |
SC1‑200 | S / H / L / XL | 200 | 5.91 / 3.74 / 7.87 / 9.84 | 35–70 / 45–95 / 20–45 / 20–40 | 16.14 / 17.72 / 17.72 / 17.72 | 4.33 | 1,764 |
SC1‑260 | S / H / L / XL | 260 | 7.09 / 3.94 / 9.84 / 11.81 | 30–60 / 40–75 / 20–40 / 20–35 | 18.11 / 19.69 / 19.69 / 19.69 | 4.72 | 1,764 |
SC1‑300 | XL | 300 | 11.81 | 20–35 | 21.65 | 4.72 | 1,984 |
Model | Bolster Area (in.) | Slide Area (in.) |
SC1‑80 | 29.53×18.11 / 29.53×23.62 | 22.05×18.11 |
SC1‑110 | 35.43×20.47 / 35.43×26.77 | 25.59×20.47 |
SC1‑160 | 39.37×22.83 / 39.37×29.53 | 27.56×22.83 |
SC1‑200 | 45.28×25.59 / 45.28×33.07 | 33.47×25.59 |
SC1‑260 | 51.18×27.56 / 51.18×35.43 | 36.22×27.56 |
SC1‑300 | 62.99×39.37 | 55.12×35.43 |
Model | Main Motor (HP) | Slide Adj. Motor (HP) |
SC1‑80 | 10 | 0.5 |
SC1‑110 | 15 | 0.5 |
SC1‑160 | 20 | 1 |
SC1‑200 | 20 | 1 |
SC1‑260 | 25 | 2 |
SC1‑300 | 30 | 3 |

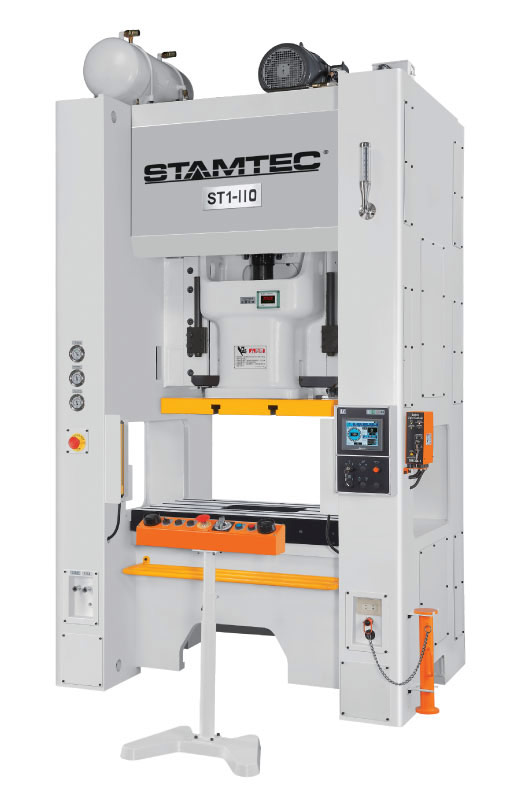

The Stamtec ST1 Series is a premium line of single‑crank straight side precision presses engineered for applications requiring exceptional accuracy, minimal frame deflection, and stable performance under off‑center loads. With a fully stress‑relieved steel frame, box‑type six‑point gibs, and a high‑torque wet clutch and brake, the ST1 Series delivers consistent forming precision across a wide range of materials and tooling.
Available from 80 to 300 tons, the ST1 Series is ideal for precision stamping, progressive dies, and applications where part quality and die life are critical.
The ST1 frame is engineered to resist deflection at full tonnage, ensuring accurate stampings and long die life.
Full‑length gibs maintain slide alignment, reduce lateral thrust, and improve performance under off‑center loads.
Provides strong torque at low air pressure, reduced lining wear, low vibration, and excellent heat dissipation.
The ST1 delivers smooth, stable motion with minimal angular deflection, ideal for high‑precision applications.
Standard controls include a color touchscreen, programmable limit switches, die protection inputs, counters, and diagnostics.
Model | Type | Capacity (tons) | Stroke (in.) | SPM | Die Height (in.) | Slide Adj. (in.) | Max Upper Die Wt. (lbs.) |
ST1‑80 | S / H / L | 88 | 3.94 / 2.36 / 5.91 | 80 / 100 / 60 | 13.98 / 14.76 / 12.99 | 3.15 | 761 |
ST1‑110 | S / H / L | 121 | 4.33 / 2.76 / 7.09 | 70 / 90 / 50 | 15.16 / 15.95 / 13.78 | 3.54 | 992 |
ST1‑160 | S / H / L | 176 | 5.12 / 3.15 / 7.78 | 60 / 80 / 45 | 17.13 / 18.11 / 15.75 | 3.94 | 1,190 |
ST1‑200 | S / H / L | 220 | 5.91 / 3.94 / 7.87 | 50 / 65 / 35 | 18.70 / 19.69 / 17.72 | 4.33 | 1,764 |
ST1‑260 | S / H / L | 287 | 7.09 / 3.94 / 9.84 | 45 / 55 / 30 | 19.10 / 20.67 / 17.72 | 4.72 | 1,764 |
ST1‑300 | S / XL | 331 | 7.09 / 11.81 | 45 / 30 | 24.02 / 21.65 | 4.72 | 1,764 |
Model | Bolster Area (in.) | Slide Area (in.) |
SC1‑80 | 29.53×18.11 / 29.53×23.62 | 22.05×18.11 |
SC1‑110 | 35.43×20.47 / 35.43×26.77 | 25.59×20.47 |
SC1‑160 | 39.37×22.83 / 39.37×29.53 | 27.56×22.83 |
SC1‑200 | 45.28×25.59 / 45.28×33.07 | 33.47×25.59 |
SC1‑260 | 51.18×27.56 / 51.18×35.43 | 36.22×27.56 |
SC1‑300 | 62.99×39.37 | 55.12×35.43 |
Model | Main Motor (HP) | Slide Adj. Motor (HP) |
ST1‑80 | 10 | 0.5 |
ST1‑110 | 15 | 0.5 |
ST1‑160 | 20 | 1 |
ST1‑200 | 20 | 1 |
ST1‑260 | 25 | 1.5 |
ST1‑300 | 30 | 1.5 |
