Stamtec’s 2‑Point Crank Shaft Straight Side Presses represent one of the most comprehensive and versatile lineups in the global metal stamping industry. Built on ultra‑rigid straight‑side frames and engineered for precision, stability, and long‑term durability, these presses deliver exceptional performance across a wide range of applications—from high‑speed lamination stamping to large‑format progressive dies, deep forming, and heavy‑tonnage transfer work.
Across six distinct series, Stamtec offers solutions tailored to every production requirement:
Each series is engineered with Stamtec’s signature focus on rigidity, accuracy, and long die life, supported by advanced controls, robust drivetrain systems, and industry‑leading hydraulic overload protection.

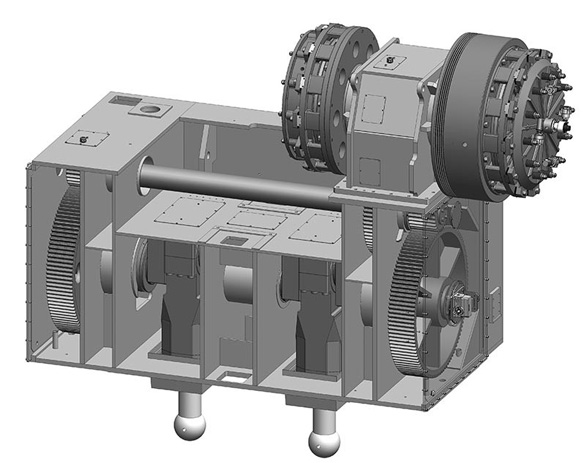

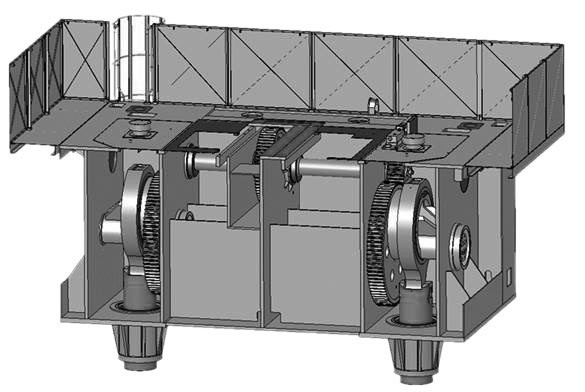

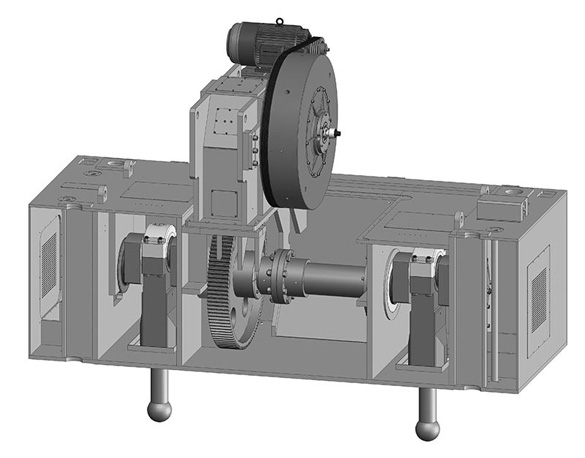

Two crankshafts distribute force evenly across the slide, making these presses ideal for:
Most series feature six‑ or eight‑point gibs, ensuring:
All models use heavy, stress‑relieved steel frames designed to minimize deflection and maintain accuracy at full tonnage.
Every series supports modern automation controls, including:
Fast‑response HOLP protects the press and tooling by relieving overload pressure in milliseconds.
The SC2 Series is designed for stamping long, narrow parts or running progressive dies that require extended bed lengths. It offers a large die area at an economical price and is ideal for applications where a straight‑side press is needed but a heavier‑duty frame is not required.
Note: All specs for the SC2 Series are based on typical ranges for Stamtec’s economical long‑bed 2‑point straight‑side presses. Specs to be confirmed with Stamtec prior to ordering
Category | SC2‑121 | SC2‑165 | SC2‑220 | SC2‑275 |
Capacity (US tons) | 121 | 165 | 220 | 275 |
Capacity (metric tons) | 110 | 150 | 200 | 250 |
Rated tonnage point | 0.24 in | 0.24 in | 0.28 in | 0.28 in |
Stroke length | 5.9–7.0 in | 6.0–7.5 in | 7.0–9.0 in | 8.0–10.0 in |
Speed (SPM) | 35–70 | 30–60 | 25–50 | 20–40 |
Die height (S.D.A.U.) | 15–17 in | 17–19 in | 19–21 in | 21–23 in |
Slide adjustment | 3.9 in | 4.7 in | 4.7 in | 4.7 in |
Slide area (L‑R × F‑B) | 60 × 30 in | 72 × 34 in | 84 × 36 in | 96 × 40 in |
Bolster area (L‑R × F‑B) | 60 × 30 in | 72 × 34 in | 84 × 36 in | 96 × 40 in |
Bolster thickness | 5.9 in | 6.3 in | 6.3 in | 7.1 in |
Side frame opening (F‑B × H) | 24 × 16 in | 30 × 18 in | 36 × 22 in | 40 × 24 in |
Working height | 36–38 in | 38–40 in | 40–42 in | 42–44 in |
Main motor | 15–20 HP | 20–25 HP | 25–30 HP | 30–40 HP |
Slide adjustment motor | 1 HP | 1–2 HP | 2 HP | 2 HP |
Parallelism | 0.001 in/ft | 0.001 in/ft | 0.001 in/ft | 0.001 in/ft |
Deflection | 0.0015 in/ft | 0.0015 in/ft | 0.0015 in/ft | 0.0015 in/ft |
The SLX Series incorporates link‑motion drive technology as standard, slowing the slide up to 40% during the working portion of the stroke. This improves material flow, reduces impact, and increases die life—ideal for deeper or more complex forming.
Specification | SLX‑160 (D/B) | SLX‑200 (D/B) | SLX‑250 (D/B) | SLX‑300 (D/B) | SLX‑400 (D/B) |
Capacity (US tons) | 176 | 220 | 275 | 330 | 440 |
Capacity (metric tons) | 160 | 200 | 250 | 300 | 400 |
Rated tonnage point (in.) | 0.24 / 0.19 | 0.24 / 0.19 | 0.28 / 0.19 | 0.28 / 0.19 | 0.28 / 0.19 |
Rated tonnage point (mm) | 6 / 3 | 6 / 3 | 7 / 3 | 7 / 3 | 7 / 3 |
Speed (SPM) | 30–55 / 40–85 | 20–50 / 35–70 | 20–40 / 30–60 | 20–35 / 30–50 | 20–35 / 30–50 |
Stroke (in.) | 7.09 / 5.19 | 9.84 / 5.91 | 11.02 / 6.69 | 11.81 / 6.69 | 11.81 / 6.69 |
Stroke (mm) | 180 / 130 | 250 / 150 | 280 / 170 | 300 / 170 | 300 / 170 |
Die height (in.) | 17.72 / 15.75 | 19.69 / 15.75 | 21.65 / 15.75 | 21.65 / 15.75 | 21.65 / 15.75 |
Die height (mm) | 450 / 400 | 500 / 450 | 550 / 450 | 550 / 450 | 550 / 450 |
Max upper die weight (lbs) | 2645 | 3306 | 4850 | 5291 | 5291 |
Slide adjustment (in.) | 3.94 | 4.72 | 4.72 | 4.72 | 4.72 |
Bolster area (in.) | 70.87×29.92 | 86.61×37.01 | 98.43×39.37 | 98.43×39.37 | 98.43×39.37 |
Slide area (in.) | 62.99×25.59 | 72.84×29.53 | 82.68×35.43 | 86.61×35.43 | 86.61×35.43 |
Side opening (in.) | 27.56×17.72 | 35.43×23.62 | 35.43×23.62 | 35.43×23.62 |

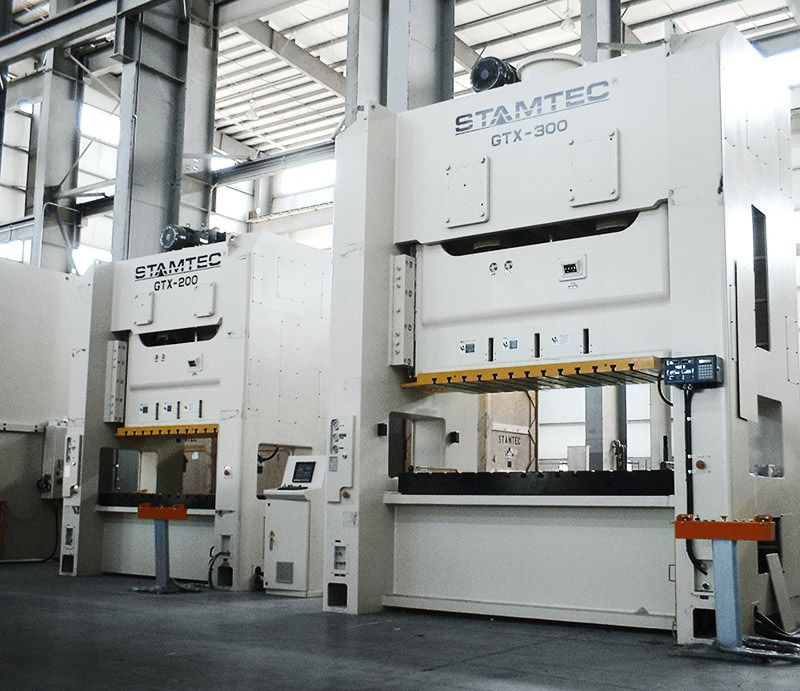

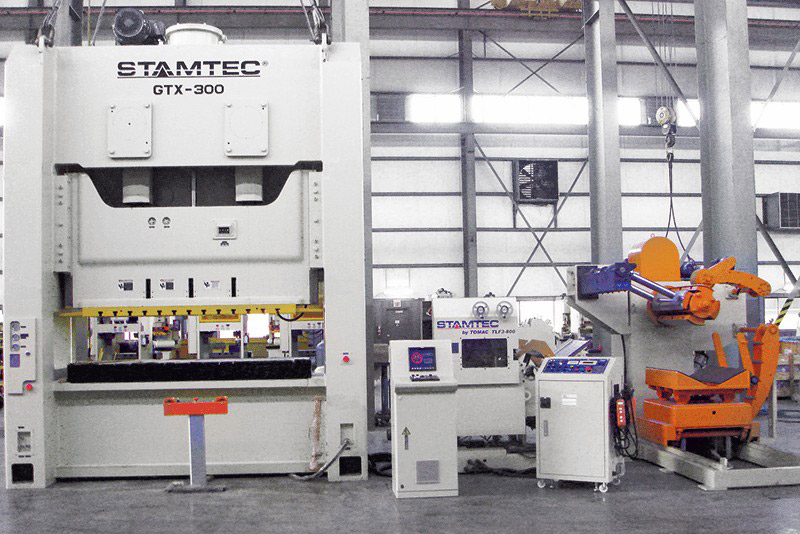

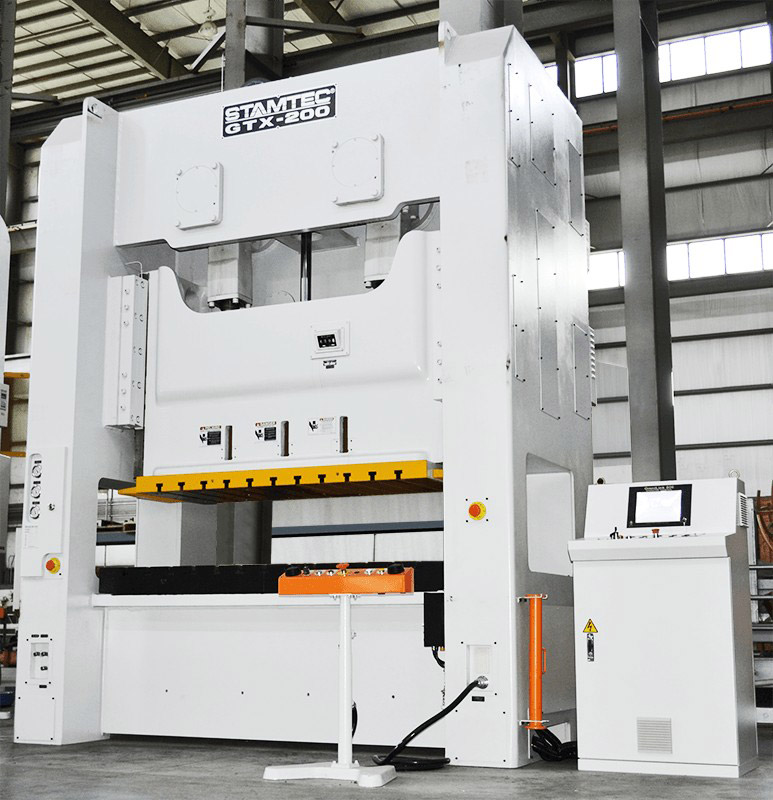

The GTX Series is a versatile, general‑purpose double‑crank press designed for long, narrow parts, progressive dies, and medium‑to‑large tooling. Its rigid frame and centered box‑type gibs ensure accurate slide alignment and stable forming.
Spec | GTX‑250 (S/H) | GTX‑300 (S/H) | GTX‑400 (S/H) | GTX‑500 (S/H) |
Capacity (US tons) | 275 | 330 | 440 | 550 |
Rated tonnage point (in.) | 0.28 | 0.28 | 0.28 | 0.28 |
Rated tonnage point (H‑type) | 0.2 | 0.2 | 0.24 | 0.24 |
Stroke (in.) | 11.02 | 11.81 | 11.81 | 13.78 |
Stroke (H‑type) | 6.69 | 6.69 | 6.69 | 7.87 |
Speed (SPM) | 20–40 | 20–40 | 20–40 | 20–30 |
Speed (H‑type) | 30–60 | 30–50 | 30–50 | 30–50 |
Die height (in.) | 21.65 | 21.65 | 21.65 | 21.65 |
Die height (H‑type) | 17.72 | 17.72 | 17.72 | 19.68 |
Bolster area (in.) | 98.43–133.86 | 98.43–133.86 | 98.43–133.86 | 98.43–133.86 |
Bolster thickness (in.) | 6.3 | 7.48 | 7.48 | 9.84 |
The HSD Series is engineered for demanding high‑speed applications such as motor lamination stamping. With speeds up to 550 SPM, eight‑point roller bearing gibs, and dynamic balancing, it delivers exceptional accuracy at extreme throughput.
Spec | HSD‑60 | HSD‑80 | HSD‑125 | HSD‑200 | HSD‑300 |
Capacity (US tons) | 66 | 88 | 137 | 220 | 330 |
Rated tonnage point (in.) | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 |
Stroke (in.) | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 |
Speed (SPM) | 200–550 | 200–550 | 200–500 | 150–350 | 100–300 |
Die height (in.) | 13.39 | 14.17 | 14.96 | 15.74 | 16.54 |
Slide adjustment (in.) | 1.97 | 1.97 | 1.97 | 2.36 | 2.76 |
Bolster area (in.) | 33.47×23.62 | 43.31×27.56 | 51.18×31.50 | 70.86×35.43 | 78.74×39.36 |

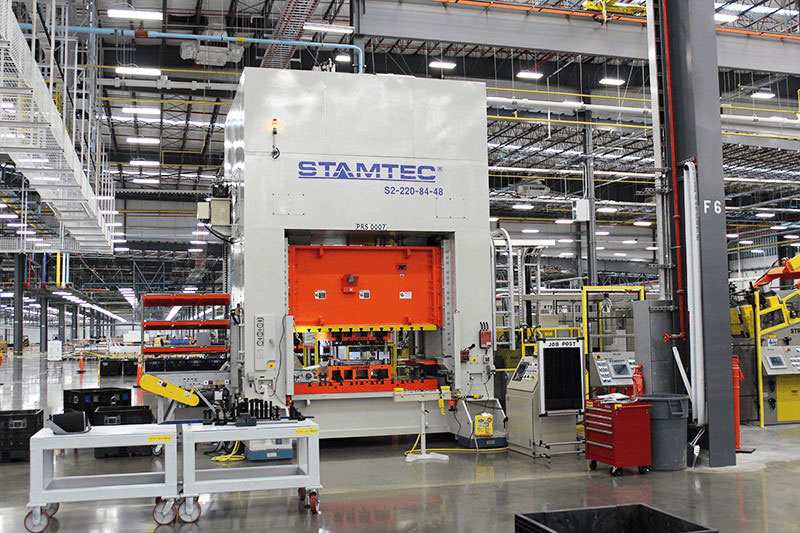

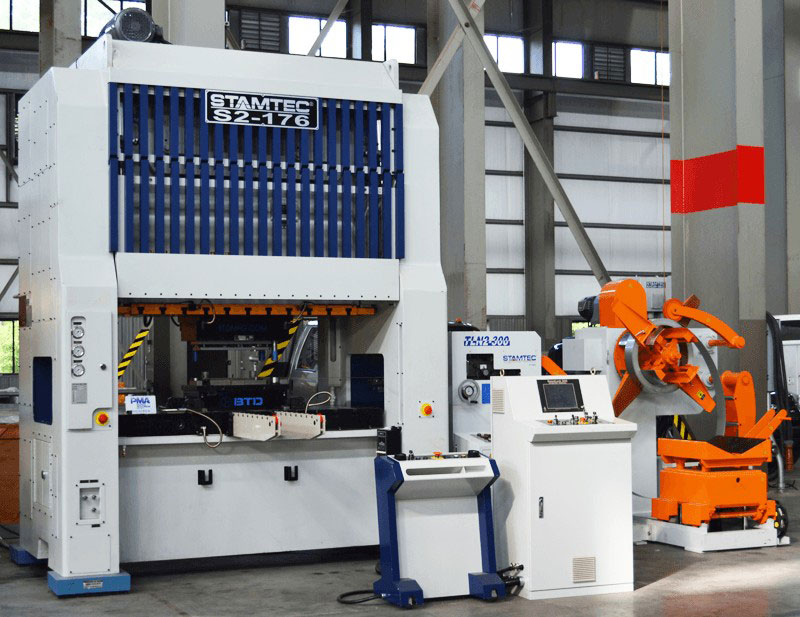

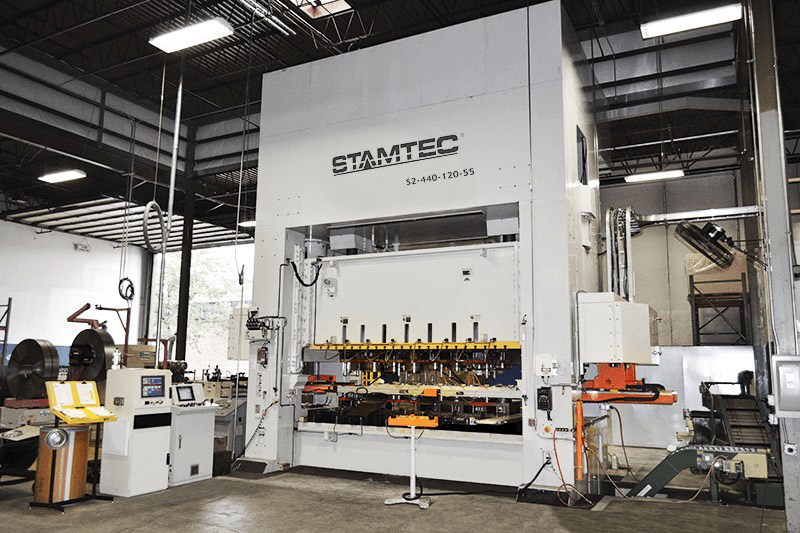

The S2 Series is built for large parts, large dies, and high‑tonnage applications requiring maximum rigidity and flywheel energy. With capacities up to 3300 tons, it is Stamtec’s heavy‑duty flagship for large progressive or transfer dies.
Spec | S2‑110 | S2‑165 | S2‑220 | S2‑330 | S2‑440 | S2‑660 |
Capacity (US tons) | — | 165 | 220 | 330 | 440 | 660 |
Speed (SPM) | 60–120 | 50–120 | 30–60 | 25–50 | 25–45 | — |
Rated tonnage point (in.) | 0.236 | 0.236 | 0.275 | 0.275 | 0.512 | — |
Stroke (in.) | 5.91 | 6.3 | 10.04 | 12.01 | 13.98 | — |
Die height (in.) | 15.75 | 19.7 | 25.98 | 30 | 33.98 | — |
Slide adjustment (in.) | 5.91 | 6.3 | 8.27 | 9.84 | 10 | — |
Bolster area (in.) | 60×42 | 72×48 | 96×50 | 120×55 | 144×60 | — |

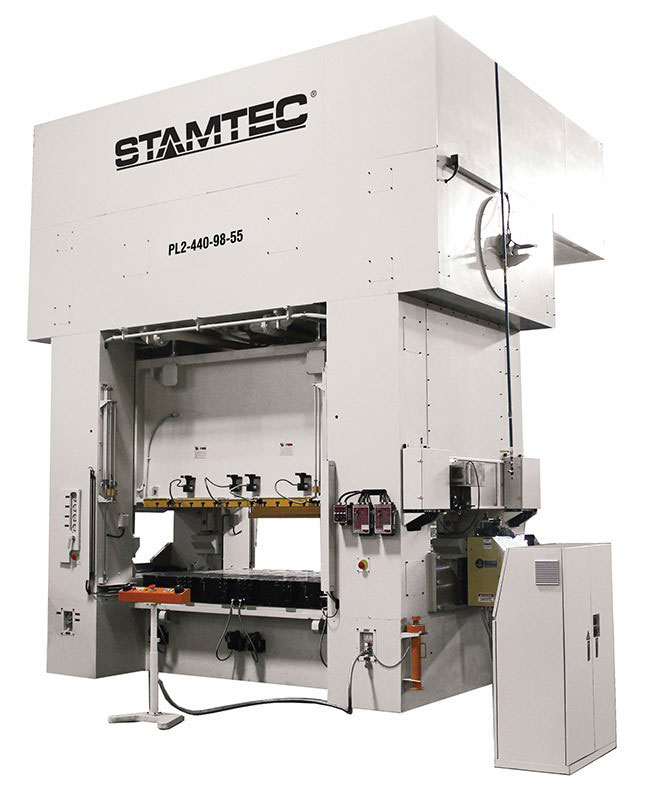

The PL2 Series uses Stamtec’s advanced link‑motion drive, slowing the slide up to 40% during the working stroke for improved material flow, reduced impact, and extended die life. Ideal for complex forming and precision progressive dies.
Category | PL2‑440 | PL2‑550 | PL2‑660 | PL2‑880 |
Capacity (US tons) | 440 | 550 | 660 | 880 |
Capacity (metric tons) | 400 | 500 | 600 | 800 |
Rated tonnage point | 0.51 in (13 mm) | 0.51 in (13 mm) | 0.52 in (13 mm) | 0.52 in (13 mm) |
Stroke length | 6.00 or 12.00 in (152 or 305 mm) | 6.00 or 12.00 in (152 or 305 mm) | 9.84 in (250 mm) | 12.01 in (305 mm) |
Speed (SPM) | 20–40 | 20–40 | 30–70* | 25–40 |
Die height (S.D.A.U.) | 37.79 in (960 mm) | 37.79 in (960 mm) | 29.52 in (750 mm) | 31.50 in (800 mm) |
Slide adjustment | 10 in (254 mm) | 10 in (254 mm) | 3.93 in (100 mm) | 5.91 in (150 mm) |
Slide area – Option 1 | 86.61 × 51.18 in (2200 × 1300 mm) | 86.61 × 51.18 in (2200 × 1300 mm) | 98.43 × 55.12 in (2500 × 1400 mm) | 168 × 63 in (4270 × 1600 mm) |
Slide area – Option 2 | 95.98 × 55.11 in (2438 × 1400 mm) | 95.98 × 55.11 in (2438 × 1400 mm) | — | 144 × 63 in (3660 × 1600 mm) |
Bolster area – Option 1 | 86.61 × 51.18 in (2200 × 1300 mm) | 86.61 × 51.18 in (2200 × 1300 mm) | 98.43 × 55.12 in (2500 × 1400 mm) | 168 × 63 in (4270 × 1600 mm) |
Bolster area – Option 2 | 95.98 × 55.11 in (2438 × 1400 mm) | 95.98 × 55.11 in (2438 × 1400 mm) | — | 144 × 63 in (3660 × 1600 mm) |
Side frame opening (F‑B × H) | 43.30 × 25.59 in (1100 × 650 mm) | 43.30 × 25.59 in (1100 × 650 mm) | 50 × 25.6 in (1270 × 650 mm) | 51.19 × 31.50 in (1300 × 800 mm) |
Bolster thickness | 7.87 in (200 mm) | 7.87 in (200 mm) | 9.85 in (250 mm) | 11.82 in (300 mm) |
Working height | 49.21 in (1250 mm) | 49.21 in (1250 mm) | 35.43 in (900 mm) | 27.96 in (710 mm) |
Overall dimensions (L‑R × F‑B) | 180 × 100 in (4570 × 4580 mm) | 180 × 100 in (4570 × 4580 mm) | 165.74 × 145.66 in (4210 × 3700 mm) | — (varies by configuration) |
Overall height | 247 in (6291 mm) | 247 in (6291 mm) | 240 in (6100 mm) | — |
Counterbalance capacity | 10,008 lbs (4540 kg) | 10,008 lbs (4540 kg) | 11,000 lbs (5000 kg) | 15,400 lbs (6985 kg) |
Approx. weight | TBD | TBD | 291,000 lbs (131,995 kg) | — |
Main motor | 75 HP | 75 HP | 175 HP | 150 HP |
Slide adjustment motor | 4 HP | 4 HP | 10 HP | 15 HP |
Parallelism | 0.001 in/ft or less | 0.001 in/ft or less | 0.001 in/ft or less | 0.001 in/ft or less |
Deflection | 0.0015 in/ft or less | 0.0015 in/ft or less | 0.001 in/ft or less | 0.0015 in/ft or less |
Snap‑through rating | — | — | 0.25 | — |
Series | Best For |
SC2 | Long progressive dies, economical applications |
SLX | Deep forming, link‑motion precision |
GTX | General‑purpose stamping, rigid accuracy |
HSD | High‑speed lamination stamping |
S2 | Large parts, high tonnage, heavy‑duty work |
PL2 | Precision forming, reduced impact, link‑motion |
