Stamtec’s cold forging presses are engineered for applications requiring high forming force, dimensional accuracy, and consistent near‑net‑shape production. Cold forging reshapes metal at room temperature, improving grain structure and mechanical properties while reducing material waste and minimizing secondary machining.
These presses support high‑volume production of components such as fasteners, shafts, small gears, hardware, and precision industrial parts. With six cold‑forging platforms available—LF1, KP, KT, KW1 (cold‑forging models), KW2, and KL2—Stamtec provides solutions for a wide range of part sizes, forming depths, and deformation requirements.

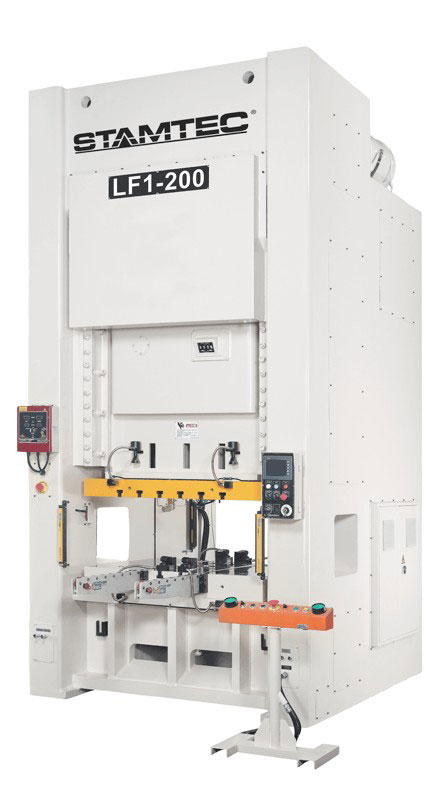

The LF1 Series is designed for cold forging, drawing, fine blanking, near‑net‑shape forming, and press forging of sheet materials. These presses support light compound materials such as magnesium and aluminum, as well as sheet steel and high‑tension steels. The compound‑link mechanism provides controlled slide motion suitable for precision sheet‑metal forming.
Model | LF1‑200 | LF1‑300 | LF1‑400 | LF1‑500 | LF1‑650 |
Capacity (US tons) | 220 | 330 | 440 | 551 | 716 |
Capacity (metric tons) | 200 | 300 | 400 | 500 | 650 |
Rated Tonnage Point (in.) | 0.18 | 0.31 | 0.31 | 0.31 | 0.31 |
Stroke (in.) | 4.72 | 5.9 | 5.9 | 5.9 | 5.9 |
Speed (SPM) | 20–45 | 20–40 | 20–40 | 20–40 | 20–40 |
Die Height (in.) | 17.71 | 17.71 | 17.71 | 17.71 | 17.71 |
Bolster Area (in.) | 51.18×38.19×6.30 | 51.18×38.19×6.30 | 51.18×39.37×7.48 | 51.18×39.37×7.48 | 51.18×39.37×7.48 |
Slide Area (in.) | 51.18×38.18 | 51.18×38.18 | 51.18×39.37 | 51.18×39.37 | 51.18×39.37 |
Slide Adjustment (in.) | 1.96 | 3.14 | 3.14 | 3.14 | 3.14 |
Side Opening (in.) | 16.53×15.74 | 17.71×17.71 | 17.71×17.71 | 18.30×17.71 | 18.30×17.71 |
Working Height (in.) | 35.03 | 35.43 | 37.4 | 39.36 | 39.36 |
Max Upper Die Weight (lbs) | 2204 | 3306 | 3306 | 3306 | 3306 |
Main Motor (HP×P) | 15×6 | 25×6 | 30×6 | 40×6 | 50×6 |
Download the Stamtec LF1 Series Cold Forging Presses Catalog

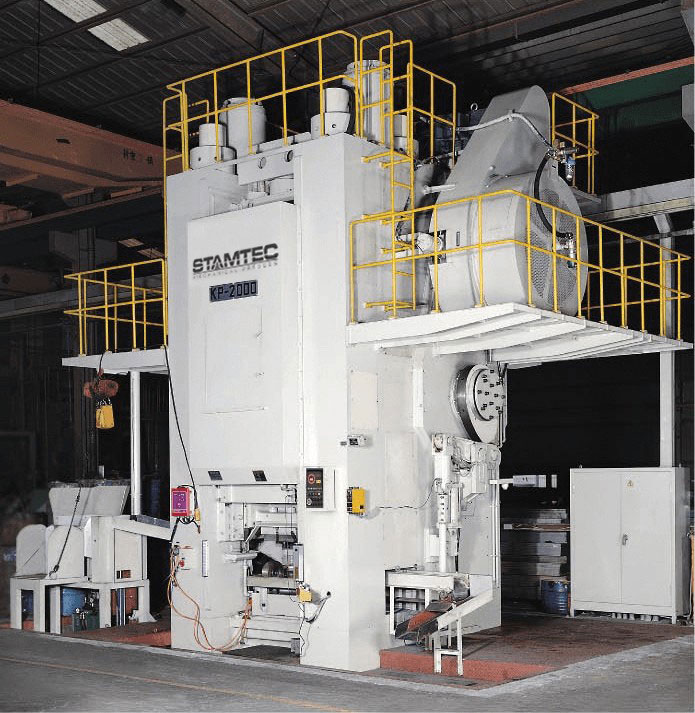

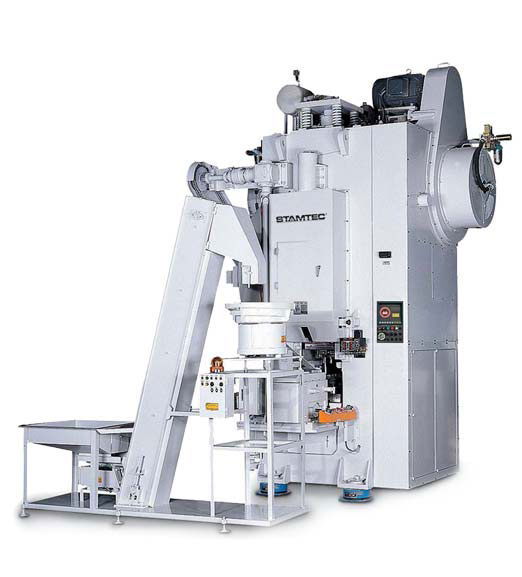

The KP Series uses a single‑point knuckle‑joint mechanism that slows slide velocity by up to 40% near bottom dead center, improving material flow and reducing snap‑through forces. The extended dwell at BDC supports precision forming, coining, and applications requiring controlled penetration.
Model | KP‑250 | KP‑400 | KP‑650 | KP‑850 | KP‑1000 | KP‑1200 | KP‑2000 |
Capacity (US tons) | 275.58 | 440.93 | 716.5 | 936.97 | 1102.31 | 1327.77 | 2204.62 |
Rated Tonnage Point (in.) | 0.16 | 0.24 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
Stroke (in.) | 4.72 | 6.30/7.09 | 6.30/7.09 | 7.09 | 6.3 | 9.84 | 7.09 |
Speed (SPM) | 40 | 30–50 | 25–40 | 25–35 | 25–35 | 25–30 | 22–32 |
Die Height (in.) | 14.57 | 15.75 | 15.75 | 15.75 | 19.69 | 23.62 | 21.65 |
Max Upper Die Weight (lbs) | 1102 | 1764 | 2205 | 2205 | 2646 | 2646 | 4409 |
Bolster Area (in.) | 19.69×23.62 | 21.65×25.98 | 23.62×27.56 | 23.62×27.56 | 27.56×31.50 | 31.50×39.37 | 39.37×31.50 |
Slide Area (in.) | 15.75×16.54 | 15.75×19.69 | 17.72×21.65 | 17.72×21.65 | 18.90×25.59 | 31.50×31.50 | 31.50×27.56 |
Download the Stamtec KP Series Cold Forging Presses Catalog

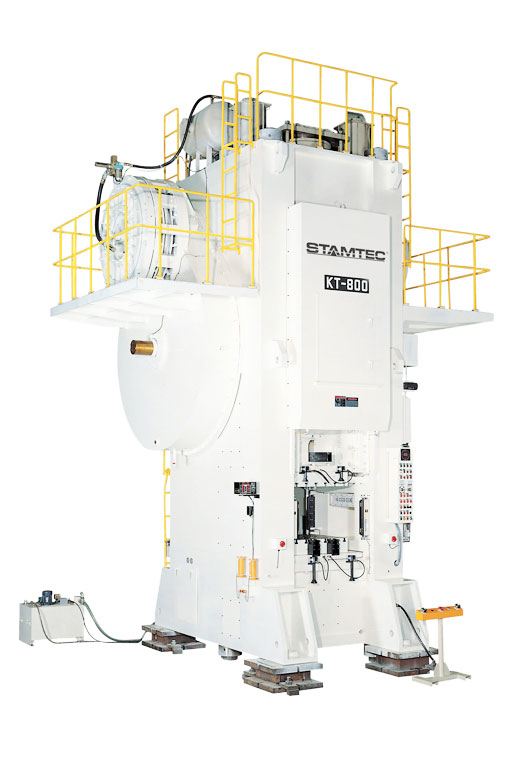

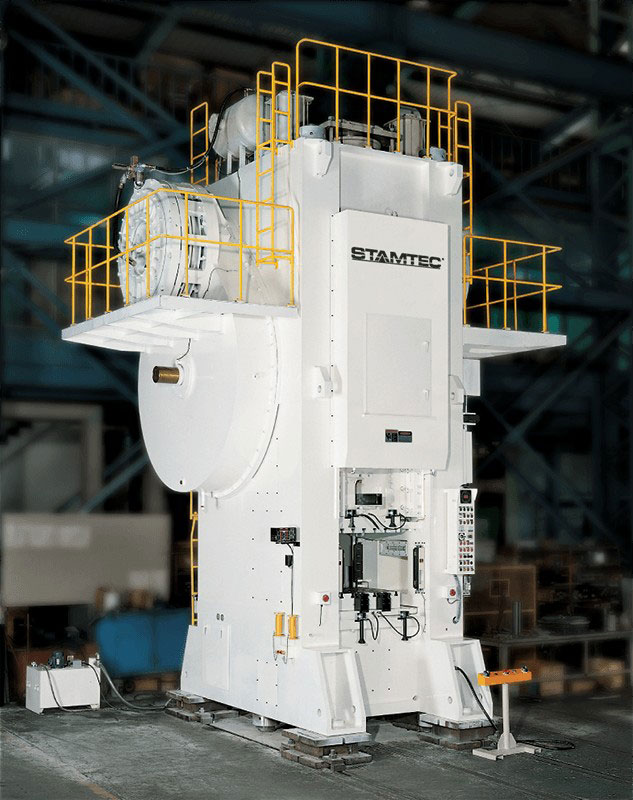

The KT Series uses a single‑point knuckle‑joint drive with reduced slide velocity near BDC and extended dwell for precision forming. These presses support deeper deformation and high‑strength materials.
Model | KT‑400 | KT‑650 | KT‑800 | KT‑1000 |
Capacity (US tons) | 440.93 | 716.5 | 881.85 | 1102.31 |
Rated Tonnage Point (in.) | 0.32 | 0.32 | 0.32 | 0.32 |
Stroke (in.) | 7.09 | 7.87 | 9.84 | 9.84 |
Speed (SPM) | 25–40 | 25–35 | 25–35 | 25–35 |
Die Height (in.) | 21.65 | 21.65 | 25.59 | 26.38 |
Bolster Area (in.) | 27.56×27.56×4.72 | 31.50×31.50×5.91 | 43.31×31.50×6.69 | 43.31×31.50×7.09 |
Slide Area (in.) | 26.77×27.56 | 30.71×31.50 | 42.52×31.50 | 42.52×31.50 |
Download the Stamtec KT Series Cold Forging Presses Catalog

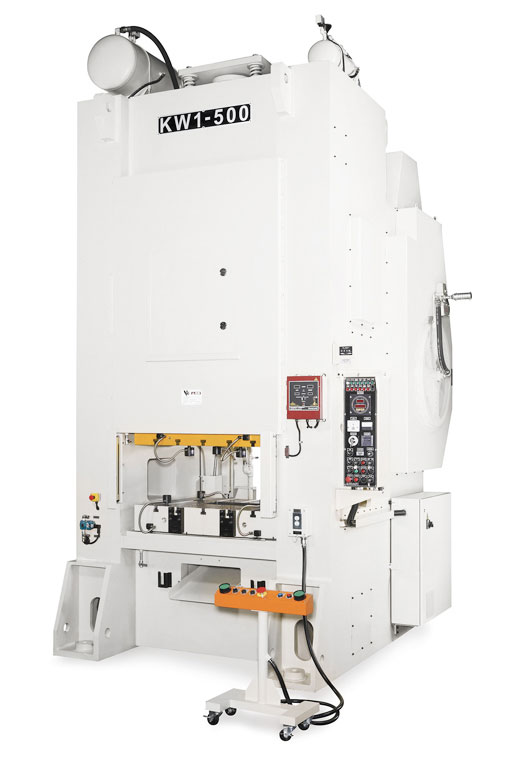

The KW1 Series uses a knuckle‑joint mechanism with long dwell at BDC, reduced snap‑through, and stable vertical force for precision cold forging and coining.
Model | KW1‑300 | KW1‑400 | KW1‑500 | KW1‑650 | KW1‑800 | KW1‑1000 |
Capacity (US tons) | 330.69 | 440.93 | 551.16 | 716.5 | 881.85 | 1102.31 |
Stroke (in.) | 4.72 | 4.72 | 5.91 | 5.91 | 9.84 | 7.87 (9.84) |
Speed (SPM) | 20–40 | 20–40 | 20–40 | 20–40 | 20–35 | 20–40 |
Download the Stamtec KW1 Series Cold Forging Presses Catalog

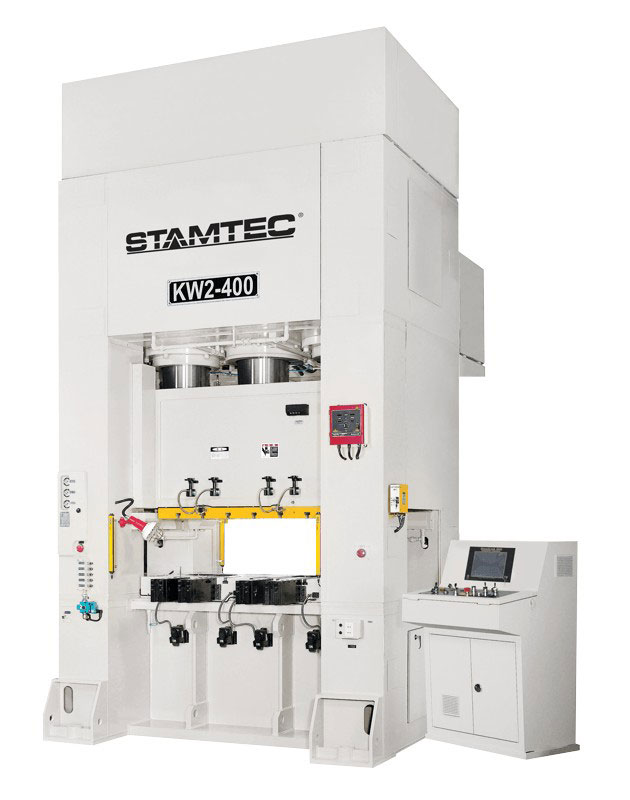

The KW2 Series is designed for net‑shape blanking and coining of thicker materials. The knuckle‑joint mechanism provides long dwell, high precision, and reduced vibration.
Model | KW2-260 | KW2-400 | KW2-600 | KW2-800 | KW2-1000 | KW2-1200 |
Capacity (US tons) | 286.6 | 440.93 | 661.39 | 881.85 | 1102.31 | 1322.77 |
Stroke (in.) | 4.72 | 6.3 | 7.87 | 7.87 | 9.84 | 9.84 |
Speed (SPM) | 35 / 35–50 | 35 / 35–50 | 35 / 25–45 | 30 / 25–40 | 30 / 20–35 | 30 / 20–35 |
Download the Stamtec KW2 Series Cold Forging Presses Catalog

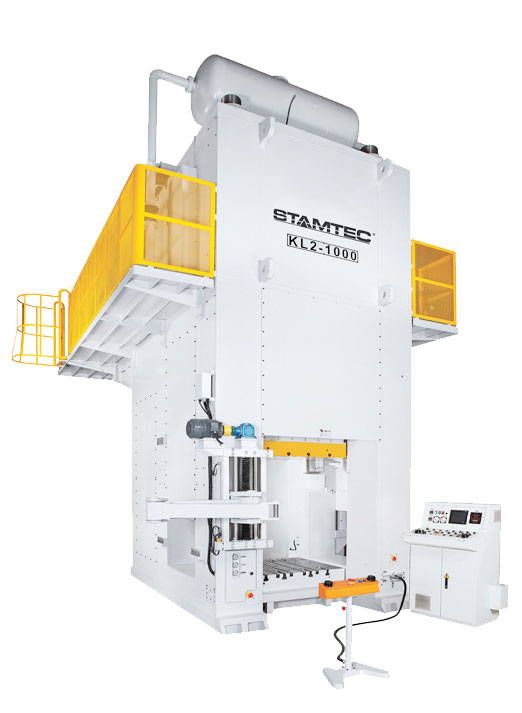

The KL2 Series provides long stroke lengths (400–600 mm), high-rated tonnage points, and stable two‑point slide guidance for long‑rod and shaft‑type components.
Model | KL2-400 | KL2-630 | KL2-800 | KL2-1000 | KL2-1200 | KL2-1600 | KL2-2000 |
Capacity (US tons) | 440 | 694 | 881 | 1102 | 1322 | 1763 | 2204 |
Stroke (in.) | 15.75 | 15.75 | 15.75 | 19.69 | 19.69 | 23.63 | 23.63 |
Speed (SPM) | 25–45 | 25–40 | 25–35 | 15–30 | 15–30 | 15–25 | 15–25 |
Download the Stamtec KL2 Series Cold Forging Presses Catalog
Series | Drive Type | Points | Tonnage Range | Best For |
LF1 | Compound‑link | 1 | 200–650 tons | Sheet‑metal cold forging, drawing, fine blanking |
KP | Knuckle‑joint | 1 | 250–2000 tons | Precision cold forging, coining, controlled penetration |
KT | Knuckle‑joint | 1 | 400–1000 tons | High‑force cold forging, deeper deformation |
KW1 | Knuckle‑joint | 1 | 300–1000 tons | Precision cold forging with long dwell |
KW2 | Knuckle‑joint | 1 | 260–1200 tons | Net‑shape blanking, coining of thicker materials |
KL2 | Knuckle‑joint link‑drive | 2 | 400–2000 tons | Long‑rod/shaft forming, large tooling, balanced load |
Best for sheet‑metal cold forging, drawing, and fine blanking of light alloys and high‑tension steels.
Ideal for precision cold forging requiring long dwell, reduced snap‑through, and controlled penetration.
Suited for deeper deformation and high‑strength materials requiring high forming force.
Best for precision cold forging and coining with long dwell and stable vertical force.
Designed for net‑shape blanking and coining of thicker materials with high precision.
Ideal for long‑rod and shaft‑type components requiring long stroke lengths and two‑point slide stability.
