Stamtec iS2 Series Direct‑Drive Servo Press

MANUFACTURER: Stamtec Inc.

STOCK STATUS: In-Stock

MORE INFORMATION:

PDF icon

Product Gallery & Description

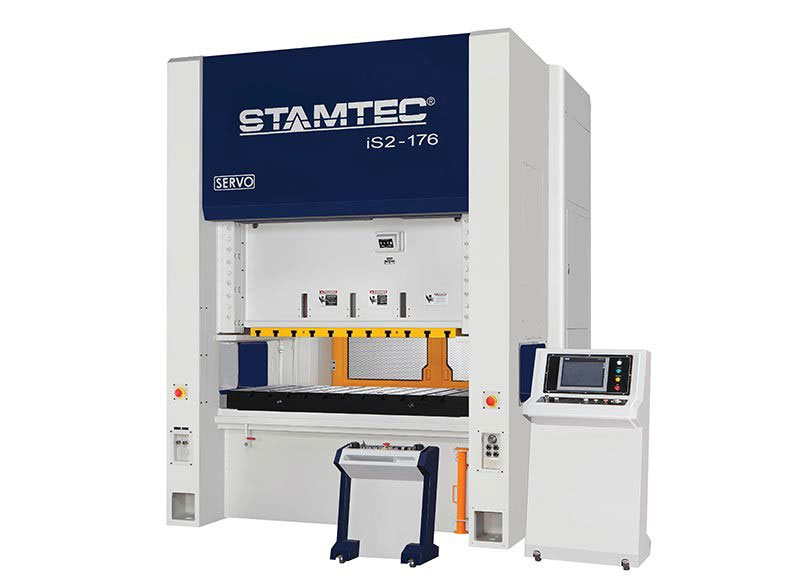

image of a Stamtec Servo‑Driven Press: iS2-176 Series
Servo‑Driven Press: iS2-176 Series
image of a Stamtec Servo‑Driven Press: iS2-176 Series
Servo‑Driven Press: iS2-176 Series

Two‑Point, Straight‑Side Servo Press for High‑Precision, High‑Flexibility Forming

The Stamtec iS2 Series is a two‑point, straight‑side, direct‑drive servo press designed for applications requiring exceptional forming flexibility, programmable motion control, and high‑precision performance. By replacing the traditional flywheel, clutch, and brake with a high‑torque, low‑RPM servo motor, the iS2 Series delivers full working energy even at slow speeds and dwell positions, enabling superior control over material flow and forming characteristics.

With its advanced servo controls, the iS2 Series supports a virtually unlimited number of stroke profiles and slide movement patterns, making it ideal for complex forming operations, high‑strength materials, and in‑die secondary processes.

Key Features & Benefits

Direct‑Drive Servo Motor System

  • High‑torque, low‑RPM servo motor
  • Full working energy available at low speeds
  • Reduced impact, vibration, and snap‑through
  • Improved part quality and extended die life

Programmable Motion Profiles

  • Up to 20 customizable motion segments
  • Adjustable slide positions, speeds, and dwell times
  • Supports advanced forming modes including:
    • Crank mode
    • Link mode
    • Coining mode
    • Fine blanking mode
    • Pulse forming
    • Swing forging
    • Pendulum mode
    • Mold heating mode
    • Feeder mode
  • Custom motion curves available upon request

Enhanced Forming Capability

  • Improved material flow due to lower slide velocity in forming zones
  • High‑speed movement through non‑forming zones for increased productivity
  • Ability to perform secondary in‑die operations such as drilling, tapping, staking, welding, and assembly

Energy Efficiency

  • No flywheel or constant‑running motor
  • Lower idle energy consumption
  • Regenerative energy system returns power to capacitor banks during upstroke

Automation‑Ready

  • Easily integrates with coil feedlines, transfer systems, robotics, and work cells
  • Supports in‑die sensing and quick die change systems
  • Ethernet connectivity and task assignment software

iS2 Series Standard Features

  • Operation modes: Off / Inch / Single‑Stroke / Continuous
  • Hydraulic overload protection (H.O.L.P.)
  • Oil recirculating lubrication system
  • Slide and die counterbalance
  • PLC‑based programmable control system
  • Electronic crank angle and SPM display
  • Touchscreen press status monitor
  • Programmable limit switch
  • Die protection
  • Digital die height indicator
  • Air ejector and air source receptacle
  • Portable two‑hand pushbutton T‑stand
  • Tooling database (100 jobs)
  • Safety block with plug

Optional Features

  • Pneumatic die cushion
  • Bolster and slide plate modifications
  • Additional PLS inputs
  • Automatic slide adjusting device
  • Safety light curtain
  • Anti‑vibration mounts
  • Die area lighting
  • Quick die change system
  • Optical linear scale
  • Tonnage monitor
  • Front/back safety doors
  • Electronic hand wheel
  • Customized forming curves

Applications

The iS2 Series is ideal for:

  • High‑precision forming
  • Deep drawing
  • Fine blanking
  • Coining
  • Warm forming
  • Multi‑stage progressive forming
  • High‑strength steel and advanced materials
  • In‑die secondary operations

iS2 Series Specifications

Model Range: iS2‑176, iS2‑220, iS2‑330, iS2‑440, iS2‑550

Category
iS2‑176
iS2‑220
iS2‑330
iS2‑440
iS2‑550
Capacity (tons)
160
200
300
400
500
Rated tonnage point (in.)
0.23
0.23
0.23
0.23
0.23
Rated tonnage point (mm)
6
6
6
6
6
Full Stroke (in. @ SPM)
8.66 @ 60
9.84 @ 50
11.81 @ 40
11.81 @ 40
13.77 @ 40
Full Stroke (mm @ SPM)
220 @ 60
250 @ 50
300 @ 40
300 @ 40
350 @ 40
Pendulum Stroke 1 (in. @ SPM)
5.15 @ 67
5.90 @ 56
7.08 @ 45
7.08 @ 45
8.26 @ 45
Pendulum Stroke 1 (mm @ SPM)
131 @ 67
150 @ 56
180 @ 45
180 @ 45
210 @ 45
Pendulum Stroke 2 (in. @ SPM)
3.34 @ 84
3.93 @ 70
4.72 @ 56
4.72 @ 56
5.51 @ 56
Pendulum Stroke 2 (mm @ SPM)
85 @ 84
100 @ 70
120 @ 56
120 @ 56
140 @ 56
Max Die Height (in.)
17.71
19.68
23.62
25.59
27.55
Max Die Height (mm)
450
500
600
650
700
Slide Adjustment (in.)
3.93
4.33
4.72
4.72
4.72
Slide Adjustment (mm)
100
110
120
120
120
Slide Area (in.)
64×23
76×27
90×33
94×43
94×43
Slide Area (mm)
1650×600
1950×700
2300×850
2400×1100
2400×1100
Bolster Area (in.)
76×31
88×35
102×43
106×47
106×51
Bolster Area (mm)
1950×800
2250×900
2600×1100
2700×1200
2700×1300
Side Opening (in.)
31×15
35×17
43×21
47×23
51×25
Side Opening (mm)
800×400
900×450
1100×550
1200×600
1300×650
Bolster Thickness (in.)
6.29
6.69
7.48
7.48
7.48
Bolster Thickness (mm)
160
170
190
190
190
Max Upper Die Weight (lbs)
2,204
2,645
4,409
5,571
6,613
Max Upper Die Weight (kg)
1000
1200
2000
2500
3000
Slide Adjust Motor (kW × poles)
0.75×4
1.5×4
1.5×4
1.5×4
1.5×4
Working Height (in.)
37
39
45
47
51
Working Height (mm)
950
1000
1150
1200
1300
Air Pressure (PSI)
71
71
71
71
71
Air Pressure (kg/cm²)
5
5
5
5
5

PDF icon Download the Stamtec iS2 Series Direct‑Drive Servo Press Catalog
