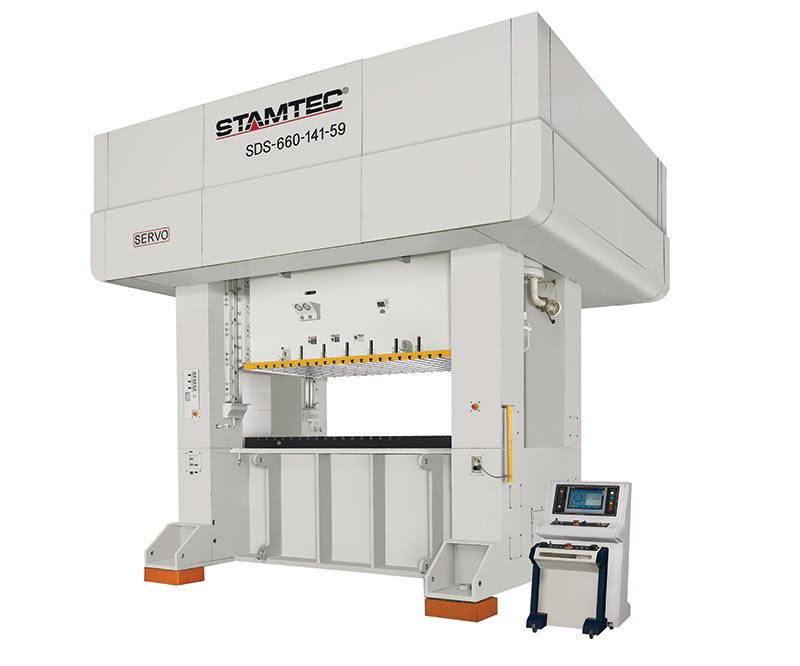

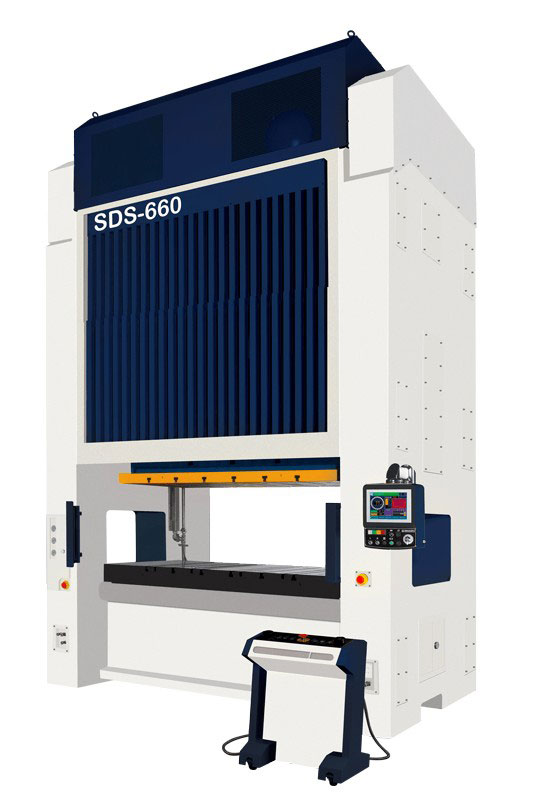

Stamtec SDS Series Servo‑Driven Press

High‑Torque Servo Drive Technology for Advanced Forming Applications

The Stamtec SDS Series Servo‑Driven Press combines a high‑torque, low‑RPM servo motor with a rigid straight‑side frame to deliver exceptional forming flexibility and precision. By replacing the traditional motor, flywheel, clutch, and brake with a direct‑drive servo system, the SDS Series provides full working energy even at low speeds, enabling superior control over slide motion and forming characteristics.

This makes the SDS Series ideal for demanding applications such as deep drawing, coining, warm‑forming, pulse forming, and the production of high‑strength or hot‑formed components.

Tonnage Range

660 – 2,400 US tons The SDS platform can also be customized for stroke, speed, rating point, and bed size to meet specific production requirements.

Key Features & Benefits

Servo Motor Drive System

• High‑torque, low‑RPM servo motor replaces mechanical drive components
• Full working energy available even at low forming speeds
• Reduced impact, vibration, and noise
• Improved part consistency and extended die life

Programmable Slide Motion

• Up to 20 programmable motion segments
• Adjustable slide positions, speeds, and dwell times
• Supports complex forming profiles and multi‑stage operations
• Enables precise control of material flow during forming

Versatile Forming Capability

The SDS Series can perform multiple processes within a single press, including:

• Blanking
• Drawing
• Coining
• Warm‑forming
• Pulse forming
• Custom motion cycles for specialized applications

Automation‑Ready Design

• Compatible with coil feedlines, transfer systems, and robotic automation
• Supports in‑die sensing and quick die change systems
• Suitable for high‑volume and high‑precision production environments

Example Model: SDS4‑2750

The video in the gallery demonstrates a representative configuration within the SDS Series demonstrates the system’s capability for large, high‑strength components.

SDS4‑2750 Specifications

• Capacity: 2,750 US tons
• Maximum Stroke Length: 23.98 in
• Speed Range: 1–20 SPM
• Bed Size: 181 in × 98 in
• Application: Hot‑formed automotive components requiring controlled motion and high forming energy

This model illustrates the SDS Series’ ability to handle advanced materials and complex forming requirements.

Customization Options

The SDS Series can be configured to meet a wide range of production needs, including:

• Stroke length
• Continuous and intermittent speed ranges
• Rating point (BDC)
• Bed and slide dimensions
• Window openings
• Slide adjustment
• Integration with peripheral equipment

These options allow the SDS platform to be tailored for both standard and highly specialized forming applications.

Compatible Options & Accessories

• Press mounts
• Light curtains
• Tonnage monitoring
• Quick die change systems
• Coil handling and feeding equipment

These accessories support efficient operation and seamless integration into automated press lines.

Applications

The SDS Series is well‑suited for:

• Hot‑formed automotive components
• High‑strength steel forming
• Deep‑drawn parts
• Precision coining
• Multi‑stage progressive forming
• Complex geometries requiring custom motion profiles
