Overview
The Wintriss WPC Apex is a dual-microprocessor clutch/brake control for part revolution mechanical power presses. It combines a large color touchscreen, an internal brake monitor, die protection inputs and a programmable limit switch in one control, and it meets ANSI B11.1-2009 (R2020) and OSHA 1910.217.
Key Features
- Dual-microprocessor safety
- Two independent microprocessors control the clutch and brake.
- Color touchscreen

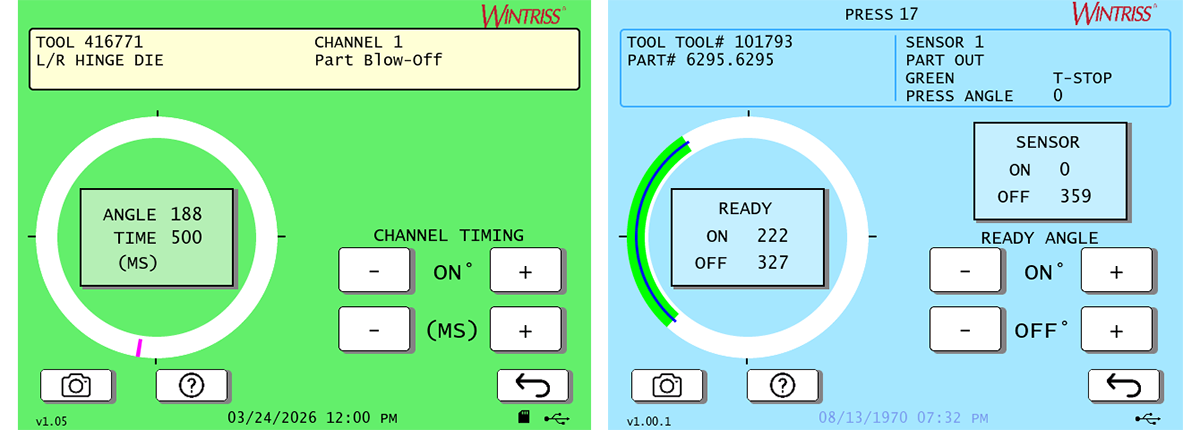

- A large color touchscreen with on-screen help for every screen and a crank-angle clock that shows crankshaft position.
- Internal brake monitor
- Checks press stopping performance continuously.
- Four die protection inputs
- Red, yellow and green inputs monitor part ejection, feed, material buckle and more.
- 8-output programmable limit switch
- Times ancillary equipment from the control.
- Tool memory
- Stores 50 tool setups as standard, with 500 optional.
- Operator stations and light curtains
- Connects up to 4 operator stations and up to 4 sets of Wintriss Shadow light curtains.
Product Line / Models
Two mounting versions and a range of options:
- Panel mount – For installation in an existing press control cabinet.
- Enclosure version – A complete control in its own enclosure.
- Optional operating modes – Foot switch, one-hand control, external trip, continuous-on-demand and bar modes, plus micro-inch capability.
- Optional auxiliary E-stop relay outputs – Stop, or prevent from starting, up to three auxiliary devices.
Applications & Benefits
- Control retrofits: Bring an older mechanical press up to ANSI B11.1-2009 (R2020) and OSHA 1910.217 requirements.
- Point-of-operation guarding: Works with up to four sets of Shadow light curtains.
- Die protection built in: Four die protection inputs catch misfeeds and ejection faults without a separate unit.
- Setup and tracking: Tool setups, stroke, good part and total hit counters with presets.
How to Choose the Right Wintriss WPC Apex Setup
- Confirm the press is a part revolution mechanical power press.
- Choose panel mount for an existing cabinet or the enclosure version.
- Count the operator stations and light curtain sets you need (up to 4 each).
- List the operating modes you run, such as foot switch, one-hand control or continuous-on-demand.
- Decide whether you need 500 tool setups or auxiliary E-stop relay outputs.
Why the Wintriss WPC Apex Is Trusted
- Standards compliance: Meets CSA C22.2, UL 508:2024, OSHA 1910.217 and ANSI B11.1-2009 (R2020).
- Built-in self-checks: Cross-checked user interlocks and an internal brake monitor.
- Wintriss press control family: Pairs with Wintriss Shadow light curtains and die protection sensors.
Downloads & Resources
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Press make, model and tonnage
- Clutch/brake type and current control
- Number of operator stations and light curtains
- Operating modes you need
- Panel mount or enclosure
- Contact PRI to discuss specs, lead times, and installation support.
