High‑Efficiency Horizontal Decoiling for Faster, Safer Coil Handling

PRI offers Accra‑Wire Controls (AWC) pallet decoilers designed to eliminate the wasted time, material damage, and safety risks associated with traditional upending and mandrel‑loading. These powered systems allow operators to run coils exactly as they arrive on the pallet—no flipping, no wrestling, no edge damage.

For stamping, roll forming, and wire‑forming operations, pallet decoilers are one of the fastest ways to reduce downtime and keep production moving.

Why Choose a Powered Pallet Decoiler?

AWC pallet decoilers are engineered to streamline coil handling and improve overall equipment efficiency. Key advantages include:

• Up to 90% faster changeovers — dramatically reduce press idle time
• Safer operation — no manual lifting or coil manipulation
• Less material damage — eliminates edge scuffing and clockspringing
• Better floor‑space utilization — run multiple coils directly from a pallet
• Simple loading — forklift places pallet directly on the decoiler
• Ideal for delicate materials — excellent for thin, narrow, or easily damaged stock

These systems are equally effective for heavier materials when paired with the appropriate options.

How It Works

The pallet decoiler accepts the coil on the same skid it ships on and unrolls it horizontally into a feeder, straightener, or forming line. The material remains controlled, tension stays consistent, and the line stays fed without interruption.

It’s a simple, efficient, and highly repeatable process—ideal for high‑volume production environments.

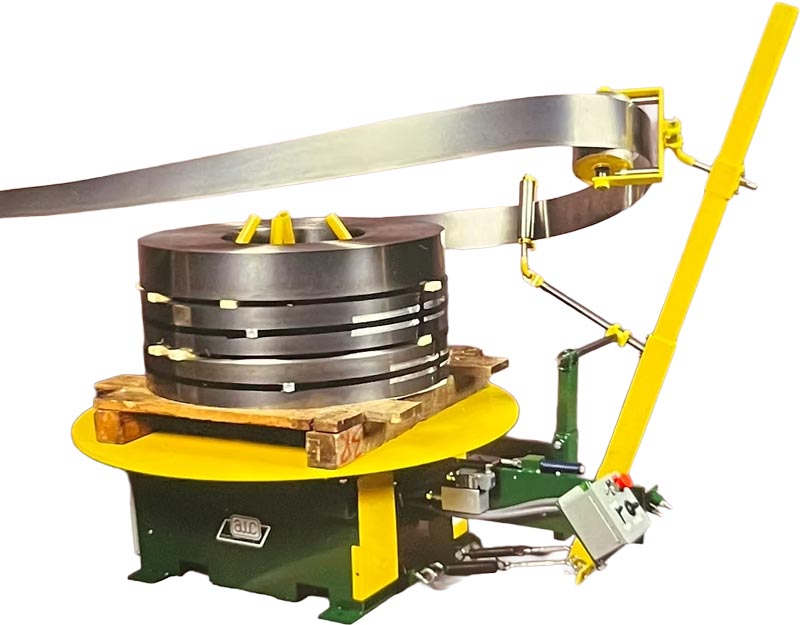

Accra‑Flex F‑Series Pallet Decoilers

F‑100 | F‑200 | F‑300 | F‑400 | F‑500

The Accra‑Flex series is designed for fast adjustment, easy threading, and smooth payout of pancake or oscillated wound coils. These units integrate seamlessly into press lines, roll formers, and slide‑forming applications.

Standard Features

• No slack loop required
• AWC tension‑control system for consistent payout
• Simple table‑rotation switch
• Regenerative DC or AC drive (model‑dependent)
• Clutch‑free design for low maintenance
• Fully adjustable guide rollers
• Safety‑focused table‑stem centering system

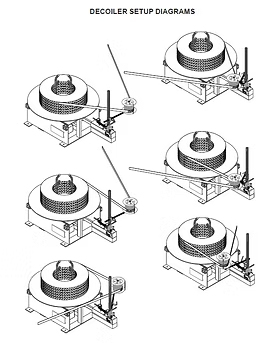

Application Options

• Accra‑Loop Advantage — ideal for high‑speed roll forming or short feed lengths
• Accra‑Flex Advantage — simple, durable, and extremely operator‑friendly
• Classic Series — optimized for heavier materials while retaining all AWC benefits

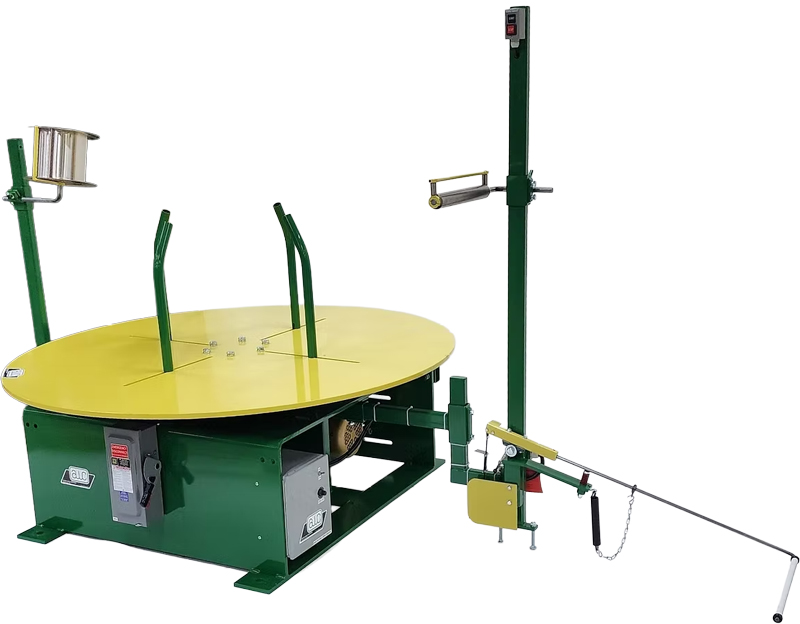

Acrra-Loop Decoiler Loop

Optional Accessories

• Coil Containment System — controls clockspringing for heavy‑gauge steel
• Pneumatic Tension Control — replaces springs for materials 0.100" and thicker
• Plane Turner — compresses heavy‑gauge steel to reduce footprint
• Centering Devices — stems, sleeves, I.D. spreaders, and heavy‑duty centering systems

F‑Series Specifications

Performance varies by material; AWC may require samples for verification.

Ideal Applications

• Stamping and forming lines
• Roll‑forming operations
• Slide‑forming equipment
• High‑volume coil‑change environments
• Facilities handling delicate or narrow materials

Why PRI Recommends Accra‑Wire Controls

Accra‑Wire Controls is known for rugged construction, operator‑focused design, and long‑term reliability. PRI partners with AWC to provide pallet decoilers that reduce downtime, improve safety, and deliver consistent material flow across a wide range of applications.
