Colt Coil Reels (Uncoilers)

Light‑, Medium‑, and Heavy‑Duty Coil Reels for Precision Press Feeding

Colt Coil Reels are engineered for strength, durability, and smooth material payout across a wide range of coil weights and widths. Available in light‑, medium‑, and heavy‑duty configurations, these uncoilers support everything from small 1,000 lb coils to massive 60,000 lb loads.

With options for drag brakes, air brakes, or powered variable‑speed drives, Colt reels integrate seamlessly into modern press feed lines and deliver consistent, controlled coil payout with minimal operator intervention.

Automatic loop control and controlled acceleration/deceleration help maintain steady material flow, reduce shock loads, and extend equipment life.

Light‑Duty Coil Reels

Capacity: Up to 1,500 lb

Designed for smaller coils and lighter‑gauge materials, Colt Light‑Duty Reels offer a compact, economical solution for low‑to‑moderate production environments. Available in single or double‑mandrel configurations.

Key Features

• 1,000–1,500 lb capacity
• Adjustable drag brake or optional motorized drive
• Optional loop sensing for speed control

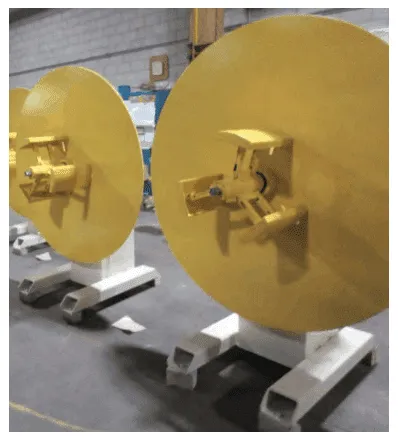

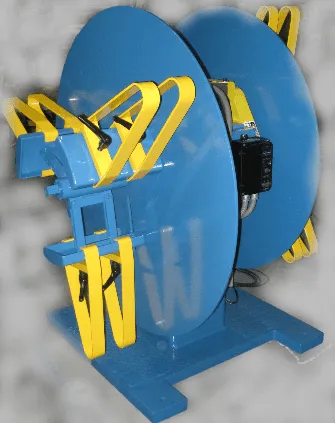

• Single (CSC / CMSC) or duplex (CDSC / CDM) models
• 48" max coil OD
• Mandrel expansion: 15.5"–20.5"

Model Specifications

Medium‑Duty Coil Reels

Capacity: 2,500–6,000 lb

Colt Medium‑Duty Reels are built for higher production demands and heavier coils. Available in powered or non‑powered versions with air braking or variable‑speed DC drives.

Key Features

• Up to 6,000 lb capacity
• 6"–36" coil width
• 60" standard OD (72" optional)
• Air brake or powered DC drive
• Automatic loop control

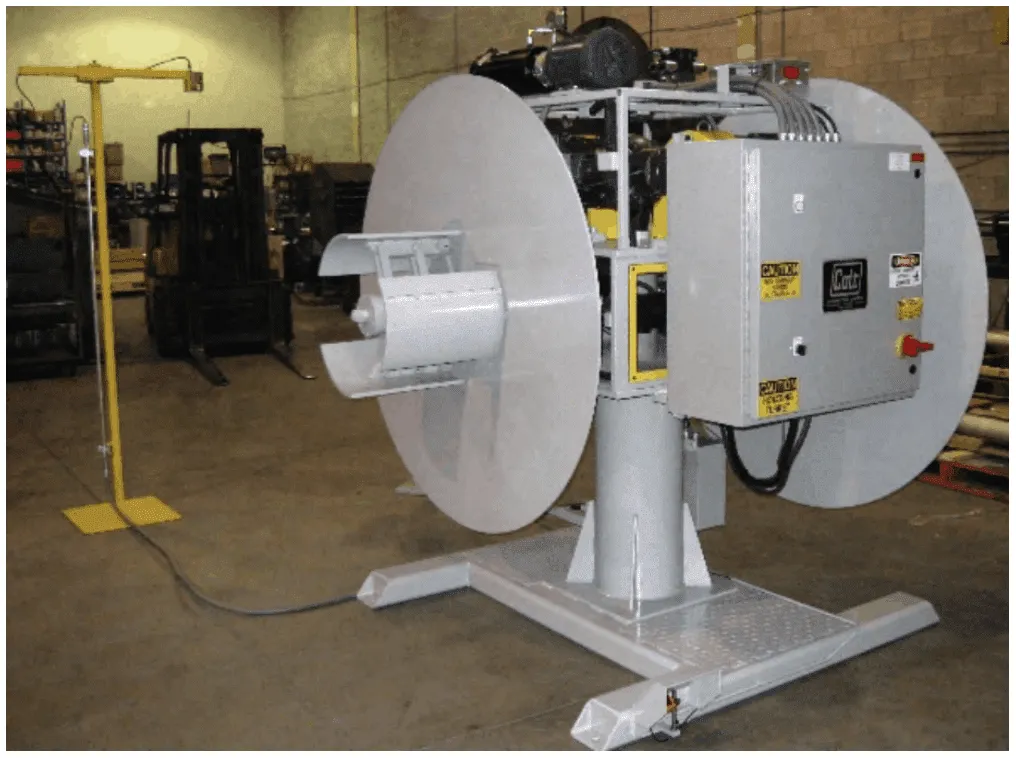

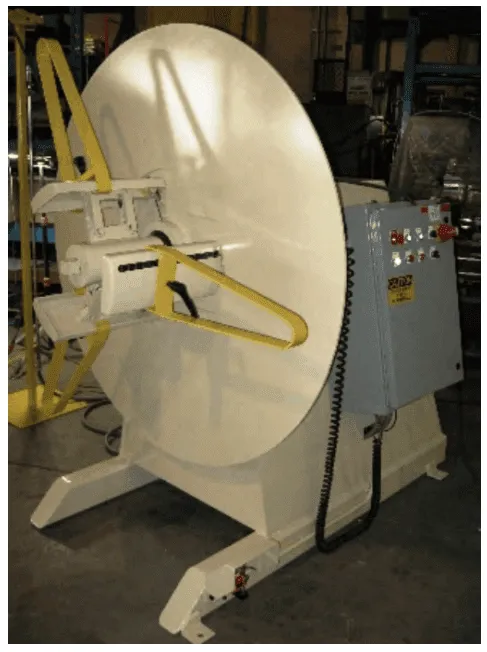

• Single (CR) or duplex (CRD) models

Model Specifications

Heavy‑Duty Coil Reels

Capacity: 8,000–60,000 lb

Colt Heavy‑Duty Reels are engineered for large, high‑mass coils used in demanding stamping environments. These units offer exceptional rigidity, smooth payout, and precise loop control.

Key Features & Specifications

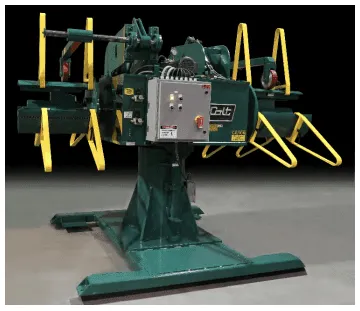

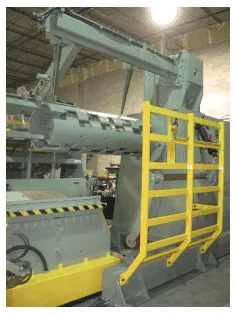

• Single (CHDR) or duplex (CHDRD) models
• 8,000–60,000 lb capacity
• 12"–84" coil width
• 72" max OD
• Powered or non‑powered with air braking
• Controlled acceleration/deceleration
• Automatic loop control

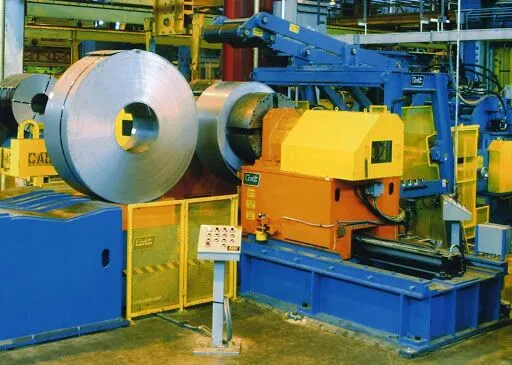

Extra Heavy‑Duty Double‑Mandrel Reels

Capacity: Up to 80,000 lb

For the largest and most demanding coil applications, Colt offers double‑mandrel uncoilers capable of handling extreme loads.

Specifications

• Max weight: 80,000 lb
• Width range: 6"–84"
• Designed for continuous, high‑load industrial environments

Optional Features

• Automatic loop control
• Air braking systems
• Variable‑speed DC drives
• Full feed‑line automation packages
• Custom mandrel widths and expansion ranges

Ideal Applications

• Automotive stamping
• Heavy‑gauge steel processing
• High‑volume coil feeding lines
• Large‑format press operations
• Multi‑shift production environments

Why PRI Carries Colt Reels

Colt Automation has a long-standing reputation for rugged construction, smooth coil payout, and reliable long-term performance. As a distributor and integration partner, PRI selects Colt reels because they complement our feed-line solutions and deliver dependable coil-handling performance across a wide range of applications. Colt’s engineering quality aligns with PRI’s commitment to supplying durable, high‑value equipment to our customers.
