Colt Powered Straighteners

Engineered for High‑Strength Steel, Precision Coil Processing, and Long‑Life Performance

Colt Automation straighteners are built for demanding coil processing environments where accuracy, durability, and uptime matter. With models ranging from light‑duty to extra heavy‑duty, Colt delivers consistent straightening performance across widths from 6" to 84" and material types including AHSS, HSLA, dual‑phase, coated, perforated, and marking‑sensitive stock.

Overview

Colt straighteners are designed around a rugged mechanical foundation and advanced control technology. Every model shares a common engineering philosophy: maximize roll rigidity, minimize deflection, and maintain stable, repeatable material flow.

Core construction features include:

• Solid, heavy‑wall frame design
• Full outboard roll support for all straightener rolls
• 52100 aviation‑grade roll steel hardened to RC 60/64
• Large roll journals and hardened, zero‑backlash gears
• Entry and exit pinch rolls with counterbalanced “weightless” adjustment
• Satin or chrome‑flash roll finishes available
• Absolute encoders on each straightener roll
• Catenary support and material detection sensors
• Bauer motors with long service life (up to 40 years)

These design elements ensure stable processing of thin, delicate materials as well as high‑strength steels with minimal roll deformation.

Technology & Automation

Colt integrates modern drive and control systems to improve line efficiency and reduce wear:

• Variable Frequency Drives with Ethernet/IP for seamless communication
• Laser loop sensor integration enabling constant‑speed operation
• Reduced start/stop cycling, extending drive component life
• Optional full automation for complete feed‑line integration

Engineering Advantages

Colt’s straighteners are built to withstand the stresses of modern high‑strength materials. Their design includes:

• Wider side plates for rigidity
• Larger roll journals for stability
• Hardened gears and dual‑drive options
• Flash‑chromed pinch rolls for maximum traction
• Generous service factors to prevent roll deformation
• Large‑radius machined transitions to reduce fatigue and shear points

This results in longer equipment life, reduced downtime, and consistent straightening quality

Benefits & Options

• Full automation options for complete feed‑line integration
• Stronger construction for reduced maintenance
• Multiple roll configurations (7–13+)
• Processing range from .020" to over .600"

Material Compatibility

Colt straighteners are suitable for:

• AHSS (Advanced High‑Strength Steel)
• HSLA (High‑Strength Low‑Alloy)
• Dual‑Phase Steels
• Cold‑Rolled Steel
• Coated, painted, perforated, and sensitive materials

Model Categories & Capabilities

Note: Models marked with * are available in AHSS versions capable of processing over 1200 MPa high‑strength steel.

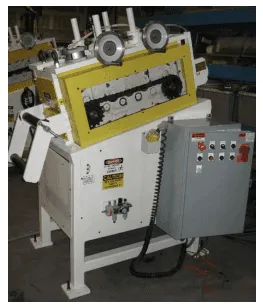

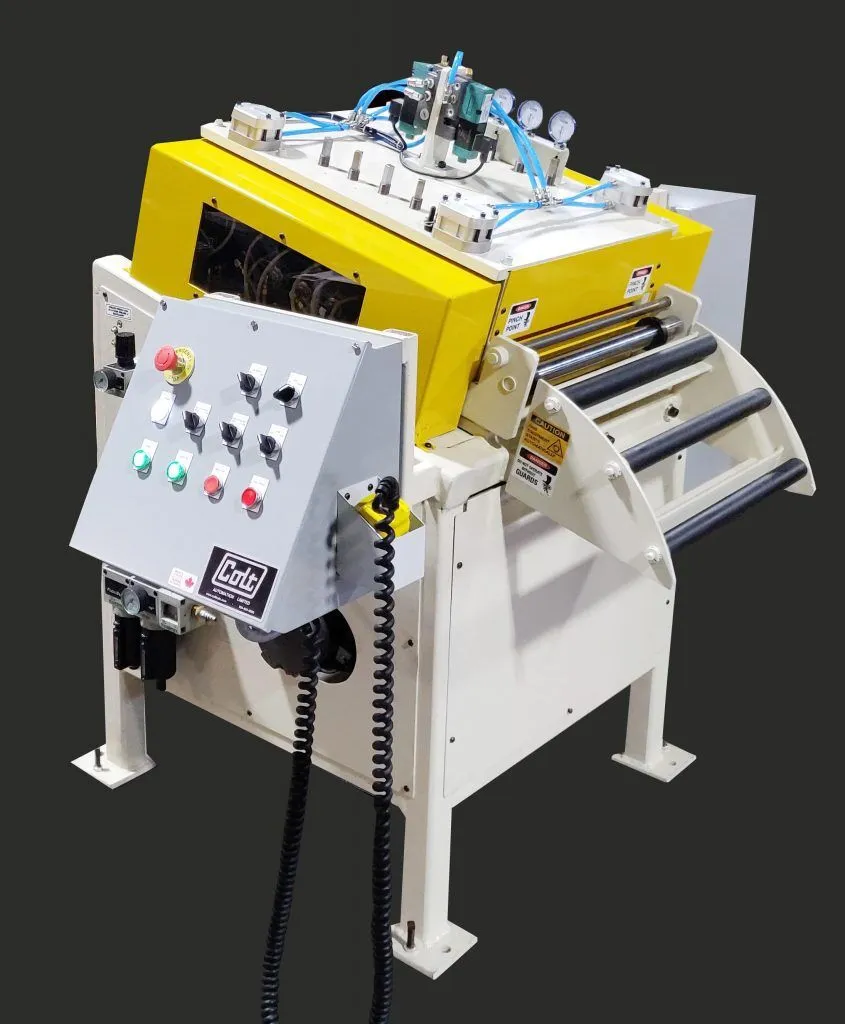

Light‑Duty Powered Straighteners

Designed for thin materials and marking‑sensitive stock.

• Widths: 6"–48"
• Roll diameters: 2.5"–4"
• Configurations: 5–13 rolls depending on model
• Minimum thickness: .020"
• Ideal for aluminum, coated, perforated, and painted materials

Models: CPSL / CPSLA, CPSL A, CPS 2*

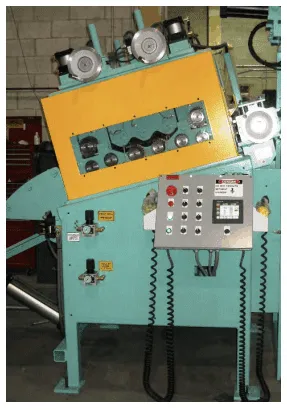

Medium‑Duty Powered Straighteners

For wider coils and moderate thickness ranges.

• Widths: 6"–72"
• Pinch roll diameter: 5"
• Straightener roll diameter: 4"
• Configurations: 7, 9, 11, or 13 rolls
• Minimum thickness: .020"

Models: CPSEHIJ1* and CPSEHIJ2*

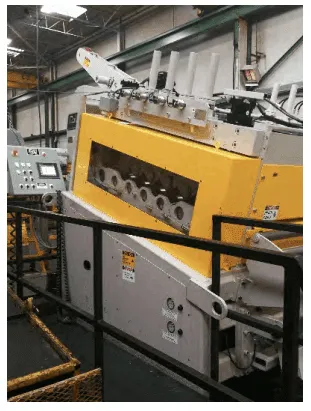

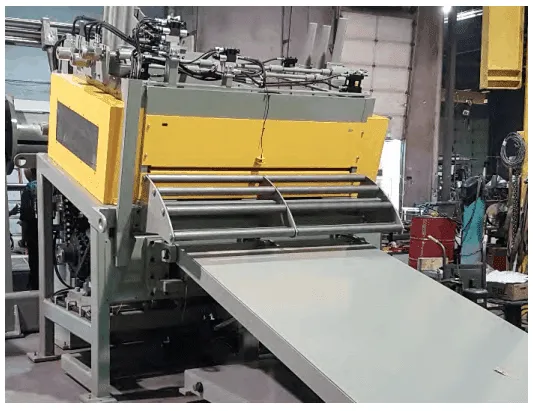

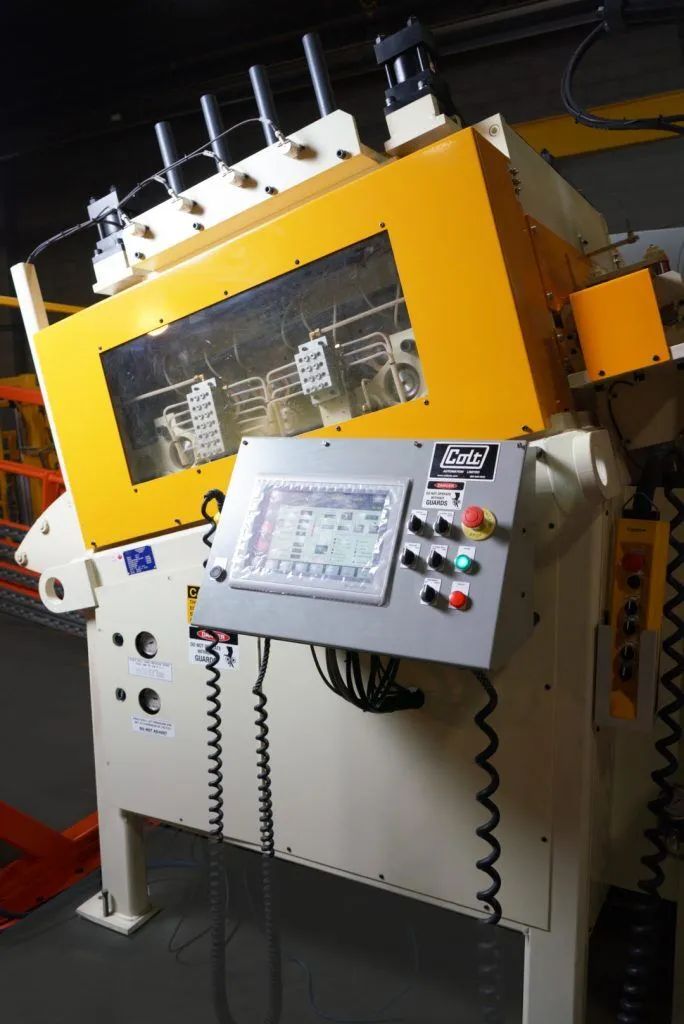

Heavy‑Duty Powered Straighteners

Built for high‑strength steels and wider coil widths.

• Widths: 6"–84"
• Pinch roll diameter: 6"
• Straightener roll diameter: 5"
• Configurations: 7, 9, 11 rolls
• Minimum thickness: .020"

Models: CPSEHIJ1* and CPSEHIJ2*

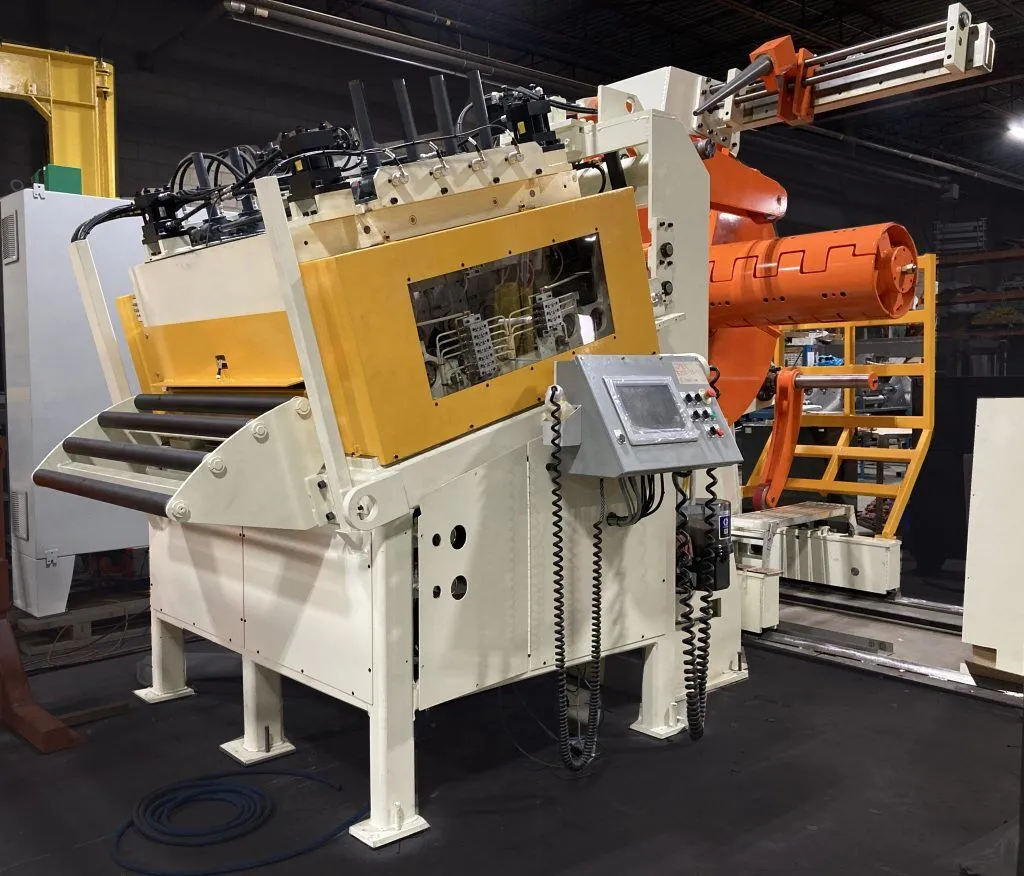

Extra Heavy‑Duty (AHSS) Straighteners

Engineered for advanced high‑strength steels over 1200 MPa.

Extra heavy‑duty models include triple actuators, wider gear faces, and multiple backup rolls for deflection control

• Triple‑actuator design
• Wider, hardened gear faces
• Multiple backup rolls to prevent deflection
• Widths: 6"–84"
• Straightener roll diameter: 5"
• Configurations: 7, 9, 11 rolls
• Minimum thickness: .020"

Model: CPSEHIJ3

Colt Straighteners — Combined Model Specification Table

All Models:

Roll material: 52100 RC 60/64

Minimum roll thickness: 6"

Minimum material thickness: .020"

Counter Balance: 2
