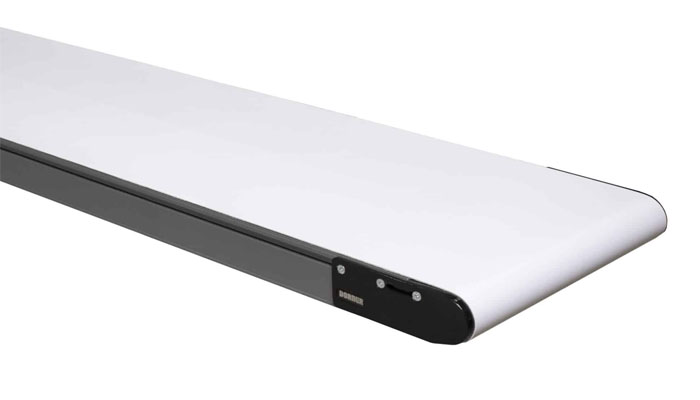

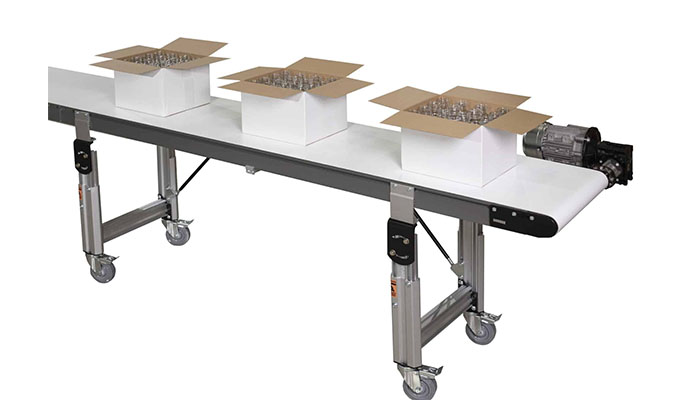

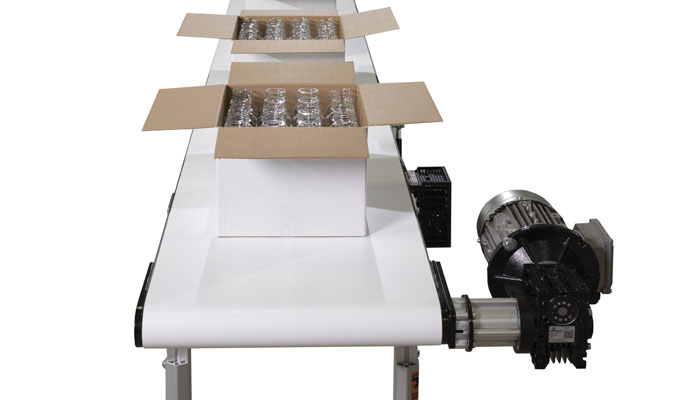

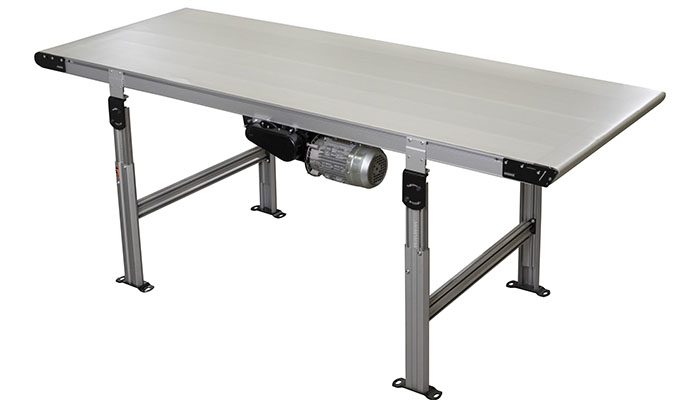

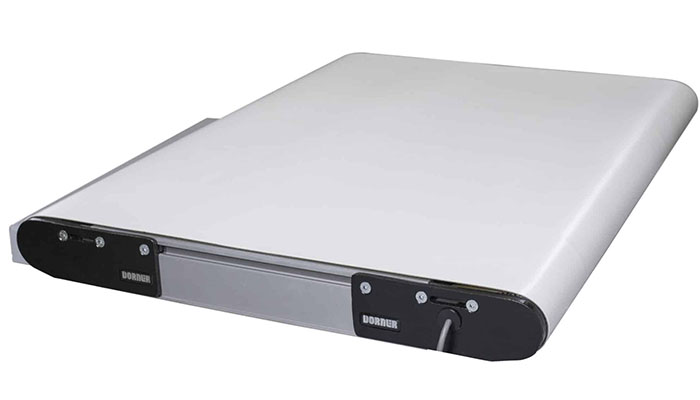

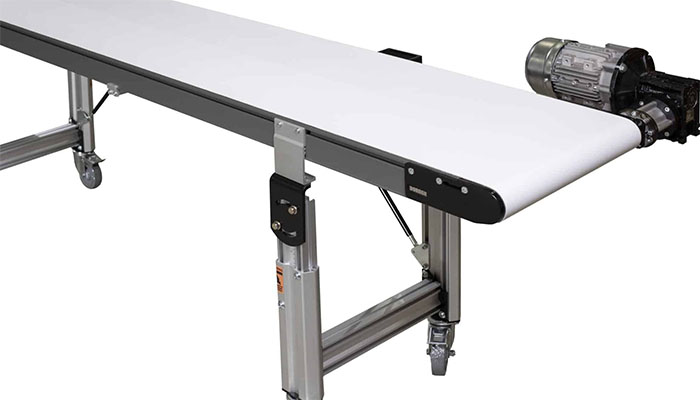

The Dorner 2700 Series Medium Duty Conveyor is designed for medium-load conveyance in eCommerce, logistics, and industrial automation. With increased weight capacity, wider belt options, and precision belt tracking, it’s ideal for AGV/AMR integration and compact installations. Its lightweight aluminum frame supports heavier payloads without compromising mobility or footprint.
Conveyor Series | 2700 Series |
Belt Type | Flat Belt |
Available Drive Configurations | Flat Belt End Drive, Cleated Belt End Drive, Center Drive, iDrive and Gravity Roller models; Optional common drive also avaialble |
Widths Available | 8″ (203 mm) – 36″ (914 mm) in 2″ increments |
Lengths Available | 20″ (508 mm) – 24′ (7,315 mm) |
Load Capacity | Up to 150 lbs (68 kg) |
Speed Range | Up to 400 ft/min (122 m/min) |
Drive Shaft | 15 mm integral drive shaft, with topional auxiliary shaft locations |
Drive / Pulley Diameter | 2.4″ (60 mm) |
Driver / Idler Pulley Belt Wrap | ~7.4″ (189 mm) of belt per revolution |

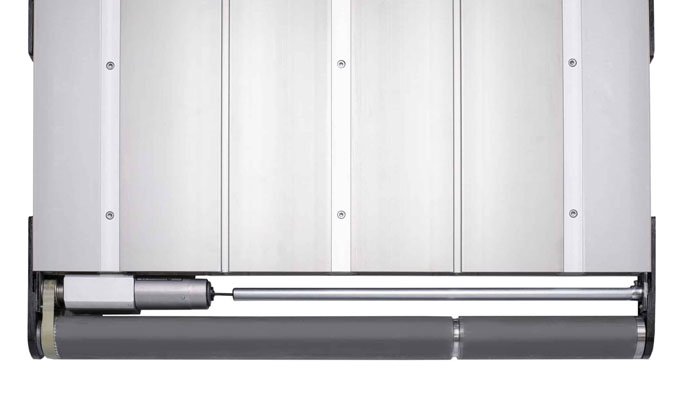

Frame / Bedplate | V-groove bedplate, guided belt underside loads |

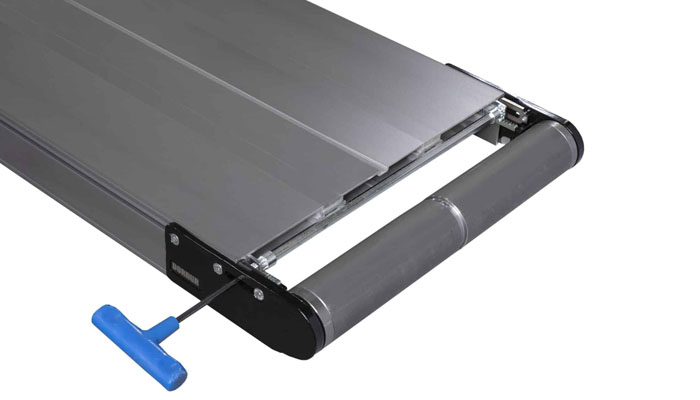

Alternative Tracking Option | Cam tracking on non V-guided versions |
Motor Type | Continuous Duty 24V DC gearmotor |
Certifications | CE Models Available |
Accessories | Belting Profiles Support Stands Gearmotors Drive Mounting Packages Adjustable Guiding Systems |
