Heavy-Duty Conveyors for high load, high speed, and long run applications
Overview
The Dorner 3200 Series Conveyor is built for demanding industrial environments requiring high speeds, long runs, and precision part handling. With multiple platform options—including Belted, Modular Belt, Precision Move, and Intralox ARB™—the 3200 Series offers unmatched flexibility for packaging, assembly, and material routing. Its rugged frame, advanced belt tracking, and low-maintenance design make it ideal for continuous-duty operations.
Key Features
- Heavy-Duty Performance: Supports high speeds and long conveyor runs with minimal maintenance.
- Modular Platform Options: Choose from Belted, Modular Belt, Precision Move, or ARB™ configurations.
- Industry-Leading V-Guiding: Ensures positive belt tracking under side loads and high-speed conditions.
- Quick Belt Change Design: Modular and spliced belts reduce downtime during maintenance.
- Rack & Pinion Belt Tensioning: Provides precise control and easy adjustments.
- Sealed-for-Life Bearings: Reduce maintenance and extend operational life.
Flexibility and Performance
- Multiple drive styles: Flat Belt End Drive, Cleated Belt End Drive, Center Drive, and iDrive® internal drive options
- Wide range of widths and lengths for flexible layouts
- Capable of handling high loads at high speeds in long conveyors
- Can be configured with nose bars, Z-frame, and special belts to suit specific routing needs
Robust & Reliable Design
- V-guided belt tracking to maintain belt stability under side loads
- Rack & pinion belt tensioning for precise adjustment
- Sealed for life bearings reduce maintenance downtime
- Modular belts and spliced standard belts allow fast replacement and reduced downtime
Available Models

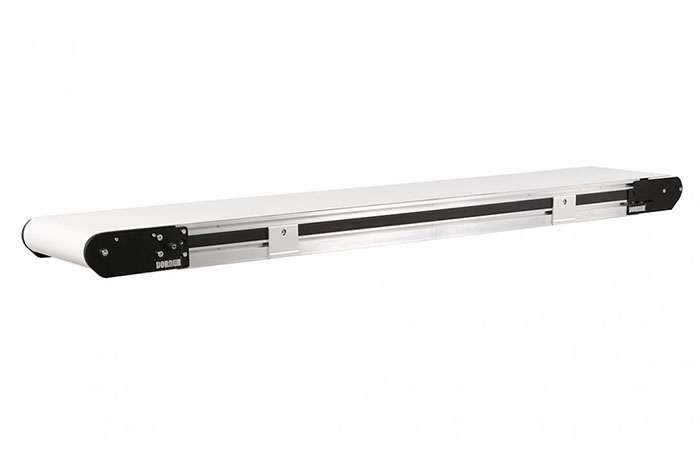

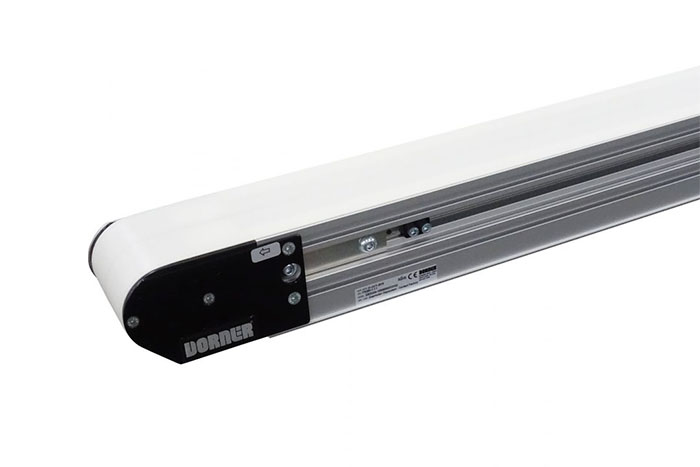

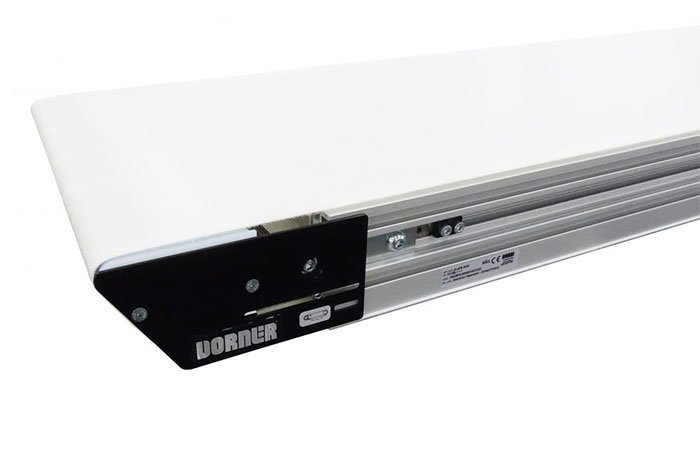

Dorner 32000 Series Belted COnveyor Specifications
| |
| Flat, cleated, sidewall, rib top belts; modular belt options available |
| V-guided frame, universal T-slots for mounting accessories |
| 3.75 in (95 mm) up to 48 in (1,219 mm) (wider widths may be available) |
Conveyor Lengths Available | From 30 in (762 mm) up to 99 ft (30,175 mm) (range depends on drive style) |
| Up to 1,000 lbs (455 kg) for flat belt end drive versions; |
| E.g. center drive version: 6 in (152 mm) diameter drive pulley, 16 in (406 mm) of belt take up |
Applications
- High throughput production lines
- Packaging and palletizing systems
- Long distance part transfers
- Accumulation or buffering in material handling
- Automated assembly / integration
- Incline or decline routing (Z frames)
- Mainline conveying in manufacturing or distribution
Accessories
- Nose bars, guide rails, sensors
- Stand / support systems and mounting packages
- Cleated belts, sidewall belts, rib top belts
- Gearmotor packages and drive options
- Accessories compatible with T-slot frame
- Engineering drawings, detailed manuals, service parts
- CAD Configurator via D-Tools
