Designed for high throughput logistics, e-commerce, and material handling in tight layouts
Overview

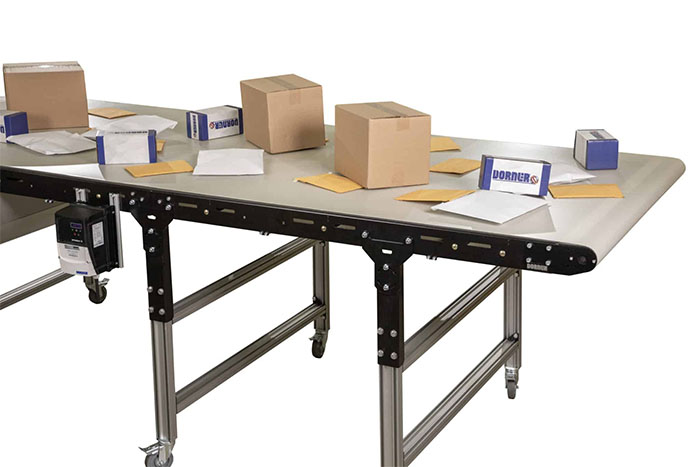

The DCMove Belted Conveyor is a robust, cost-competitive conveyor built for heavy duty package flow, distribution, and material handling systems. It features a painted steel frame, internally mounted drive options to reduce footprint, and flush side frames to maximize usable belt width. Its design suits high-volume logistics, packaging, and warehouse applications.
DCMove Belted Conveyors are ideal for:
- Distribution center product sortation & package handling
- Packaging & palletizing operations
- Material handling / general conveyance
- Automated & manual assembly / packaging lines
- Applications with limited space (flush sides, internal drive)
- High throughput systems requiring durability
Benefits & Features
- Painted steel construction offers strength, cost efficiency, and durability for handling heavier loads in industrial settings Dorner Conveyors+1

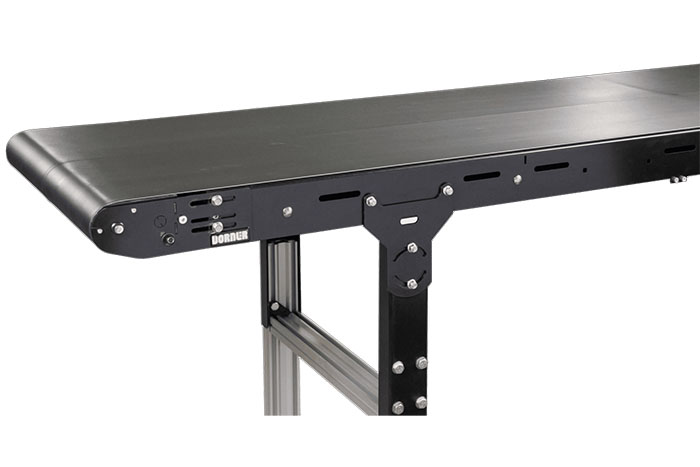

- Flush side frame design—all bearings and components are internal, minimizing protrusions and allowing tighter layouts Dorner Conveyors+2Dorner Conveyors+2
- V-guide belt tracking combined with rack & pinion belt tensioning gives stable tracking even under side loads Dorner Conveyors+2Columbus McKinnon Media Portal+2
- Internal drive motor options (motor mounted in tails) reduce footprint and allow mounting in constrained areas Dorner Conveyors+2Dorner Conveyors+2
- Sealed-for-life internal bearings for low maintenance Dorner Conveyors+2Dorner Conveyors+2
- Flat or cleated belt options for variable handling needs Dorner Conveyors+1

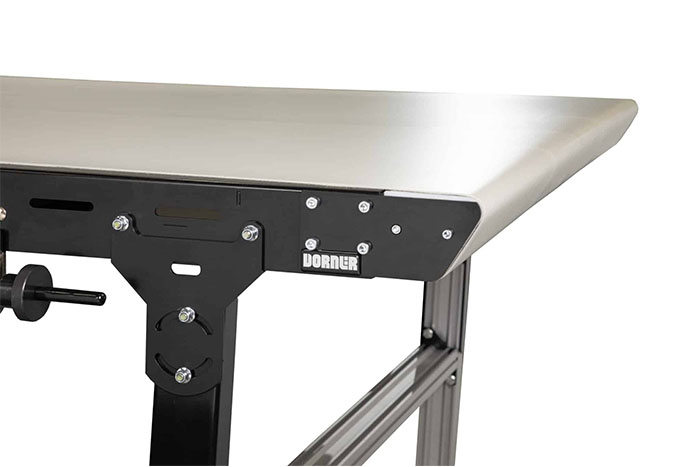

- Optional 32 mm (1.25 in) nose bar at idler end for improved small package transfers
Dorner DCMove Belted COnveyor Specifications
| |
| Flat, cleated, sidewall, rib top belts; modular belt options available |
| V-guided frame, universal T-slots for mounting accessories |
| 3.75 in (95 mm) up to 48 in (1,219 mm) (wider widths may be available) |
Conveyor Lengths Available | From 30 in (762 mm) up to 99 ft (30,175 mm) (range depends on drive style) |
| Up to 1,000 lbs (455 kg) for flat belt end drive versions; |
| E.g. center drive version: 6 in (152 mm) diameter drive pulley, 16 in (406 mm) of belt take up |
Applications & Use Cases
- High throughput distribution and fulfillment centers
- Package sorting and routing modules
- Palletizing / de-palletizing lines
- Printer, labeler, scanner integration
- Packaging and inspection stations
- Conveyance in compact layouts (flush side, internal drive)
- Mixed product / variable size handling
Accessories & Options
- Support stands (fixed height, short stands, outriggers) Dorner Conveyors+2Dorner Conveyors+2
- Brackets & mounting kits (tabletop brackets, photo-eye brackets) Dorner Conveyors
- Belting (flat, cleated, specialty belts) and splicing options (finger splice, plastic / metal clipper) Dorner Conveyors+2Columbus McKinnon Media Portal+2

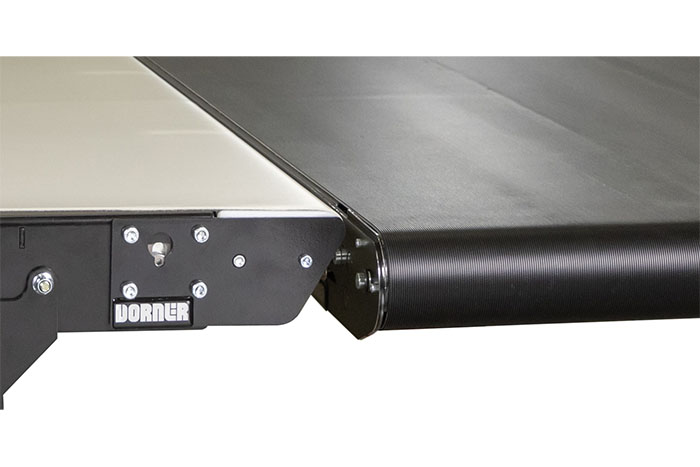

- Nose bar tail option (32 mm) for precise small package transfer Dorner Conveyors+2Columbus McKinnon Media Portal+2

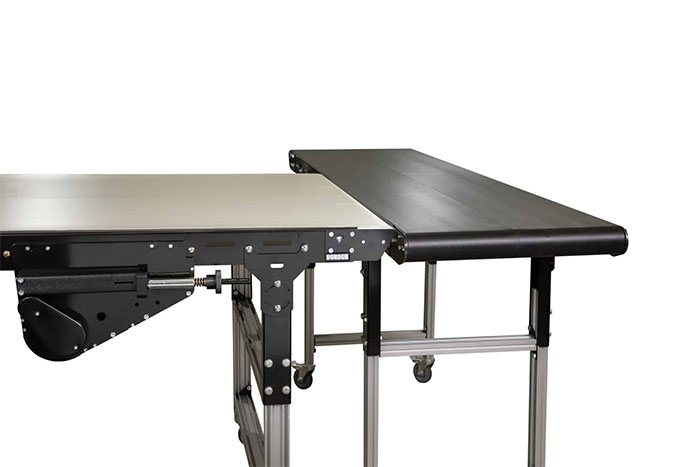

- Gearmotor mounting packages and motors (end drive, center drive, iDrive) Dorner Conveyors+2Columbus McKinnon Media Portal+2
- Drive shaft position / auxiliary shafts for accessory mounting Dorner Conveyors
