Overview

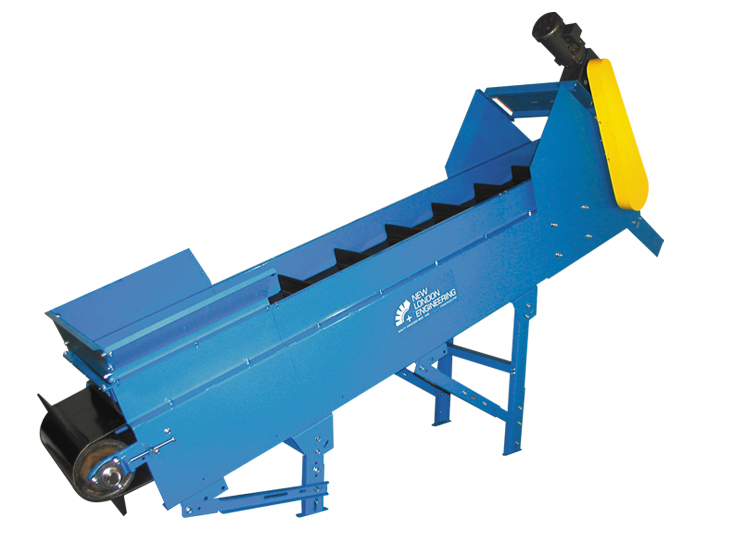

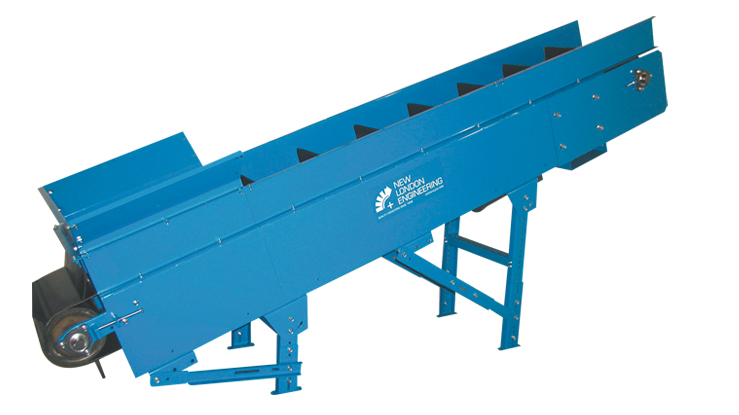

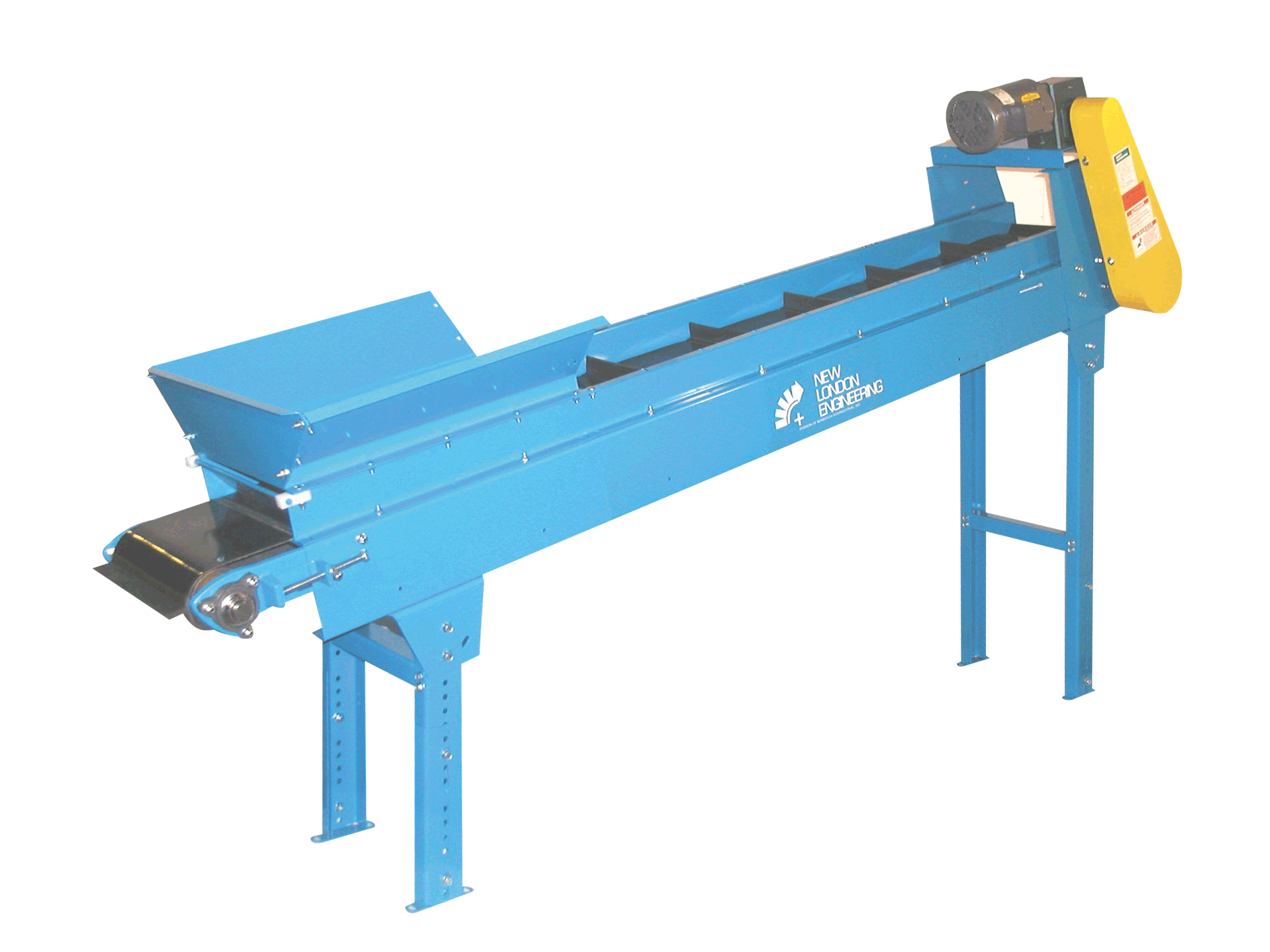

New London Engineering inclined conveyors use cleated belts to carry loose, unpacked items such as plastic parts, nuts and bolts and stampings from a horizontal position up an incline. Inclines are available from 0° to 75°. Four models cover widths from 4" to 48": the standard-duty 500, medium-duty 505, heavy-duty 506 and V-guided 351. PRI supplies New London Engineering inclined conveyors alongside the rest of the NLE line.
Key Features
- Cleated belts
- Black PVC 120 belts carry 1-1/2" high cleats on the 500 and 351, and 3" high cleats on 12" centers on the 505 and 506.
- Inclines to 75°
- Inclines are available from 0° to 75°. The 500 and 351 can be used in both horizontal and inclined applications.
- Side rails and bottom pan included
- Each base unit includes side rails and a bottom pan; the 505 and 506 have 6" high side rails. Infeed hoppers are optional, and a wide selection of side rails and hoppers keeps product contained.
- Choice of drive locations
- Drive locations can be chosen so the conveyor fits a wide array of openings. The standard drive is top mounted on the right side.
- Heavy 13" frame
- The 505 and 506 are built on a 13" deep, 10-gauge frame with a large drive pulley and 8" infeed pulley, made to withstand heavy usage.
- Belt options
- A wide variety of belt options is available to maximize product throughput.
Product Line / Models
New London Engineering inclined conveyor models and standard specifications (all 60 FPM standard speed, 230/460/3/60 TEFC motor):
- Model 500 Standard Duty – widths 4" to 30", lengths up to 20' in 6" increments, 1/3 HP, black PVC 120 belt with 1-1/2" high cleats, 6-5/8" deep x 12 ga frame, 1-3/16" pulley shafts. For lighter, smaller products like empty plastic bottles or cans, bottle caps, screws, scrap lumber, nuts and bolts and small stampings.
- Model 505 Medium Duty – widths 12" to 48", lengths 5' to 25' in 6" increments, 3/4 HP, 3" high cleats on 12" centers, 13" deep x 10 ga frame, 1-7/16" drive pulley shaft, 8" infeed pulley, 6" high side rails, grease-sealed bearings. Moves larger and heavier products up inclines.
- Model 506 Heavy Duty – the heavy drive shaft Model 505: 1-11/16" drive pulley shaft, widths 12" to 48", lengths 5' to 25', 3/4 HP, 3" high cleats on 12" centers, 13" deep x 10 ga frame, 6" high side rails.
- Model 351 Standard Duty V-Guided – widths 4" to 24", lengths up to 20' in 6" increments, 1/3 HP, "A" section V-guided black PVC 120 belt with 1-1/2" high cleats on 12" centers, 6-5/8" deep x 12 ga frame. For narrow, shorter run, inclined V-guided applications.
Applications & Benefits
- Stampings and fasteners: Cleated belts carry small stampings, screws and nuts and bolts up an incline.
- Plastic parts, bottles and caps: The 500 conveys plastic parts, empty plastic bottles or cans and bottle caps.
- Scrap lumber: NLE lists scrap lumber among typical Model 500 loads.
- Larger, heavier products: The 505 and 506, with 3" cleats and 6" side rails, move larger and heavier products up inclines.
- Narrow V-guided runs: The 351 fits narrow, shorter run inclined applications.
How to Choose the Right New London Engineering Inclined Conveyor
- Size the product: smaller, lighter items on the 500 or 351; larger, heavier products on the 505 or 506.
- Set the width: 4" to 30" (500), 4" to 24" (351) or 12" to 48" (505, 506).
- Set the length: up to 20' for the 500 and 351, 5' to 25' for the 505 and 506.
- Set the incline angle, 0° to 75°, and the drive location that fits the opening.
- For the heaviest service, choose the 506 with its heavier 1-11/16" drive shaft.
- Add an infeed hopper or discharge chute as needed.
Why New London Engineering Inclined Conveyors Are Trusted
- Quality conveyors since 1948: New London Engineering of New London, Wisconsin has built conveyors since 1948 and describes its line as American made and American engineered.
- Built for heavy usage: NLE builds the 505 and 506 as sturdy, solid conveyors made to last and withstand heavy usage.
- Four models, one family: Standard, medium, heavy and V-guided models cover 4" to 48" widths with cleated PVC 120 belts.
Contact & Ordering
Need help picking the right model or getting a quote? Provide these details:
- Parts being conveyed: type, size and weight
- Required throughput
- Incline angle and discharge height
- Belt width and conveyor length
- Hopper, side rail or chute needs
- Drive location and available power
- Contact PRI to discuss specs, lead times, and installation support.
